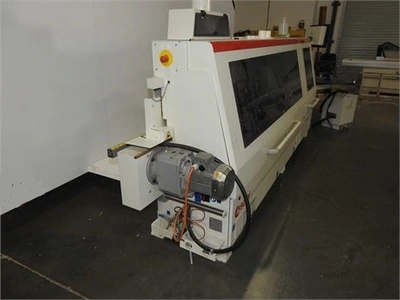

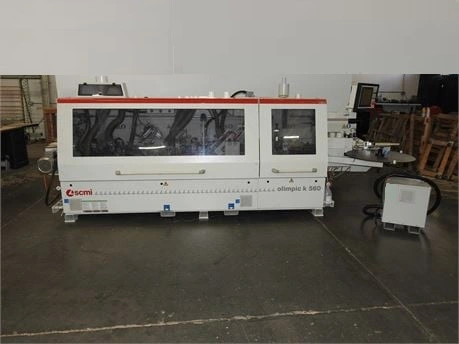

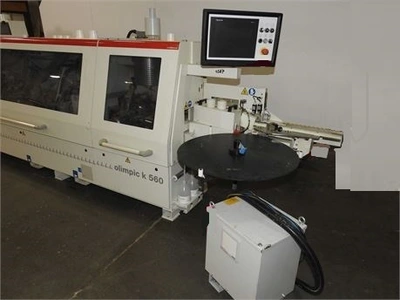

2016 SCM Olimpic K560 HP/ERT Edgebander

2016 K 560 HP/ERT – Single Sided Edgebander
230 volt 3 phase 81 amp
Automatic single sided edgebander designed to be used for edgebanding straight vertical profiles with coiled material (veneer and PVC) and with strips (high-pressure laminate and solid wood) with a maximum thickness of 8mm.
Edgebanding thickness: .4mm – 8mm (.016-5/16”)
Guillotine capacity: 3mm
Feed speed: 40/60 ft/min.
Panel height: 3/8” min – 2 1/8” max
Minimum panel length: 5 1/2”
Minimum panel width: 2 3/8”
Minimum distance between panels: 20”
The machine comes equipped with an anti adhesive unit positioned prior to the pre milling unit.
It prevents the build up of glue on the top and bottom of the panel.
The unit comes with two independent nozzles and a tank of anti adhesive liquid.
Teflon coated glue pot to facilitate glue changeover. Warm up time is approximately eight to ten minutes.
The unit is also equipped with a quick disconnect plug for changing from one pot to another.
Pneumatic locking of the glue roller at the end of the panel to prevent any excess glue on the trailing edge of the panel.
There are a total of four pressure rollers for pressing the banding to the workpiece edge.
The first roller is powered and is also Teflon coated to prevent the banding material from slipping.
The three idle rollers have opposing one-degree tilt to provide extra pressure along the top and bottom edge.
The machine comes standard with an automatic strip magazine. Comes standard with servo driven positioning that requires no manual intervention from the operator.
The glue pot is Teflon coated and has a 5.5lb. capacity. Comes equipped with a quick change feature that allows the operator to remove the glue pot in less than two minutes.
Air heating unit with electronic control of the temperature
Air blower head, applied before the first edge pressure roller
Device for ther temperature control applied on the air blower head which allows a constant melting temperature control of the functional edge layer
opening and closing adjustment of the head bores when varying the edge thickness. It is carried out in a single operation together with the top edge guide
The spraymist device for the edge cooling positioned to the end of the edge pressure roller prevents the adhesion of the chips on the tools and improves the panel finishing (Riepe liquid LP289/99)
The air blower on the edge is activated only when the panel is present, in this way the compressed air consumption is optimised.
The device is compatible with the standard gluing systems for EVA and PU glue.
PP,ABS e PMMA with 0,2 mm functional layer
Preglued edge with specific glue for the working with hot air melting
15 m/min working speed with 30 mm edge height (working speed and edge height depend on the features of the used edge)
65 mm maximum edge height
13mm edge thickness distance between panels according to the working speed and panel height
10,5 kW installed motor power
1300 Nl/min compressed air consumption during machining
15 min heating time
