| Swing | 24" | 609.6 mm |
| Centers | 120" | 3,048 mm |
| Spindle Bore | 4.125" | 104.77 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 1,200 RPM | 1,200 RPM |
| Swing Over Cross Slide | 14.125" | 358.77 mm |
| Dimensions | R-L 180, F-B 72, Height 60 | R-L 180, F-B 72, Height 60 |
| Weight | 16200 | 16200 |
Specifications (Subject to buyer verification):
Swing 24”
Swing over Cross Slide 14.125”
Centers: 100”
Spindle Bore: 4.125”
RPM: 1200 RPM
Power: 20hp
Dimensions: R-L 180”, F-B 72’’ X Height 60”
Weight: 16,200 Lbs
Swing over the Bed: 24"
Swing over the Cross Slide:14.125"
Swing In Gap:35"
Distance between Centers:100"
Width of Bed:22"
Chuck Size:18” 3 Jaw
Spindle Nose:D1-11
Spindle Bore:4-1/16"
Speeds Range (16): 8-1,200 RPM
Metric Threads (31):1-14 mm
Inch Threads (70):2-28 TPI
Taper in Tailstock:MT-6
Quill Diameter:4"
Quill Travel:8"

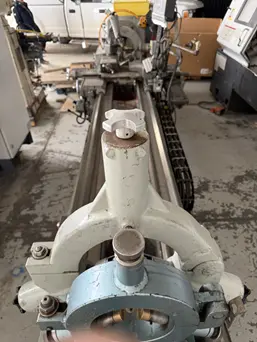

Steady Rest Roller Type: 9" Capacity
Main Motor:20 HP
Taper Attachment: Yes
Coolant Pans & Pump: Yes
Rapid Traverse: Yes
