| Swing | 25" | 635 mm |
| Centers | 160" | 4,064 mm |
| Spindle Bore | 3.125" | 79.375 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 1,000 RPM | 1,000 RPM |
| Swing Over Cross Slide | 13.875" | 352.42 mm |
| Dimensions | 240" x 54" | 240" x 54" |
| Weight | 7,600 lbs | 7,600 lbs |
Specifications (subject to buyer verification):
Swing over bed: 25”
Swing over cross slide: 13.875″
Swing in gap: 34.5”
Max distance between centers: 160”
Bed width: 18”
Spindle bore: 3.125″
Spindle nose: D1-8 camlock
Tailstock taper: MT#5

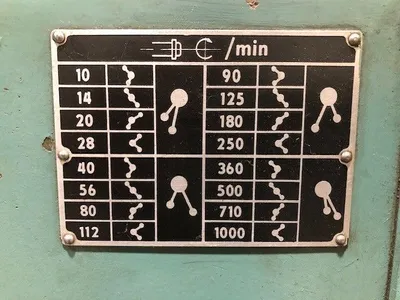

Spindle speeds: 10 - 1,000 RPM (16)

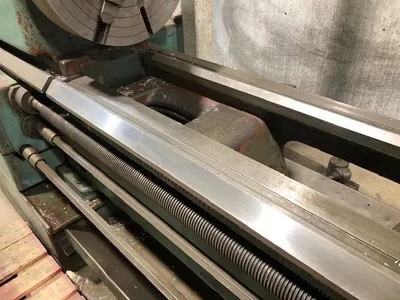

Leadscrew diameter x pitch: 2” x 4 TPI
Main motor: 10 HP
Electrics: 220/3/60
Overall dimensions (L x W): 240″ x 54″
Weight, approximately: 7,600 lbs
Equipped With (subject to buyer verification):

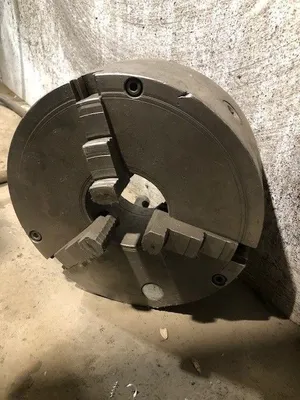

12” 3 jaw chuck with 2 sets solid jaws
18” 4 jaw chuck
Square tool post 6.5”
Taper attachment

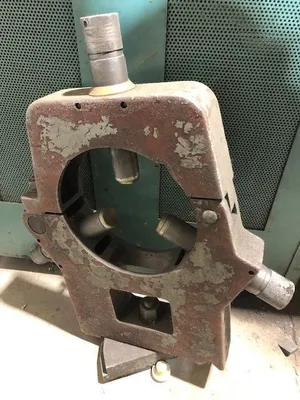

9” steady rest
Follow rest
Thread chasing dial
Chip trays
Coolant pump
