| Swing | 34" | 863.6 mm |
| Centers | 78.74" | 2,000 mm |
| Spindle Bore | 6.7" | 170.18 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 500 RPM | 500 RPM |
| Swing Over Cross Slide | 25.1" | 637.54 mm |
| Dimensions | 201.38" x 87.4" x 59.45" | 201.38" x 87.4" x 59.45" |
| Weight | 10,000kgs | 10,000kgs |
Specifications (subject to buyer verification):
Swing Over Bed: 34"
Swing Over Cross Slide: 25.10"
Center Height: 17.71"
Distance Between Centers: 78.74"
Bed Width: 22"
Coolant Pump: 1/4HP
Spindle Motor: 20HP
Spindle Bore: 6.7"
Spindle Nose: A2-11
Spindle Steps: 12 Steps
Spindle Range: 10 - 500 RPM
Cross Slide Width/Travel: 13.78" / 21.65"
Compound Rest Width/Travel: 7.87" / 14.17"
Leadscrew Diameter/Pitch: 2.35" x Pitch 2 T.P.I.
Longitudinal Rapid Traverse: 49.20"/min
Cross Rapid Traverse: 25"/min
Feed & Threading Imperial Thread: 55 Nos. 0.25-30 T.P.I
Metric Thread: 68 Nos. 1-120mm
Diametral Pitch Threads: 70 Nos. 2-120 D.P.
Module Pitch Threads: 45 Nos. 0.25-30 M.P.
Longitudinal Feeds: 0.05-6.38mm/rev.
Cross Feeds: 0.025-3.04mm/rev.
Tailstock Quill Travel/Taper: 9.84" / MT #6
Machine Dimensions: 201.38" x 87.4" x 59.45"
Machine Weight (net): 10,000 kgs
Machine Weight (gross): 11,000 kgs
Packing Dimensions: 206" x 90" x 88"
Equipped With (subject to buyer verification):

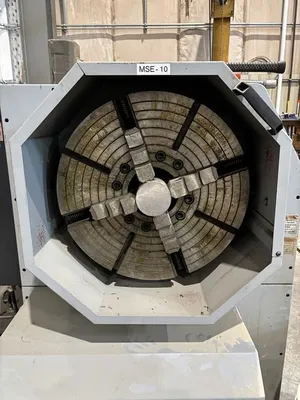

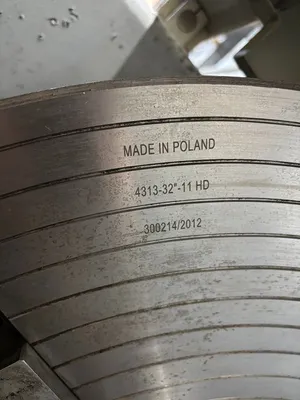

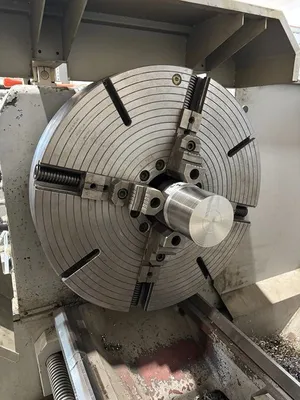

32" Bison 4-Jaw Chuck (Front)

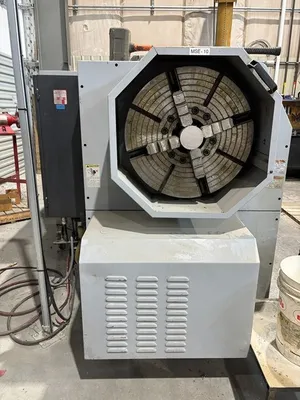

24" 4-Jaw Chuck (Rear)

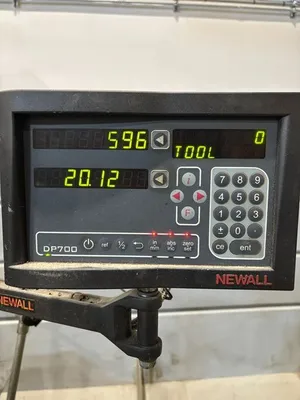

Newall DRO

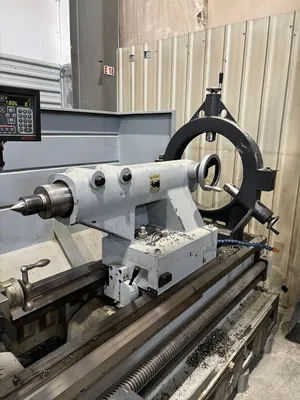

Tailstock
Splash Guard
Rapid Traverse
