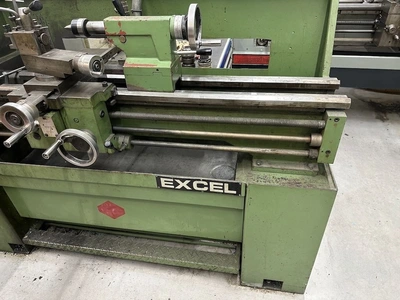

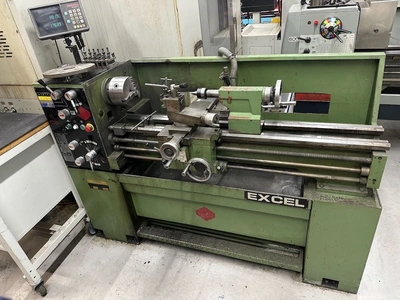

EXCEL 1440 GF Centre Lathe – Geared-Head 14" × 40"

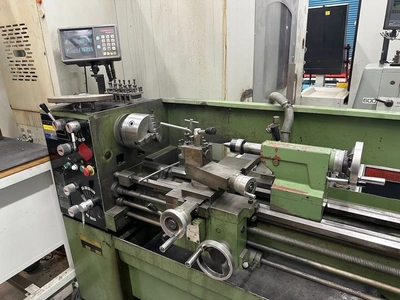

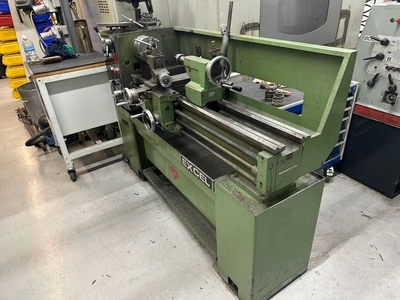

Well-maintained EXCEL 1440 GF geared-head centre lathe, ideal for general engineering, toolroom work and precision turning. This popular 14" × 40" machine offers a 356 mm swing over bed and 1,000 mm between centres, providing excellent capacity for a wide range of components.
| Swing | 14" | 355.6 mm |
| Centers | 40" | 1,016 mm |
| Spindle Bore | 1.5" | 38.1 mm |
| Power | 2 hp | 1.5 kW |
| RPM | 70 RPM | 70 RPM |
| Swing Over Cross Slide | 8" | 203.2 mm |
| Dimensions | 1900 x 750 x 1200 mm | 1900 x 750 x 1200 mm |
| Weight | 900 kg | 900 kg |
EXCEL 1440 GF Centre Lathe – Typical Specifications
General
Machine type: Geared-head centre lathe
Size class: 14" × 40" lathe

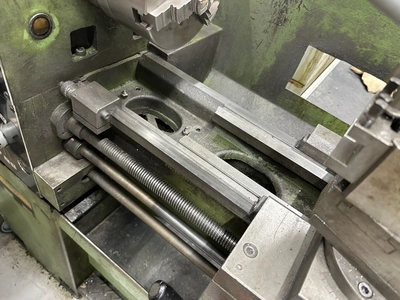

Capacity
Swing over bed: 356 mm (14")
Swing over cross slide: approx. 210 mm (8–8¼")
Swing in gap: approx. 500 mm (20")
Distance between centres: 1,000 mm (40")

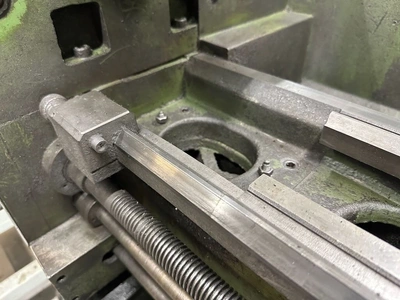

Bed width: approx. 260–270 mm

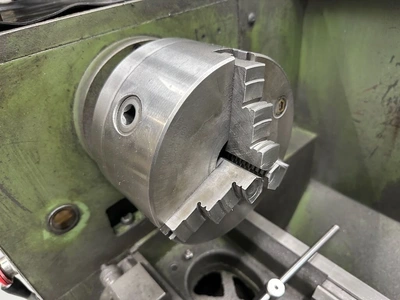

Spindle
Spindle bore: approx. 40 mm (1.5")
Spindle nose: D1-4 camlock
Spindle taper: MT-5

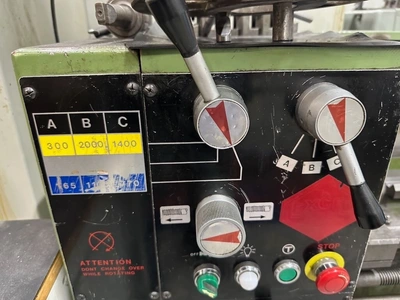

Number of speeds: typically 8–16 speeds
Speed range: approx. 70–2,000 rpm

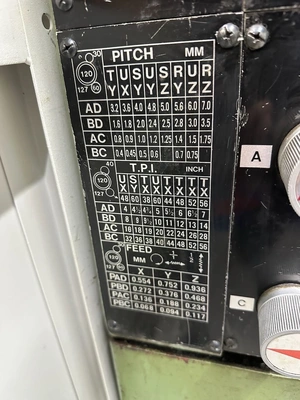

Feeds & Threading
Metric thread range: approx. 0.45–10 mm pitch
Imperial thread range: approx. 4–80 TPI
Longitudinal feed range: approx. 0.067–1.0 mm/rev
Cross feed range: approx. 0.018–0.27 mm/rev

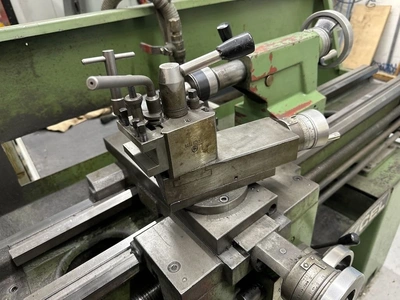

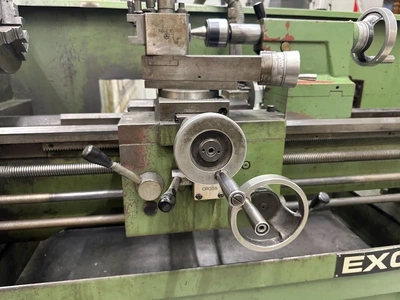

Slides & Tailstock
Cross slide travel: approx. 160 mm
Compound slide travel: approx. 65–70 mm

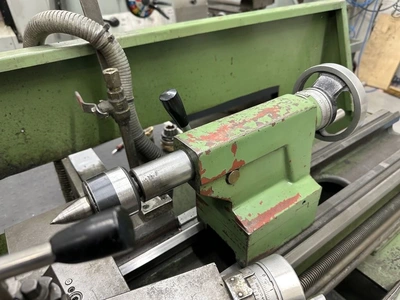

Tailstock taper: MT-3
Tailstock quill travel: approx. 95 mm
Motor & Dimensions
Main motor: approx. 2–4 HP (model dependent)
Machine weight: approx. 900–1,000 kg
Overall size: approx. 1,900 × 750 × 1,200 mm
