USED 2013 HANWHA STL32H

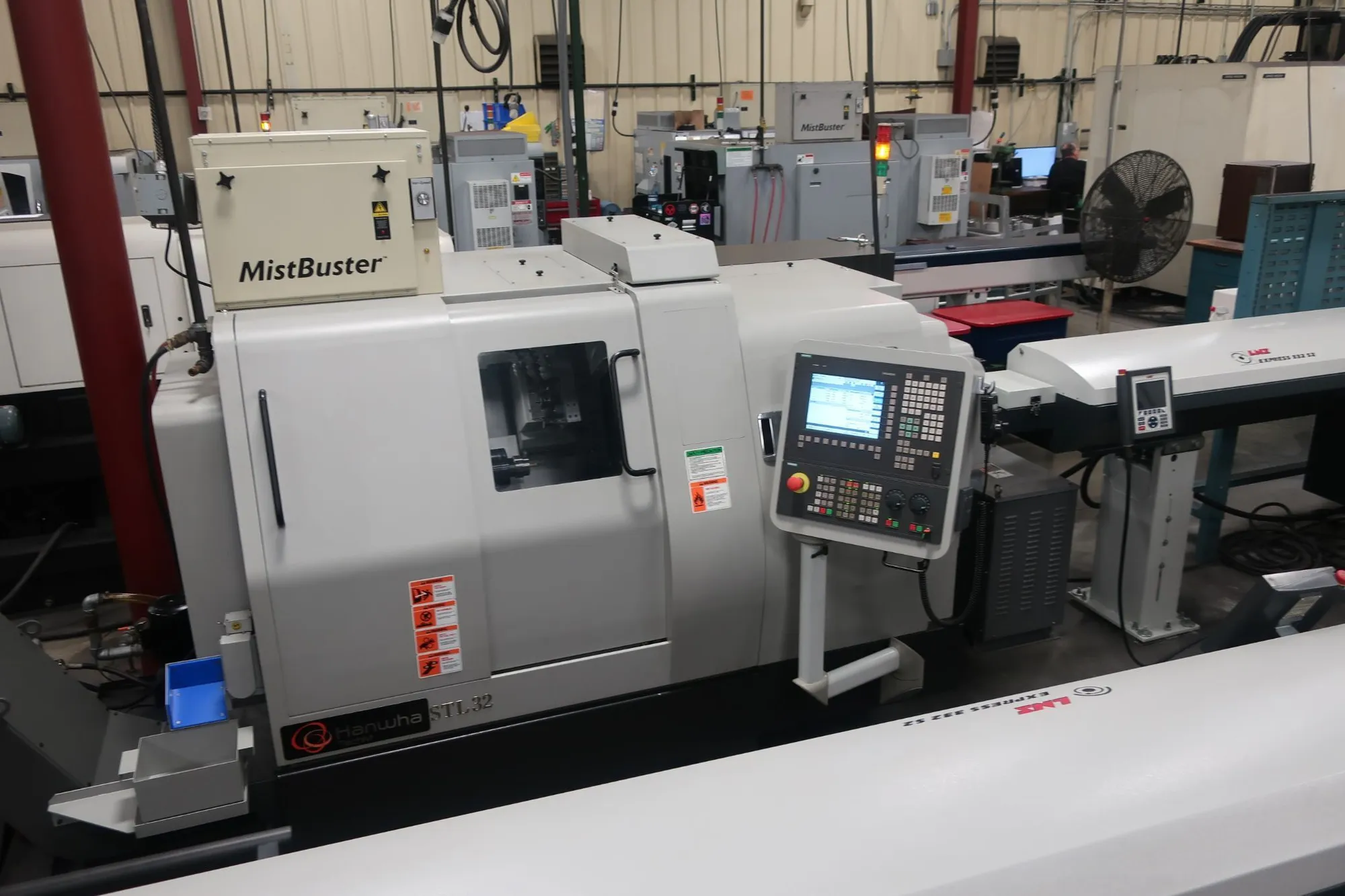

Hanwha STL32H CNC Swiss Lathe, New in 2013
Y3-Axis Capability with 4 Live Backworking Spindles

General Specifications:
Axes: X1, X2, X3, Y1, Y2, Y3, Z1, Z2, Z3
Machining Diameter: 1.25" (32mm)
Z1 Stroke: 12.59" (320mm)
Main/Sub Spindle Speed: 8,000 RPM
Main/Sub Spindle Motor: 30 HP

Number of Tools
OD: 5 (16mm) / 4 (ER20M)
Cross Drill (Tools/Speed/Motor): 10 Station / 6,000 RPM / 3.7 HP
Turret: 30 Tools (ER20) (VDI 30)
Back Tools: 8 (4 Fixed / 4 Driven, ER20M)
Back Tool Speed: 6,000 RPM
Back Tool Motor

Voltage: 3 Phase 220-240 / 380-415 VAC

Machine Dimensions: 123" x 73" x 70"
Machine Weight: 9,900 lbs

Machine Hours:
2500-3000 Hours - Run Time
4000 Hours - Power On
(This is Estimated, battery power was lost in 2022)

Siemens 840D CNC Control
LNS Express 332 S2 12' Magazine Barfeed
Mist Buster Mist Collector
Chip Conveyor
Parts Catcher
Parts Conveyor

Tooling List:
Live and Static Tooling
(Holders only, no cutting tools included)
Main Spindle:
(5) Turning Tool positions for 16mm square shank
(4) Live Radial Milling Tool positions for ER-16 collets

Turret:
T1= (3) Drill Holder 25mm shank 17.3025LXTSTL32H(mm)
T2= Live Milling Face Tool Holder (ER-20) 80.3020LSTL32H
T3= Open
T4= (2) Live Milling Radial Tool Holder (ER-20) 40.3020Z50STL32H
T5= (1) Live Milling Radial Tool Holder (ER-20) 40.3020STL32H
T6= (3) Drill Holder 25mm shank 17.3025LTSTL32H
T7= (2) Live Radial Milling Tool Holder (ER-20) 50.3020DSTL32H01
T8= Open
T9= (2) Live Radial Milling Tool Holder (ER-20) 40.3020DSTL32H01
T10= (1) Live Radial Milling Tool Holder (ER-20) 40.3020STL32H

Sub-Spindle:
(4) Live Face Milling Tool Holders (ER-16)
(4) Stationary ER-16 Drill Holders

Guide Bushings
Hardinge TD-32-S
Sizes Available:
-1.250
-1.0
-3/4
-5/8 (2x)
-9/16 (2x)
-1/2
-7/16 (2x)
-3/8
-9/32
-5/16
-1/4
-3/16

Collets for Main/Sub Spindles
Hardinge TF-37
Sizes Available:
-(3) Long Emergency Collets
-(4) Short Emergency Collets
-1/8 Short
-11/64 Short
-7/32 Short
- (2) 1/4 Short
-9/32 Short
-5/16 Short
-21/64 Short
-11/32 Short
-.3747 Short
-3/8 Short
-13/32 Short
-27/64 Short
-(2) 7/16 Short
-.406 Short
- (3) 1/2 Short
-17/32 Short
-(2) 9/16 Short
-19/32 Short
-(3) 5/8 Short
-11/16 Short
-3/4 Short
-(2) 1.0 Short
- (2) 1.250 Short
