NEW 2021 FANUC aiSR 30/3000
Overview
Description
This listing is for a NEW FANUC αiSR 30/3000 AC servo motor, part number A06B‑0041‑B605#S142‑R. It is designed for high‑performance servo motion control in FANUC CNC and automation systems. This motor is rated at 4.3 kW continuous output, 3000 RPM, and includes a high‑resolution FANUC pulse coder for precise speed and position feedback.

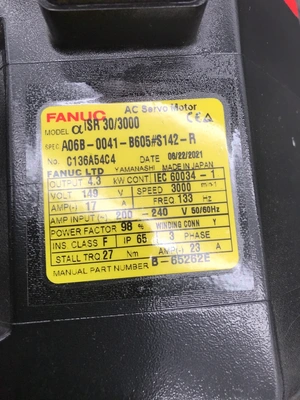

Specifications
| Dimensions | 13x7x9 | 13x7x9 |
|---|---|---|
| Weight | 54 | 54 |
Manufacturer: FANUC LTD
Series: αiSR
Model: αiSR 30/3000
Part Number: A06B‑0041‑B605#S142‑R
Condition: NEW
Motor Type: AC Servo Motor
Continuous Output: 4.3 kW
Rated Speed: 3000 RPM
Voltage (Motor): 149 V
Frequency: 133 Hz
Rated Current: 17 A
Input Voltage: 200–240 VAC
Input Current: 23 A
Phases: 3‑Phase
Power Factor: 98 %
Winding Connection: Y
Protection Rating: IP65
Insulation Class: F
Stall Torque: 27 Nm
Pulse Coder:
Type: FANUC Pulse Coder αi
Model: A860‑2010‑T021
Manufacture Date: 08/22/2021
Country of Manufacture: Japan
Manual Reference: B‑65262E
