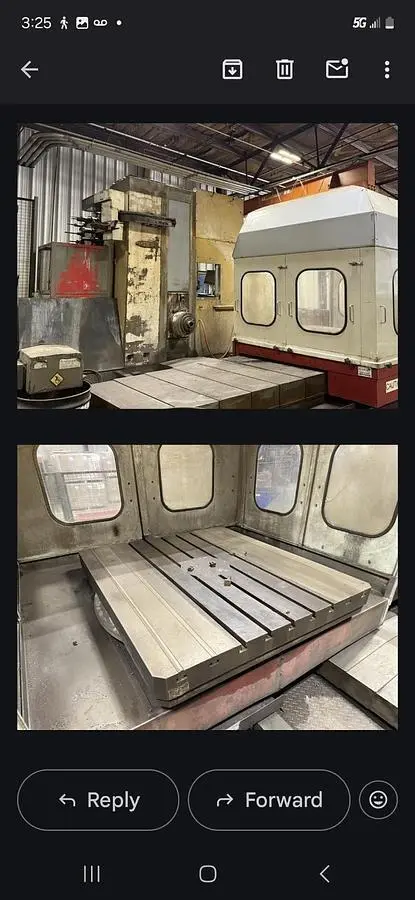

NEW 2000 NOMURA HBA-110T-R3
Overview
2000 NOMURA CNC Table Type Horizontal Boring Machine Model HBA-110T-R3
Since 1917, Japan’s oldest and most experienced manufacturer puts the complete HBM package together. All the major components are cast from the highest grade of iron, designed as a one-piece bed with the rational-rib approach and overly heavy walls and wide box ways.
Hardened and then hand-scraped or machined to perfection.
Taking a six month and twenty-step process, nitride hardened, ground and hand-lapped spindle ensures the Nomura spindle has ideal hardness and finish. It is 300% straighter than even the Japanese Industrial Standards ( JIS ) allow.
The Fanuc controller and oversized servo motors, ballscrews, bearings, gears, and all the internal components meet the highest levels of the JIS quality requirements.
A full array of optional accessories such as enlarged ATC magazines, facing and contouring heads, secondary rotary tables, and Probes, etc. are available.
Specs
MAIN SPECIFICATIONS
Model HBA-110T-R3
Type 4" Rotary Table
Spindle
Spindle Diameter 4.3"
Spindle Speed 3,200 rpm
Spindle Taper Taper No 50
Max. Spindle Torque 2,615 ft-lbs
Max. Spindle Thrust 4,400 lbs
Travel
X Axis (table cross traverse) 77.8"
Y Axis (headstock vertical travel) 60"
Z Axis (column longitudinal travel) 50.1"
W. Axis (spindle travel) 19.7"
Auto Tool Ckamger 40 tool ATC
Table
Table Size 55.1" x 63"
Max.Load on Table (uniformly distributed load) 12,500 lbs
Min. Command Indexing Angles on Table (B Axis) 0.001 deg.
Feed
Rapid Traverse of X,Y and Z Axes 472.4"/min
Rapid Traverse of W Axis 196.9"/min
Feed Rate 0.04"/min~275.6"/min
Table Rotation Speed 540 deg/min
Motor
Spindle Drive Motor 30 HP
Machine Size
Machine Height 154"
Required Floor Space 211" x 174"
Weight 59,400 lbs
Equipped With
Full 4th Axis Rotary Table,
Thru Spindle Coolant,
Enclosure
RIGID BED AND SADDLE
ATC MAGAZINE - 40 Tool Magazine
HAND SCRAPING
HAND SCRAPED SLIDE WAYS
NOSE TYPE HEAD STOCK, EXTRA REACH TO WORK PIECE
OPERATOR-FRIENDLY CONTROLLER
