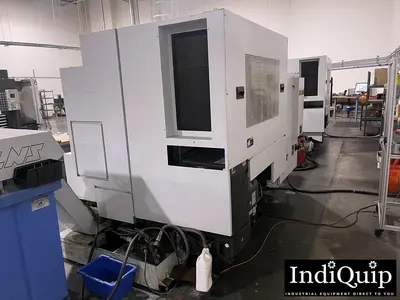

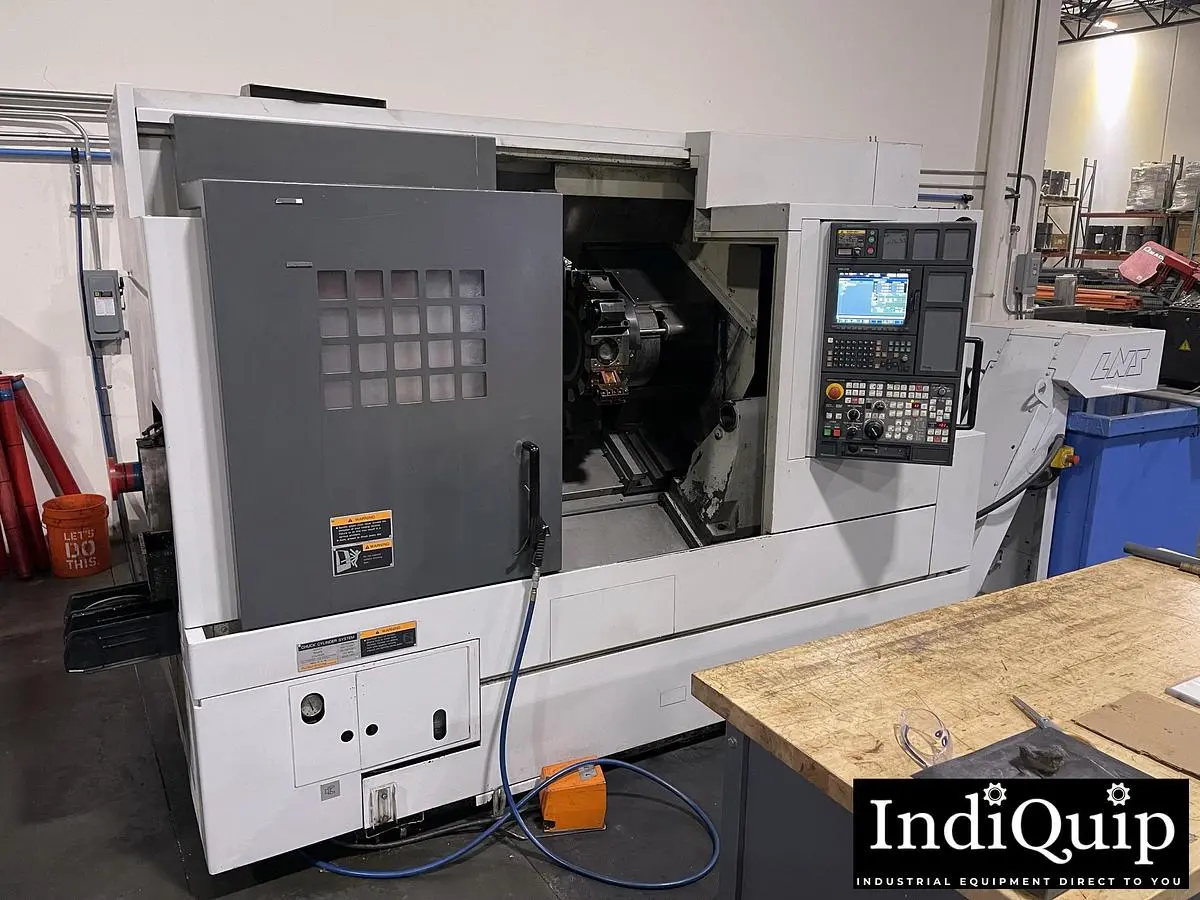

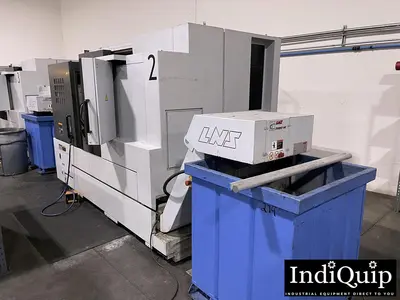

USED 2005 MORI SEIKI NL2500

2005 Mori Seiki NL2500 CNC turning center equipped with a chip conveyor, offering a proven combination of rigidity, precision, and reliability for a wide range of turning applications. This machine features a 10" chuck, 12-station turret, and a 4,000 RPM spindle with a 2.99" bar capacity, making it well-suited for both bar work and chucking operations.
Built on Mori Seiki’s heavy-duty NL platform, the NL2500 provides a maximum turning diameter of 14.37" and a turning length of 27.56", with robust construction that excels in cutting tougher materials while maintaining tight tolerances. Rapid traverse rates up to 1,181 IPM on the Z-axis help reduce cycle times and improve overall shop efficiency.
The integrated chip conveyor ensures efficient chip evacuation for longer unattended runs, making this machine a strong fit for job shops, production environments, or manufacturers looking to add a dependable, high-performance lathe to their lineup.
All specifications, features, and descriptions are provided in good faith but are not guaranteed to be accurate. It is the buyer’s responsibility to verify all details, capabilities, and condition of the equipment directly with the seller or end user prior to purchase.

Max Turning Diameter: 14.37"
Max Turning Length: 27.56"
Swing Over Bed: 36.2"
Swing Over Cross Slide: 29.1"
X-Axis Travel: 10.2"
Z-Axis Travel: 27.95"
Chuck Size: 10"
Spindle Bore: 3.15"
Bar Capacity: 2.99"
Spindle Speed: 4,000 RPM
Spindle Motor: 25 HP
Tool Stations: 12-Station Turret
Tool Size (OD): 1.0"
Boring Bar Capacity: 1.6"
Rapid Traverse (X): 787 IPM
Rapid Traverse (Z): 1,181 IPM
