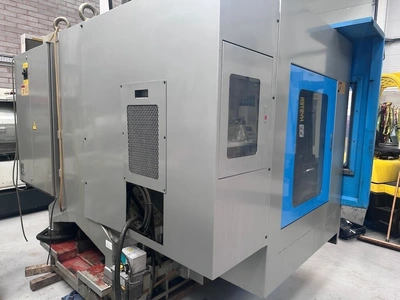

USED 2004 DUGARD 1000

Dugard 1000 VMC featuring a Heidenhain TNC‑530 CNC for conversational and FK programming, with full colour display and extended memory. This rigid 3-axis vertical machining centre offers a large work envelope (X 1,050 × Y 540 × Z 560 mm) and a robust 1,176 kg table load, ideal for precision milling and heavy production work.
Equipped with a BT40 spindle (up to 11,000 rpm, 11–15 kW), 24-station automatic tool changer, through-spindle coolant, and chip conveyor, this machine is ready for reliable, high-performance production.

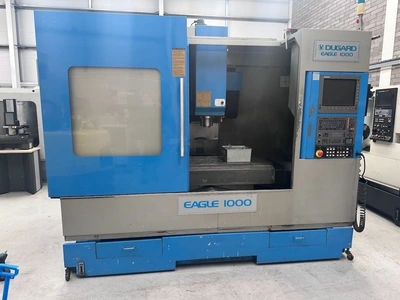

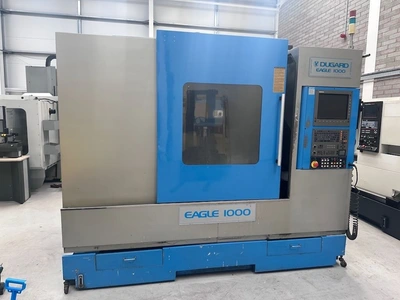

Dugard 1000 Vertical Machining Centre – 2004 – Heidenhain iTNC‑530 Control

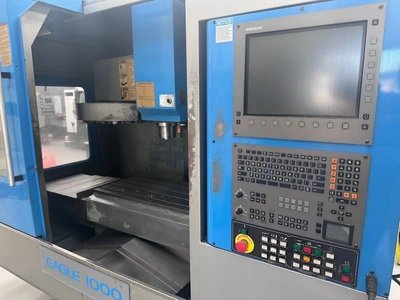

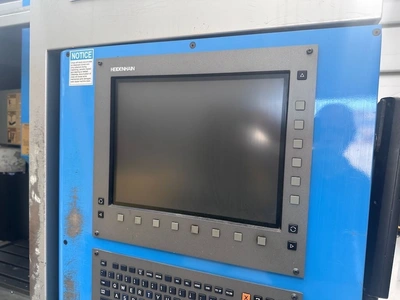

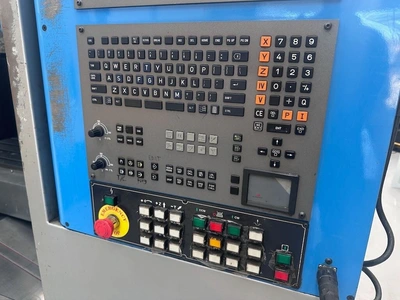

CNC Control

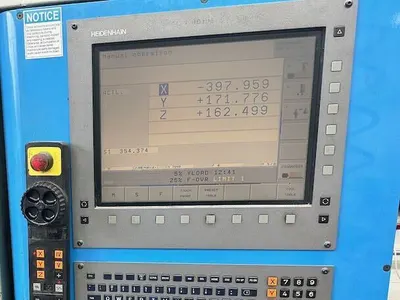

Heidenhain TNC‑530 control with conversational and FK programming support, colour display and extended memory for complex part machining (optional on Dugard 1000 range).
Machine Type
3‑Axis Vertical Machining Centre (VMC) with rigid cast‑iron construction and fully enclosed guarding for safe CNC operation.

Travels & Work Envelope
X‑axis travel: 1,050 mm
Y‑axis travel: 540 mm
Z‑axis travel: 560 mm

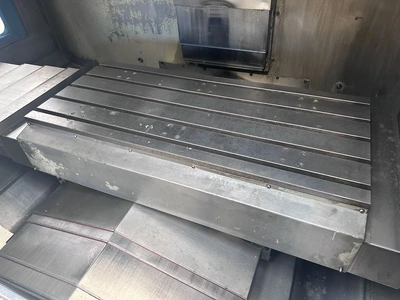

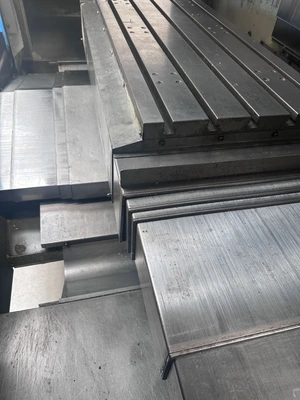

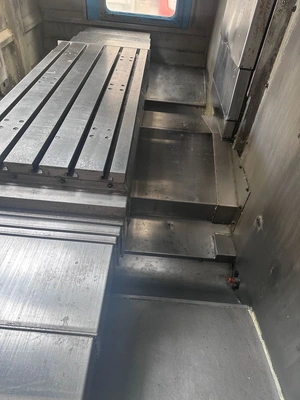

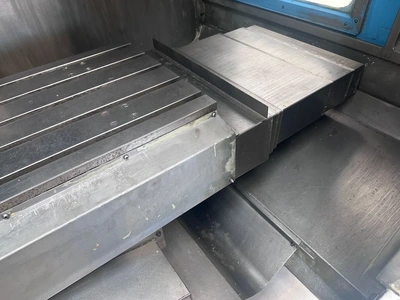

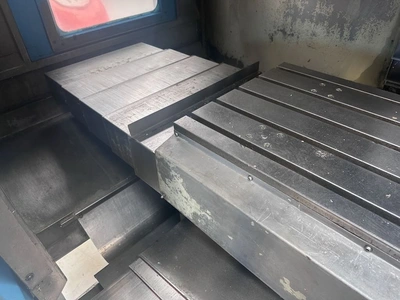

Table size: 1,200 × 480 mm
Maximum table load: approx. 1,176 kg
(All figures typical for Dugard 1000 series)

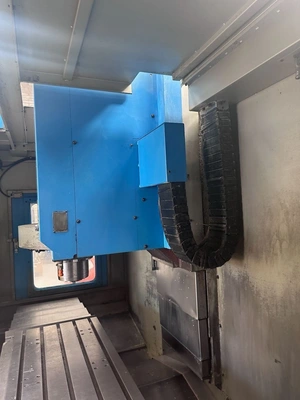

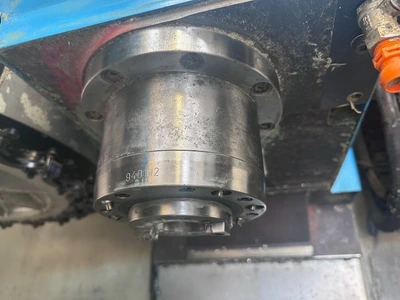

Spindle
Spindle taper: BT‑40
Speed range: ~20–8,000 rpm
Spindle motor: robust industrial design (typically 11–15 kW on 1000 series)

Feeds & Rapid Rates
Rapid traverse (X/Y): ~30 m/min
Rapid traverse (Z): ~25 m/min
Cutting feed: approx. 12 m/min (typical)

Tool Changer

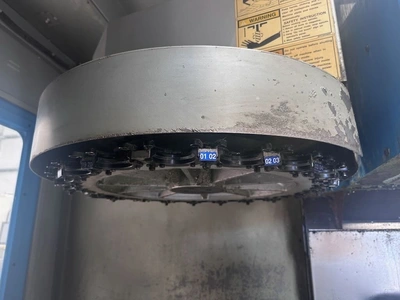

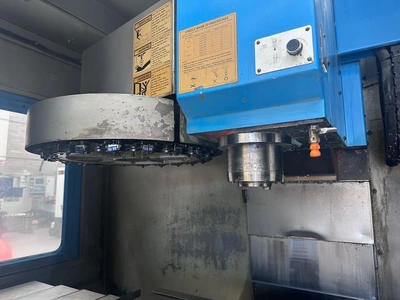

24‑station drum-type automatic tool changer
Maximum tool diameter: ~80 mm
Maximum tool length: ~250 mm
Typical tool change time ~2.2 seconds

Capacities & Dimensions
Machine dimensions (approx): 3,370 × 2,240 × 3,130 mm
Machine weight: ~5,800–6,000 kg

Includes BT40 Tooling Package
