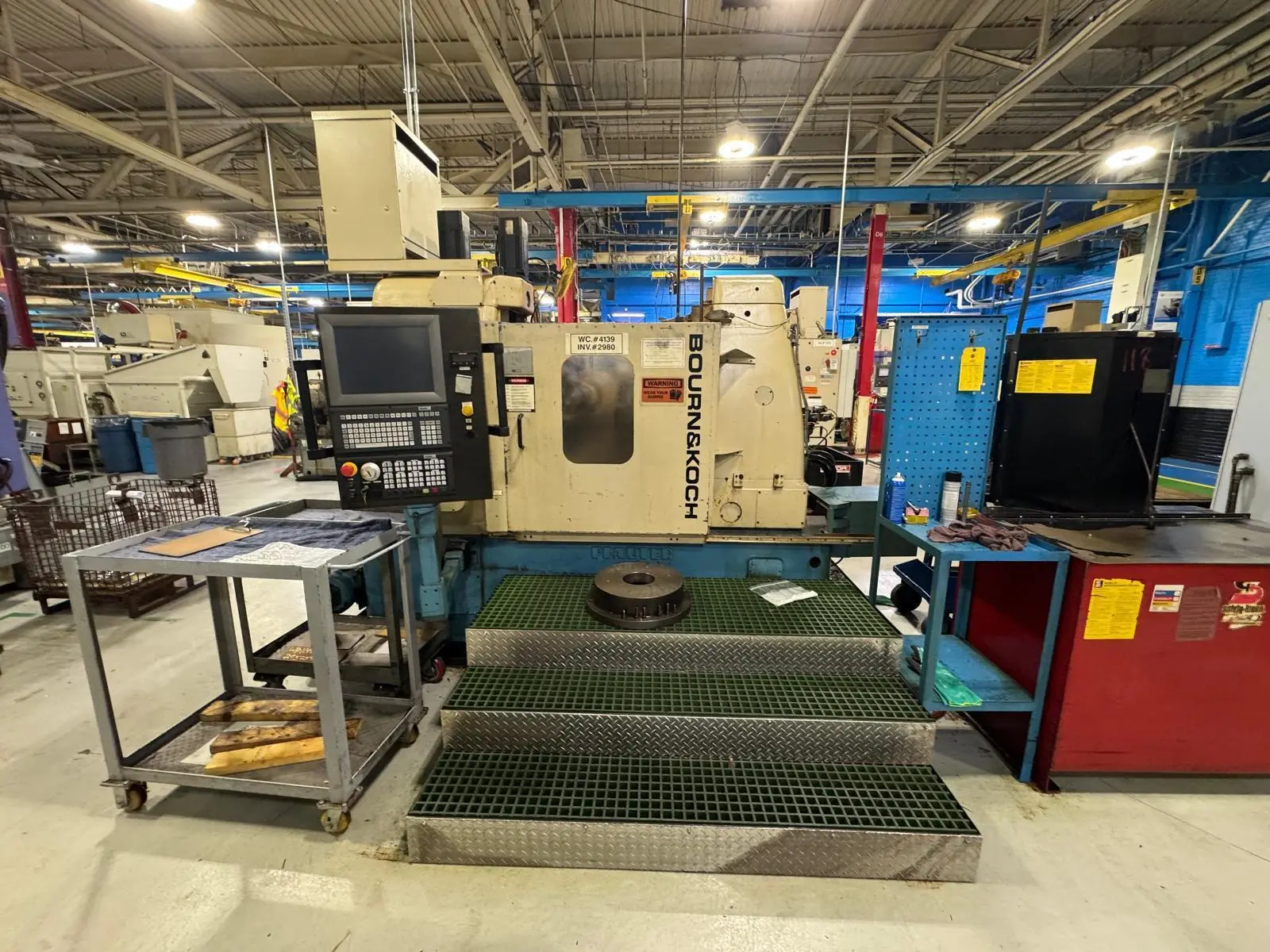

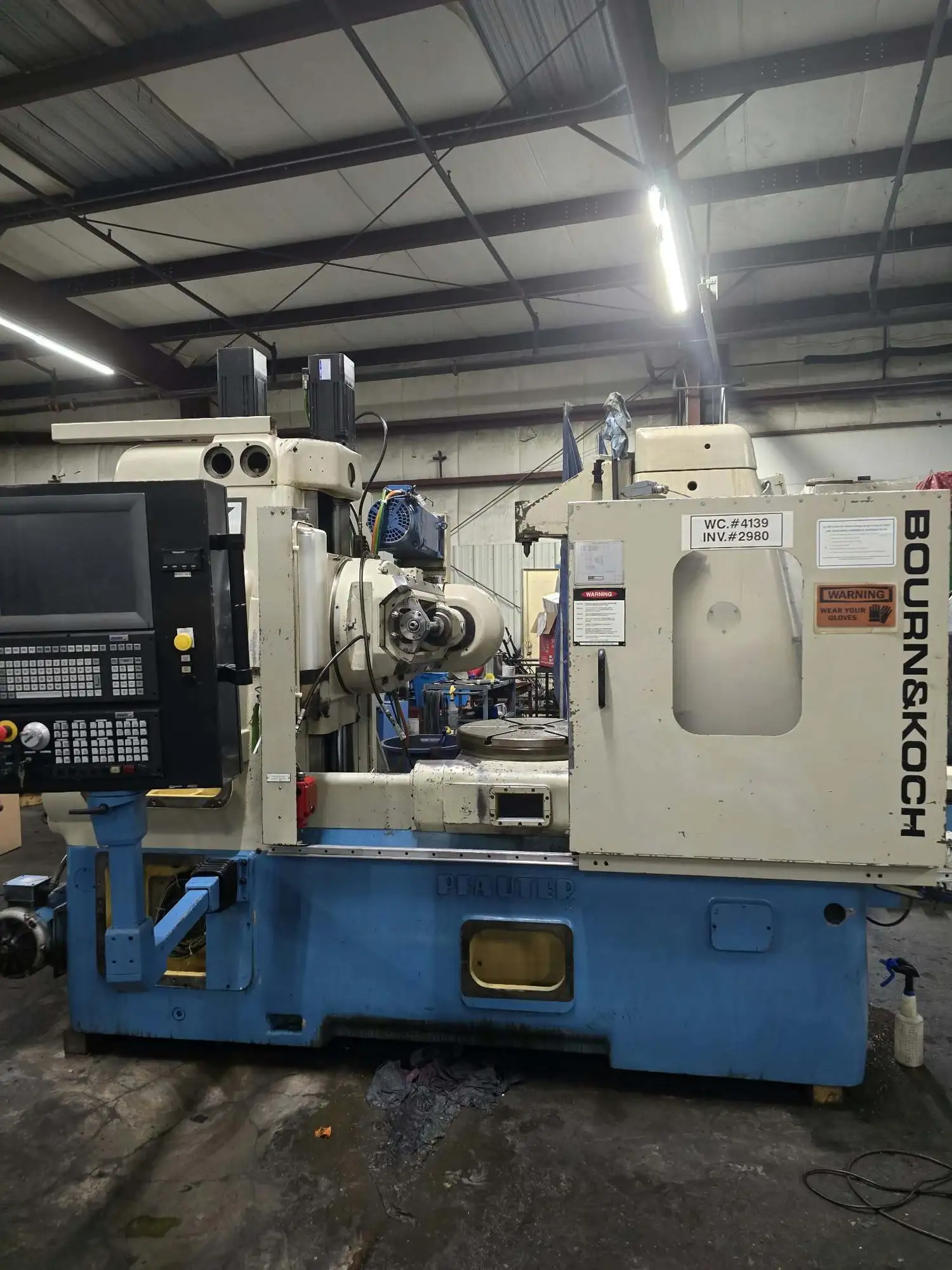

USED 2006 PFAUTER P-630r

Pfauter P630-R CNC 5-Axis, Retrofitted Gear hobber , 24" diameter capacity , full capacity , Rebuilt & Remanufactured by B&K in 2008 with NUM AXIUM CNC controls

Pfauter CNC 5-axis retrofitted vertical gear hobbing machine
Machine model P-630-R
s/n will advise
remanufactured & retrofitted by B&K in 2008

this machine is an excellent production CNC gear hobbing
machine. It can be inspected in our NC plant under power.
Machine is equipped with NUM AXIUM CNC controls

Machine specifications to follow

Max diameter gear 24.5"
Max face width 15"
Max axial travel 17.3"
max pitch 2.5 DP
max diameter hob 7.5 x 9.5"
tailstock max/ min 30" / 13.43"
table diameter 21.8"
hole in the table 3.9370"
max tang travel 7.9"
machine weight 20,000 lbs

machine is equipped with the following
NUM AXIUM 5-Axis cnc controls w/ Operator pendant
full software package
Swing-away tailstock
hob arbor
Magnetic chip conveyor
attached electrical panel & controls
books and manuals

Note : swivel is manual with vernier scale

Machine can be inspected repaired & gone through in our
Statesville NC shop. please visit our website at
WWW.Pisellient.com for formal quote on-line or contact
rich piselli at [email protected] for more info or to
set up an inspection on this or learn about
other machinery we have

thank you
Richard Piselli
