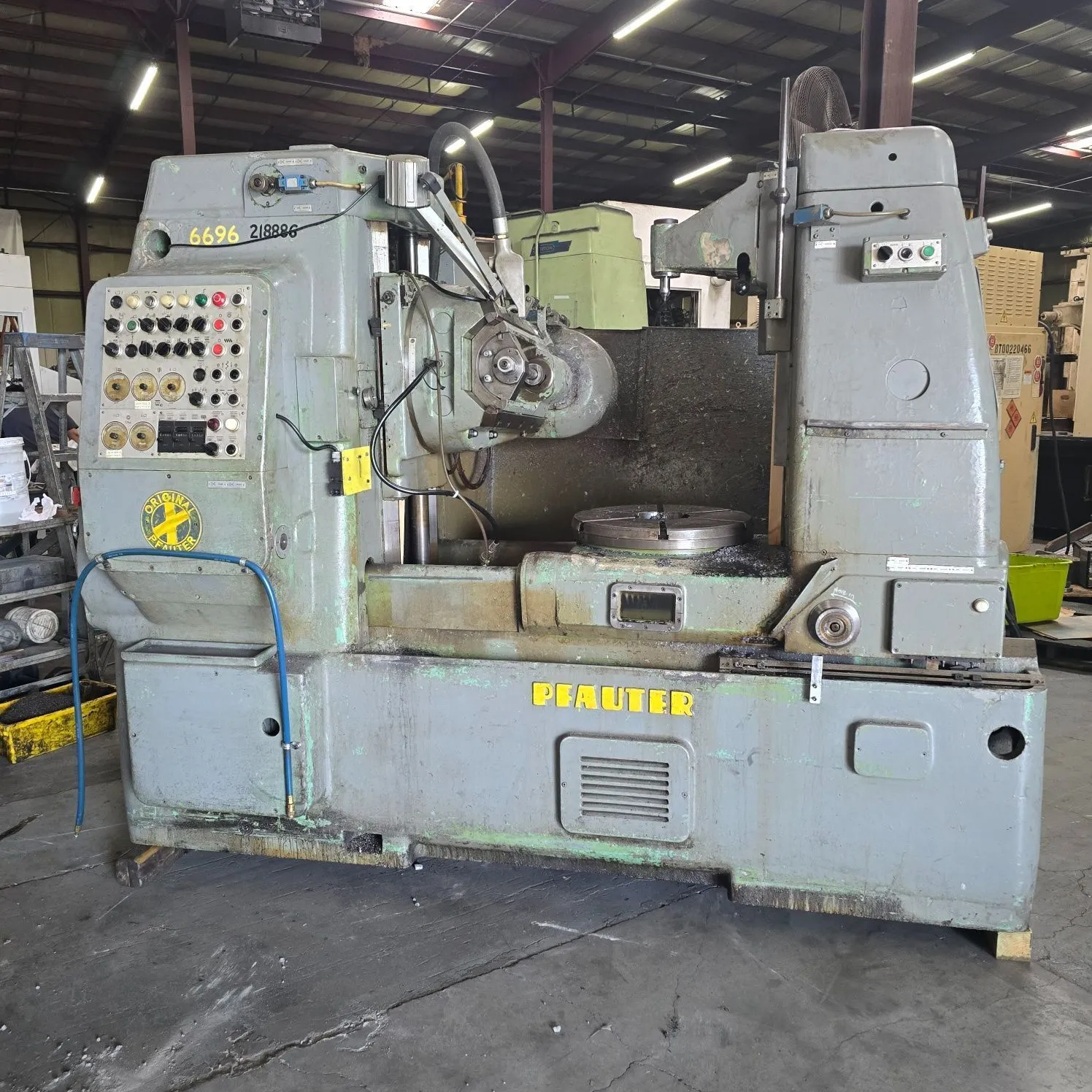

USED 1973 PFAUTER P-630
Overview
Description
Pfauter model P630 Gear hobber 24" diameter capacity, auto cycles, tailstock , excellent s/n 23911
Specifications
| Max Workpiece Diameter | 24" | 609.6 mm |
|---|---|---|
| Max Diametral Pitch | 2.5 dp | 2.5 dp |
| Horz/Vert | Vert | Vert |
Pfauter vertical gear hobber
Machine model P-630
s/n 23911
New 1973
this machine is an excellent production mechanical gear hobber
machine. It can be inspected in our NC plant under power
Machine specifications to follow
Max diameter gear 24.5"
Max face width 15"
Max axial travel 17.3"
max pitch 2.5 DP
max diameter hob 7.5 x 9.5"
tailstock max/ min 30" / 13.43"
table diameter 21.8"
hole in the table 3.9370"
max tang travel 7.9"
machine weight 20,000 lbs
machine is equipped with the following
differential
tangential
auto cycles
tailstock
hob arbor
chip conveyor (TBD)
attached electrical panel
change gears
books and manuals
Machine can be inspected repaired & gone through in our
Statesville NC shop. please visit our website at WWW.Pisellient.com for formal quote
on-line or contact rich piselli at [email protected] for
more info or to set up an inspection on this or learn about
other machinery we have
thank you
Richard Piselli
