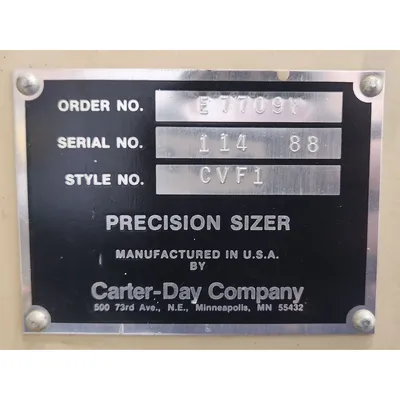

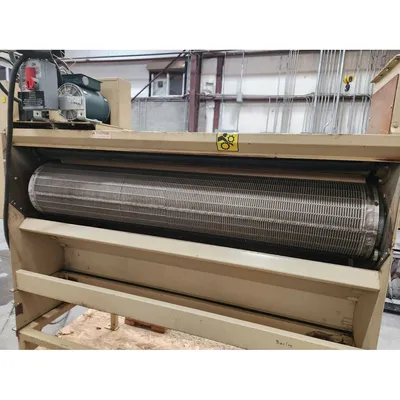

Style CVF1; Serial No: 114 88

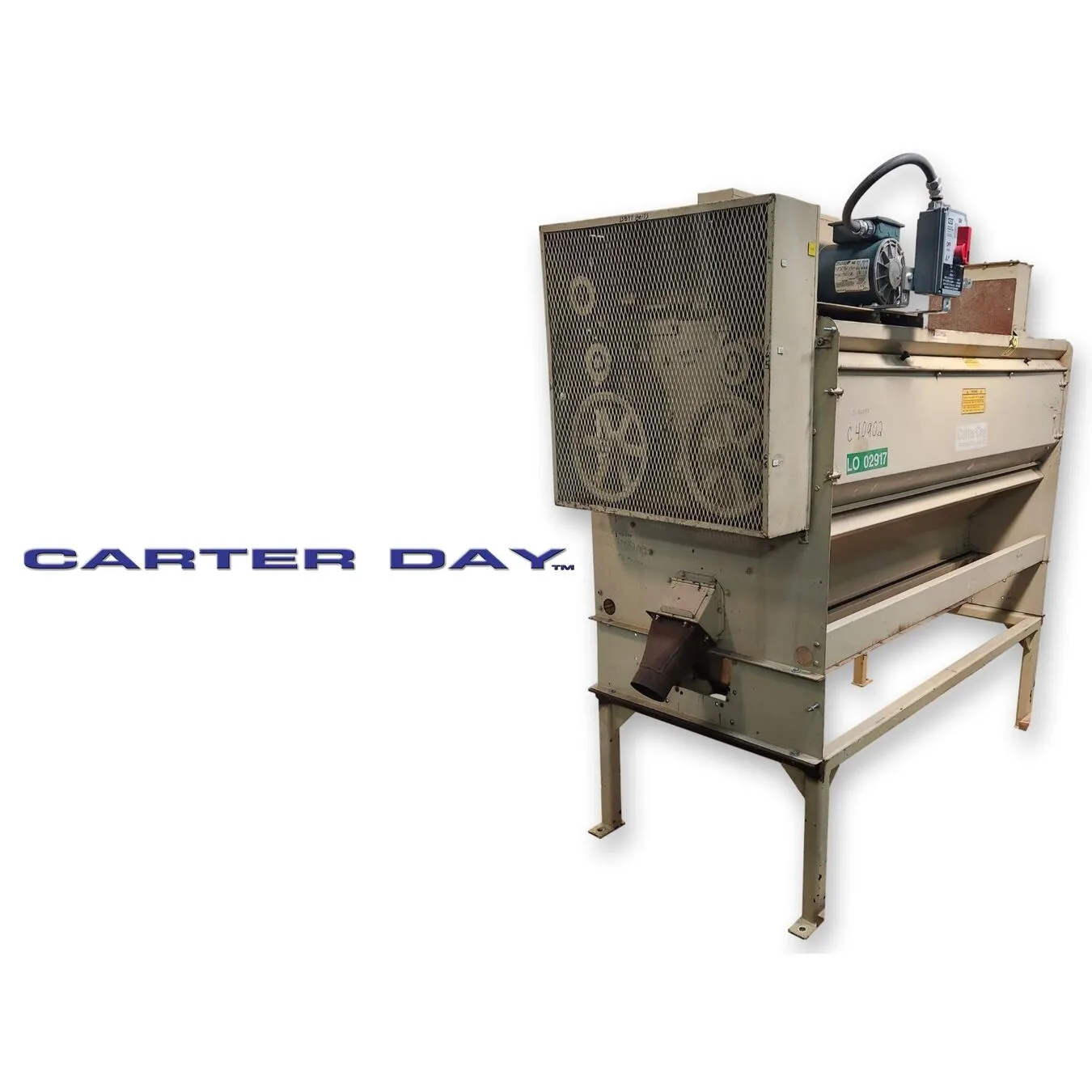

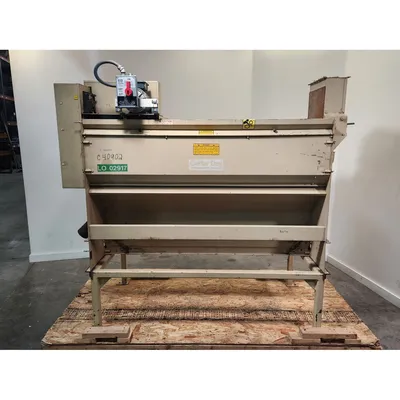

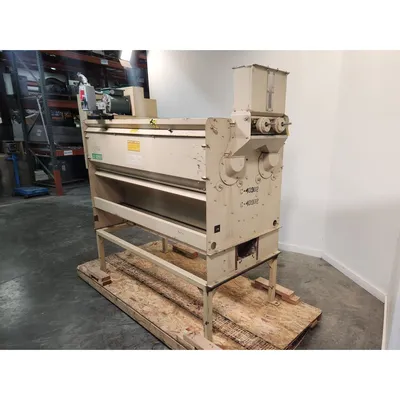

For continuous width grading/sizing of seeds and grains using rotating, slotted cylinders.

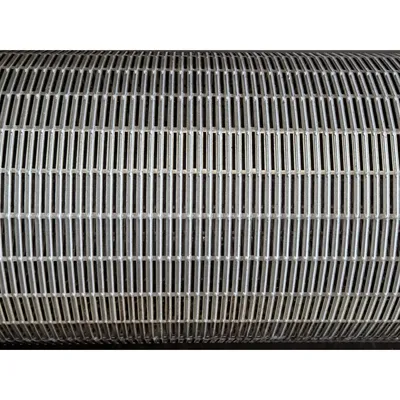

Installed with two- 12"Ø X 60" rotary cylinders with 3/64"W X 1-1/4"L slots.
Slotted cylinders are specifically designed for width sizing, end to end product flow.

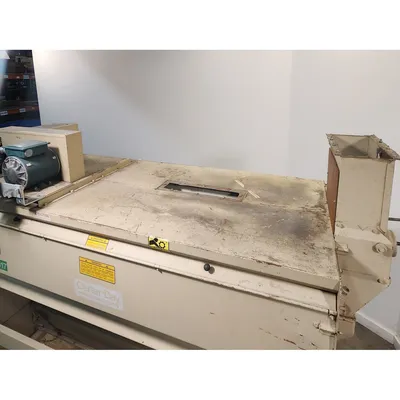

Product Inlet: 14" X 5.5" with two-way divider, top-mounted, gravity drop-thru

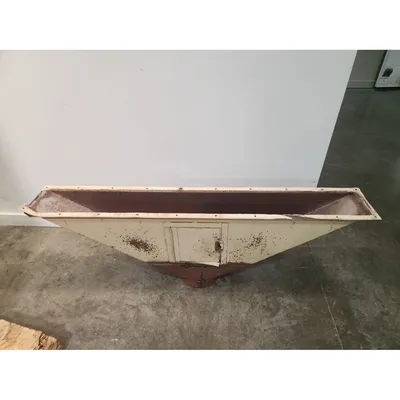

Product Discharge: bottom hopper with 8"Ø sleeve
Undersized material is discharged into a 6" X 4" chute with cleanout.

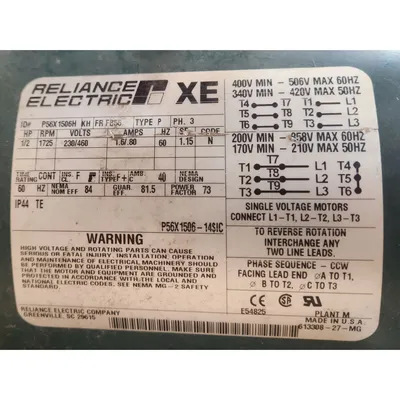

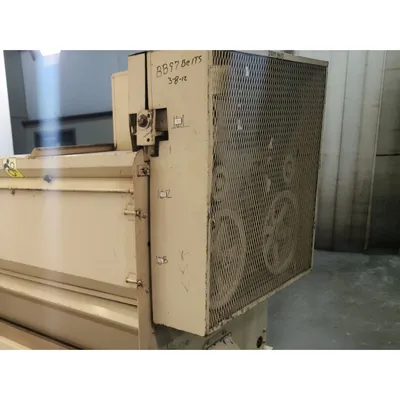

1/2HP V-belt & geared drive (230/460V, 60Hz, 3ph)
Previously used for sizing barley grains.
FOB: Millwood, WV 25262
Item: 21582 Model : 212
MFG: Carter Day
Width (inches): 0
