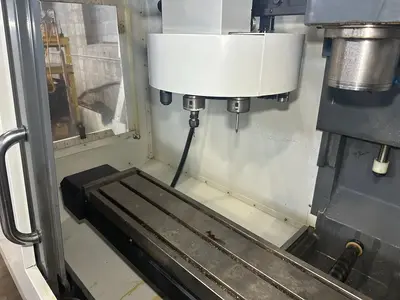

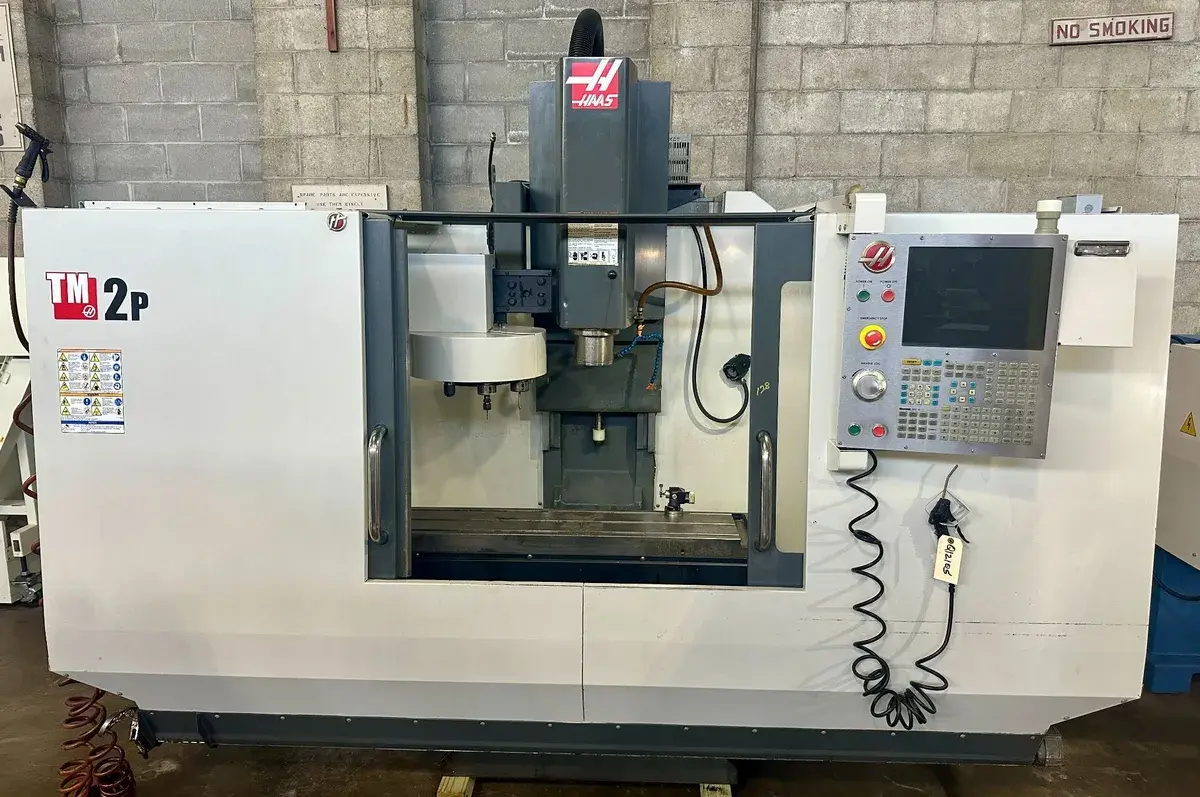

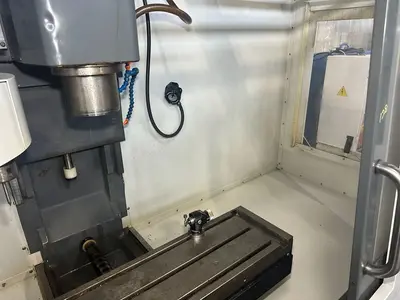

HAAS TM-2P 3-AXIS CNC VERTICAL MACHINING CENTER
New 2014
EQUIPPED WITH:

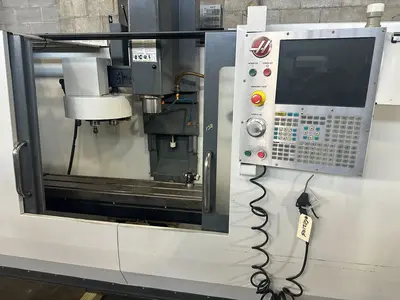

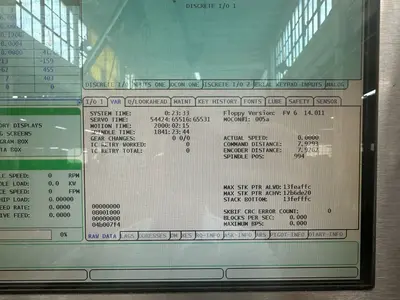

Haas CNC Control with 15" Color LCD Monitor w/ USB Port, 10-Station Automatic Tool Changer, 6000 RPM Spindle, Tool & Part Probe, Coolant Nozzle, Coolant System with Tank & Pump.
SPECIFICATIONS:
Table 57.75" x 10.5"
Max. Table Load Capacity 1,000 Lbs.
Travels
X-Axis (Longitudinal Travel) 40"
Y-Axis (Cross Travel) 16"
Z-Axis (Vertical Travel) 16"
Max. Clearance Tabletop to Sindle Nose 20"
Min. Clearance Tabletop to Sindle Nose 4"
Rapid Traverse Rate (X, Y, & Z Axis) 400 IPM
Spindle Power 7.5 HP
Max. Spindle Speed 6,000 RPM
Spindle Taper CAT 40
Torque, Up To 33 Ft-LB@ 1200 RPM

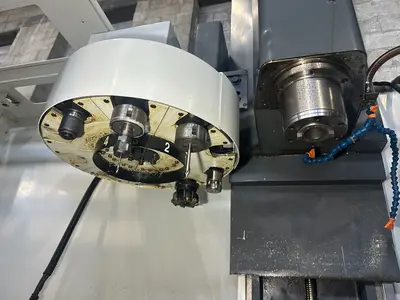

Automatic Tool Changer (ATC) 10
Automatic Tool Changer Style Carousel
Tool Change Time 5.7 Sec.
Electrics 208-240/3/60
Approx. Dimensions 121" x 87" x 105" H
Approx. Weight 5,060 Lbs.
