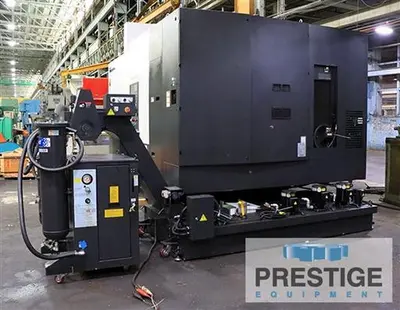

USED 2015 HYUNDAI WIA HS 5000I

SPECIFICATIONS:

TRAVELS & FEEDS:
X-AXIS TRAVEL: 33.5”
Y-AXIS TRAVEL: 27.6”
Z-AXIS TRAVEL: 29.5”
DISTANCE COLUMN TO SPINDLE CENTER: 2"-29.5"
DISTANCE TABLE SURFACE TO SPINDLE: 5.9"~35.4"
RAPID TRAVERSE RATE (X/Y/Z): 1,969/1,969/1,969 IPM
CUTTING FEED RATE: 393 IPM

PALLETS:
PALLET SIZE: 19.7" × 19.7" / 500mm
NUMBER OF PALLETS: 2
MAXIMUM LOAD CAPACITY: 1,102 LBS
MAXIMUM WORKING SIZE: 30.7" × 38.6"H
MIN. INDEXING ANGLE: 0.001°

SPINDLE:
SPINDLE TAPER: CAT #40 BIG PLUS
SPINDLE SPEED: 12,000 RPM
SPINDLE MOTOR OUTPUT: 33.5/30 HP
SPINDLE TORQUE (MAX./CONT.): 123.1/70.1) LBF-FT
SPINDLE DRIVING METHOD: BUILT-IN

TOOL CHANGER:

NUMBER OF TOOLS:
MAX. TOOL DIA, ADJACENT FULL/EMPTY: 3"/5.5"
MAX. TOOL LENGTH: 17.7"
MAX. TOOL WEIGHT: 17.6 LBS
TOOL CHANGE TIME: T-T SEC 1.1 / C-C SEC 3.8
FLOOR SPACE (MACHINE ONLY): 109" × 192" x 110.8”
APPROXIMATE WEIGHT: 33,069 LBS

Equipped With:

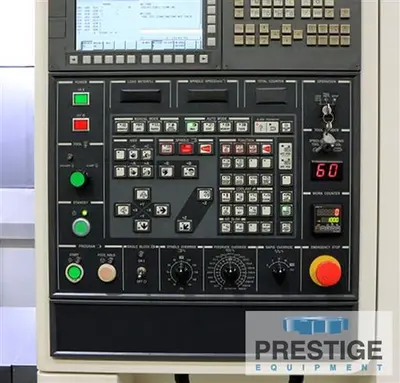

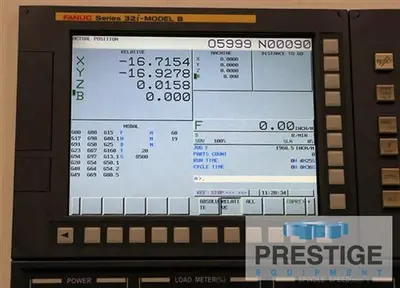

FANUC SERIES 32i MODEL B CNC CONTROL
- EXPANDED MEMORY, HIGH SPEED HRV3 FUNCTION, 64 TOOL OFFSETS
- AI CONTOUR CONTROL, HELICAL INTERPOLATION, THREAD CUT/SYNCHO FEED
- RIGID TAPPING, COORIDINATE SYSTEM ROTATION, CUSTOM-B & EXECUTOR MACROS
- SIMULTANEOUES CONTROLLED AXES EXPANSION, BACKGROUND EDIT
80-POSITION AUTOMATIC TOOL CHANGER
RENISHAW LASER TOOL SETTER
COOLANT THROUGH SPINDLE

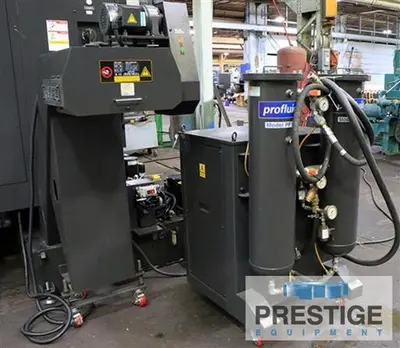

HIGH PRESSURE COOLANT THROUGH SPINDLE PUMP 70BAR-1000PSI
CHIP CONVEYOR

Features:
FANUC SERIES 32i MODEL B CNC CONTROL
80-POSITION AUTOMATIC TOOL CHANGER
RENISHAW LASER TOOL SETTER
COOLANT THROUGH SPINDLE
HIGH PRESSURE COOLANT THROUGH SPINDLE PUMP 70BAR-1000PSI
CHIP CONVEYOR
