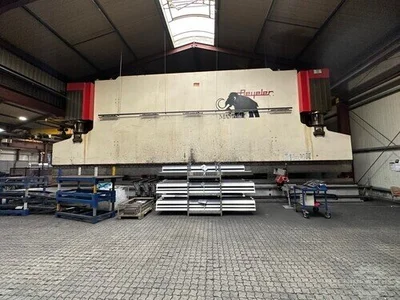

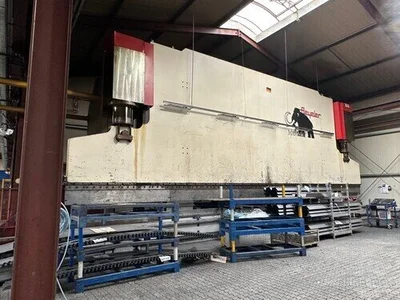

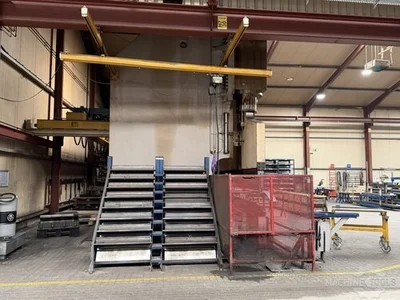

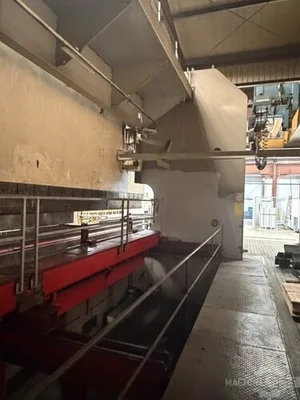

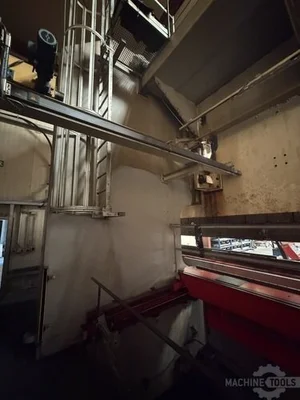

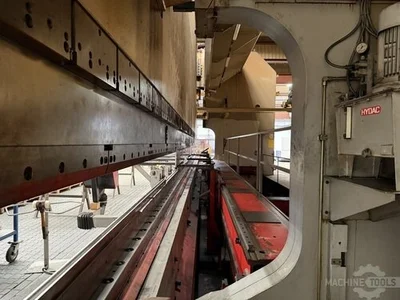

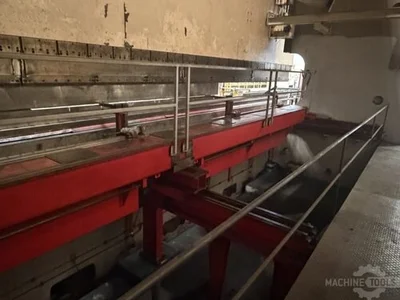

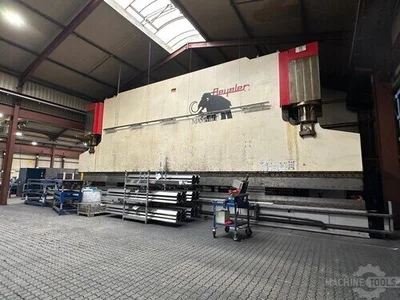

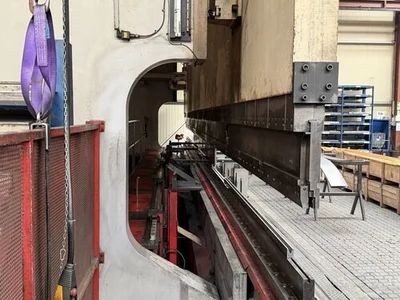

USED 2000 BEYELER MAMMUT PR10

Extra Heavy Duty Pressbrake

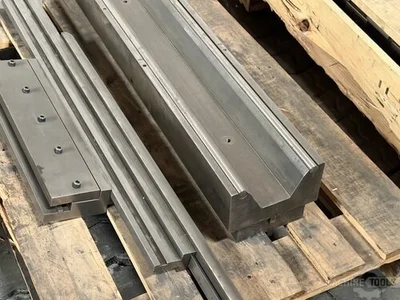

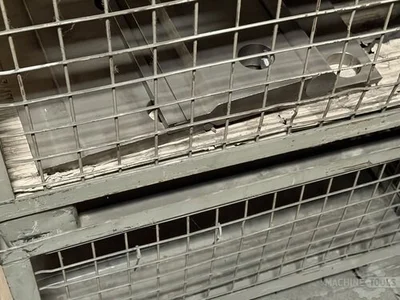

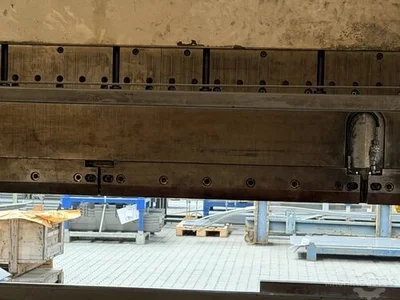

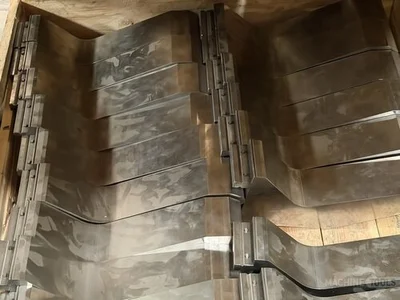

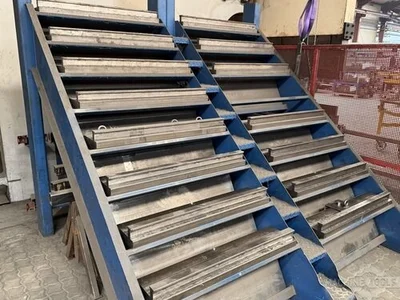

1 set top tooling 88 Gr

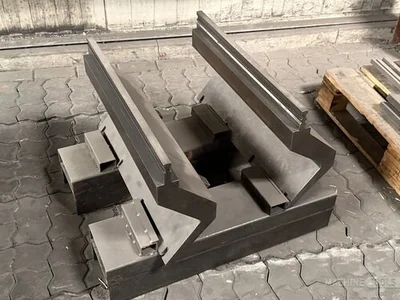

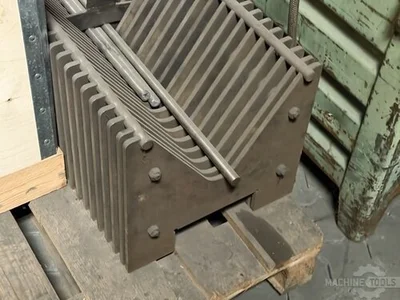

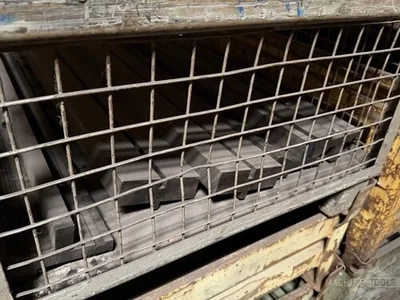

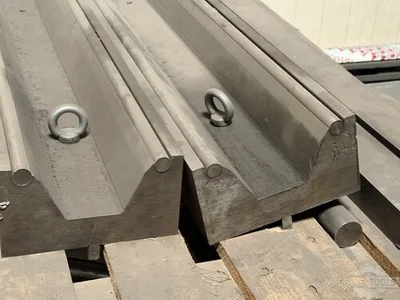

1 set lower dies

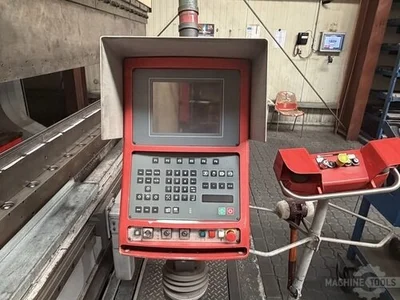

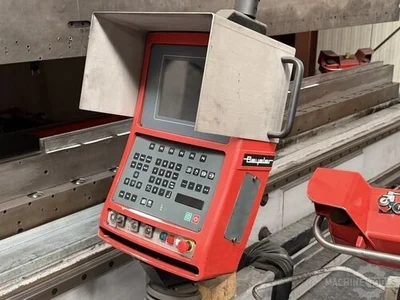

Cybelec DNC 1200
Y1,Y2,X,R1,R2,R3,R4,OWK

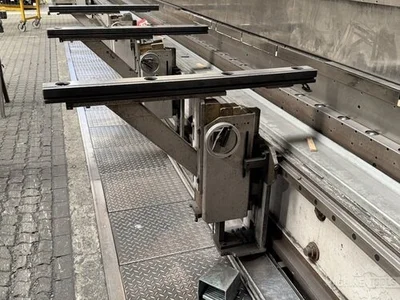

4 fingers R1/R2/R3/R4 with 400 mm stroke

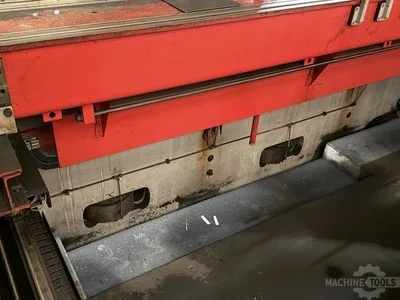

Crowning in lower blade 9 cylinders
Shipbuilding & Naval like ; Hull sections, deck plates, bulkheads ribs
Defence & Military; armored vehicle structures, reinforced structe hardox / strenx
Mining and Heavy Equipment; dump bodies, crusher housing, excevator, chute liners
Contruction and Fabrication; bridge giders, box columns, steel frames
On and Offshore; pilers, decks, spreaders, crane componenet, wind energy offshore parts
Boiler an vessels; pressure vessels, power plant components, tower or pole section
Bending examples:
35 mm thickness at 10 meter length
26 mm thickness at 12 meter length
20 mm thickness at 15 meter length

Max. bending length: 15400 mm
Distance between column: 12200 mm
Max. pressing force: 2000 T
Dis. Beam - Table: 1500 mm
Beam stroke: 850 mm
Table Width: 520/200 mm
Troth beam: 1250 mm
Approch speed: 80 mm/min.
Working speed: 8 mm/min.
Return speed: 80 mm/min.

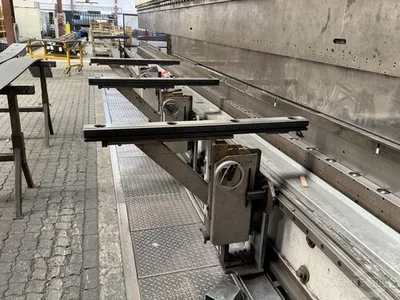

Adjustment X-Axis back gauge: 1500 mm
Number of controlled axis: 10
Crowning: Yes
Hydraulic toolclamping: Yes
Power: 132 kW
Length: 15400 mm
Width: 6500 mm
Height: 11400 mm
Weight: 407000 kg
