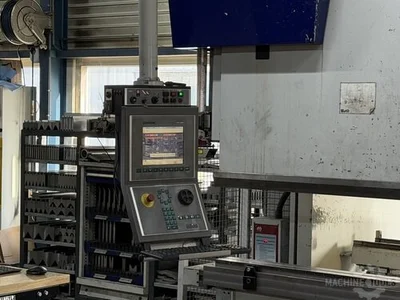

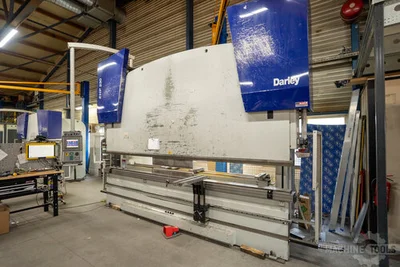

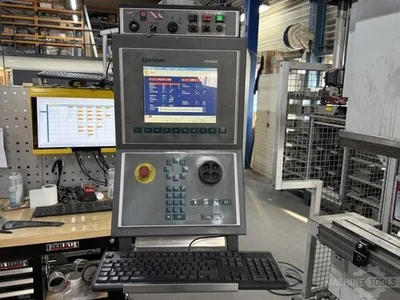

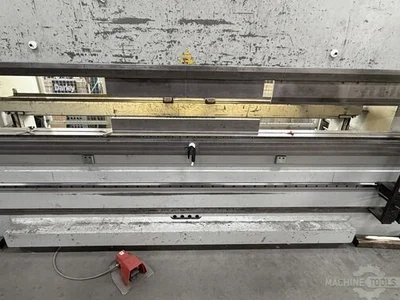

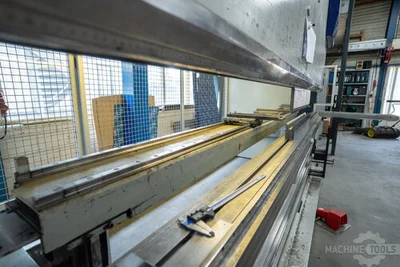

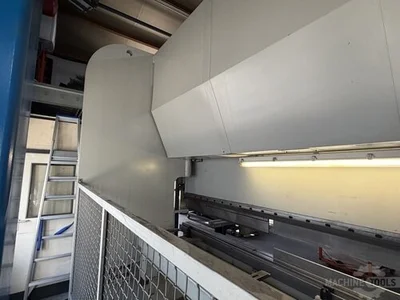

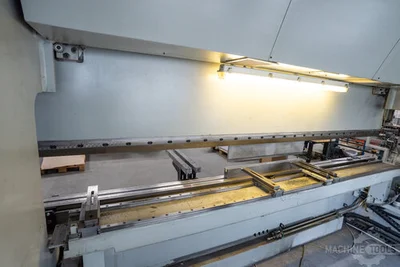

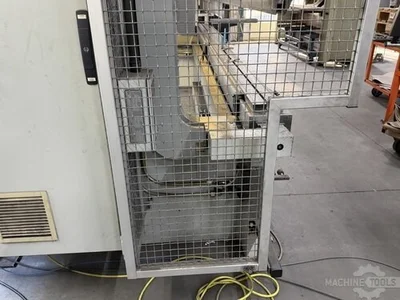

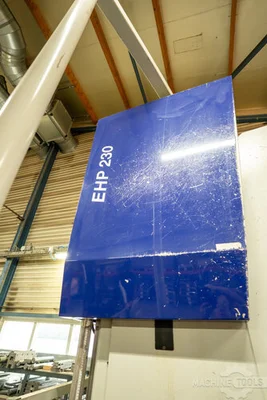

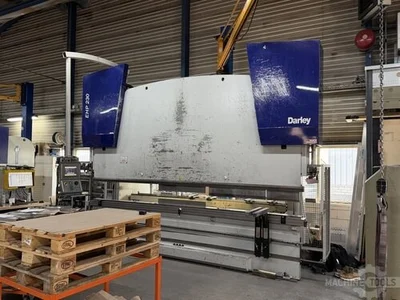

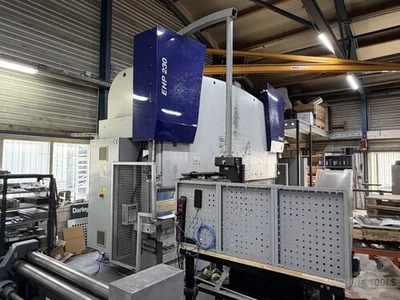

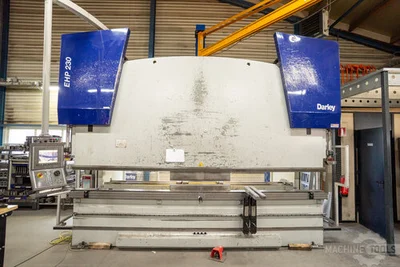

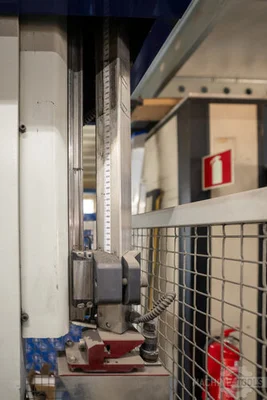

USED 2004 DARLEY EHP-LS 230 43/37
Overview

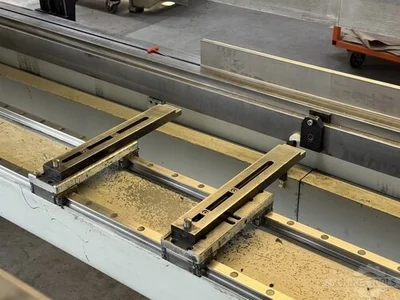

Optional T1 bending support holders
Optional T2 bending support holders
Motorized Crowning over controlled

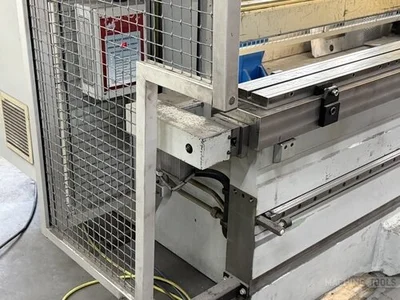

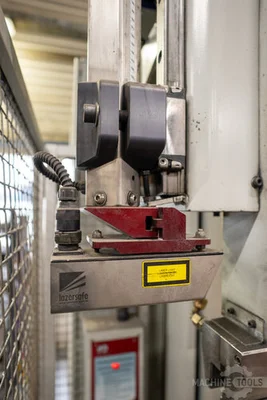

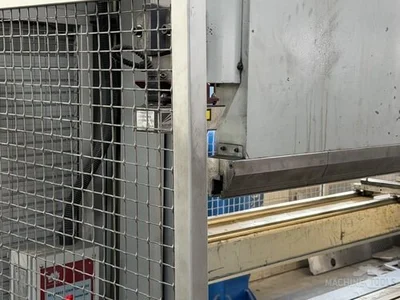

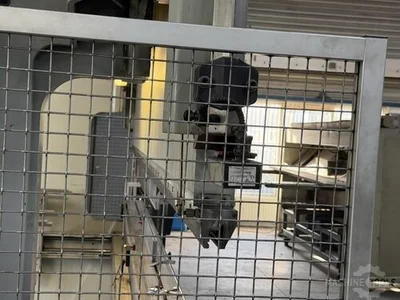

Lazer safe CE-Safety
Hydraulic tool clamping

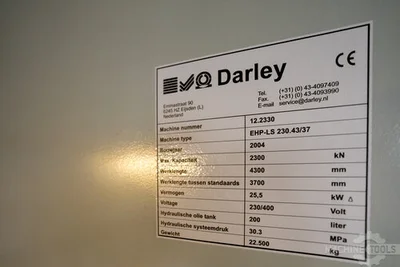

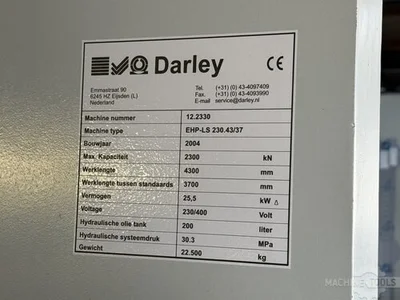

Specs
Max. bending length: 4300 mm
Distance between column: 3700 mm
Max. pressing force: 230 T
Beam stroke: 350 mm
Table Width: 250 mm
Troth beam: 400 mm
Approch speed: 100 mm/min.
Working speed: 10 mm/min.
Return speed: 100 mm/min.

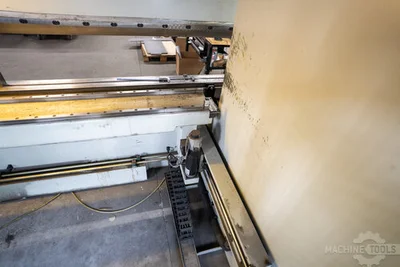

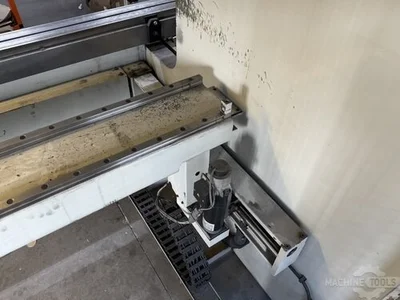

Adjustment X-Axis back gauge: 1000 mm

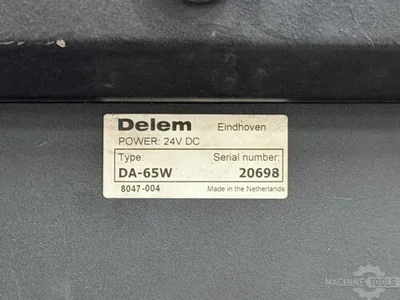

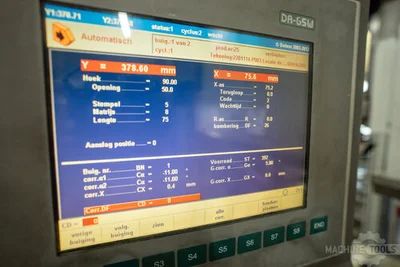

Number of controlled axis: 5
Crowning: yes
Hydraulic toolclamping: yes
Power: 25 kW
Length: 6000 mm
Width: 2000 mm
Height: 3400 mm
Weight: 22500 kg
