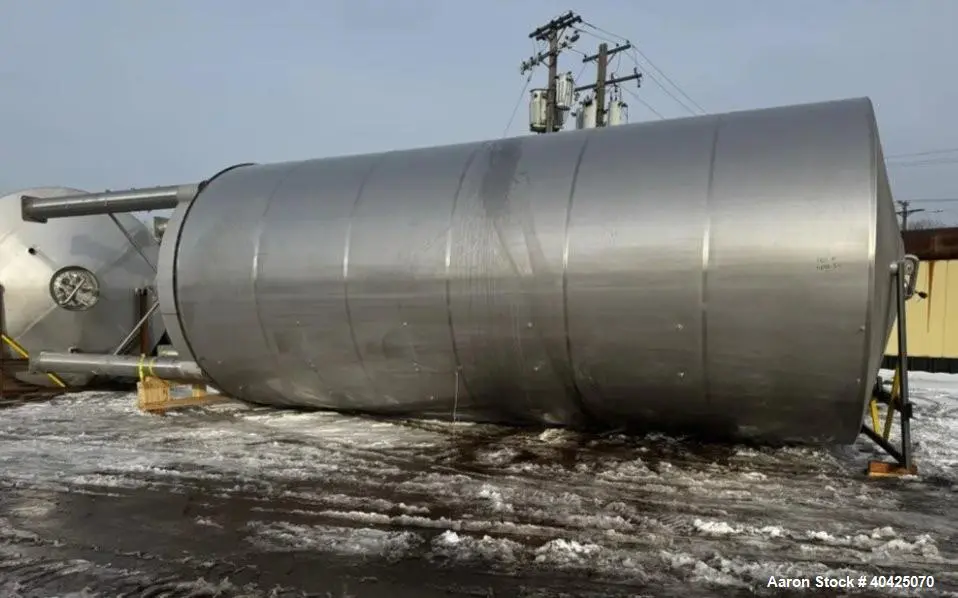

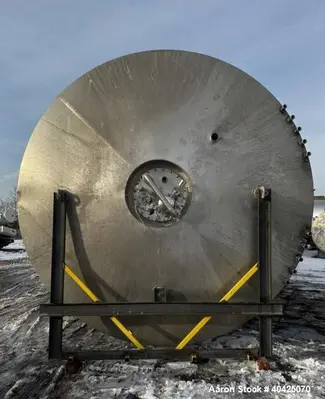

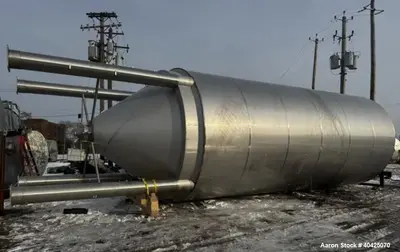

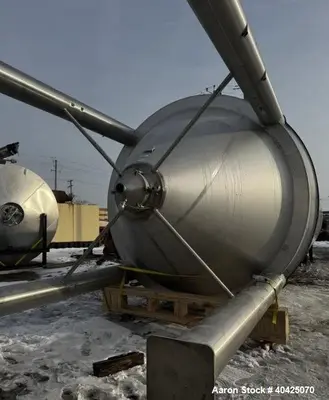

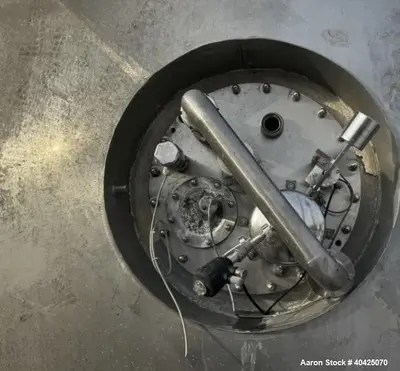

Used Rolec 31,372 Gallon Jacketed Stainless Steel Tank – Brewery Fermentation Vessel with Deep Cone Bottom

Used Rolec 31,372 Gallon Jacketed Stainless Steel Tank Brewery Fermentation Vessel with Deep Cone Bottom. 304 stainless steel construction. Approximately 3,900mm (153.54") inner diameter x 8,500mm (334") straight side. Dish top, 55 degree cone bottom, approximately 2,400mm (94.48") deep. Rated 0.9 bar (13.05psi) at 40C (104 degrees F) internal, jacketed cone and 196" of straight side in (4) zones. Rated 3 bar (43.5psi) at 40C (104 degrees F). On (4) stainless steel legs with approximately 40" discharge height. Approximately 4,100mm (161.41") outside diameter, approximately 534" overall height, with 164.5" overall width and height prone position shipping dimension. Serial # 12088-17, Built 2013. Last used in a brewery.

Used Equipment Facts About This Machine
Manufacturer: Rolec
Type: Jacketed Storage / Fermentation Tank
Condition: Used
Year: 2013
Serial Number: 12088-17

Description
Used Rolec 118,745 Liter (31,372 Gallon) Stainless Steel Tank, engineered for large-scale brewery fermentation and temperature-controlled storage applications. This vessel features a dished top and deep 55° cone bottom, making it ideal for fermentation, yeast collection, and complete product discharge.
Constructed from 304 stainless steel, the tank includes a fully jacketed cone and four-zone jacketed straight side, allowing for precise thermal control during fermentation or processing. The system is internally rated to 0.9 bar (13.05 PSI) and the jacket is rated to 3 bar (43.5 PSI), ensuring safe and efficient operation.
Mounted on four stainless steel legs, the unit offers approximately 40" discharge clearance, ideal for gravity discharge and integration into brewery or industrial systems. Previously used in a brewery, this tank is well-suited for beverage production or other sanitary liquid applications.

Specifications

Manufacturer: Rolec

Machine Type: Jacketed Fermentation / Storage Tank

Capacity: 118,745 liters (31,372 gallons)

Construction: 304 Stainless Steel

Orientation: Vertical

Condition: Used

Year: 2013

Vessel Ratings

Internal Rating: 0.9 bar (13.05 PSI) @ 40°C (104°F)

Jacket Rating: 3 bar (43.5 PSI) @ 40°C (104°F)

Dimensions (Internal)

Diameter: Approx. 3,900 mm (153.54")

Straight Side Height: Approx. 8,500 mm (334")

Cone Bottom

Angle: 55°

Depth: Approx. 2,400 mm (94.48")

Dimensions (External / Shipping)

Outside Diameter: Approx. 4,100 mm (161.41")

Overall Height (Upright): Approx. 534"

Shipping (Prone Position):

Height: 164.5"
Width: 164.5"

Design Features

Dished top
Deep 55° cone bottom
Jacketed cone
(4) jacket zones on straight side (~196")
Mounted on (4) stainless steel legs
Approx. 40" discharge height

Applications

Brewery fermentation
Beer storage and conditioning
Beverage production
Industrial liquid storage
Chemical processing
Nutraceutical production
Pharmaceutical liquids
Temperature-controlled batch processing
Bulk liquid handling
Process holding tanks

What might this be used for

Fermenting beer and beverages
Separating yeast and solids via cone bottom
Heating and cooling fermentation batches
Maintaining precise process temperatures
Storing large volumes of liquid
Supporting continuous production systems
Providing buffer or surge capacity
Integrating into brewery operations
Enhancing product consistency
Handling sanitary liquid processing

Products this machine would be used for

Beer and fermented beverages
Beverage bases
Water and liquids
Syrups and concentrates
Nutraceutical liquids
Chemical solutions
Pharmaceutical liquids
Process fluids
Industrial liquids
Specialty formulations
