USED LEE IND TRIMIX TURBOSHEAR 600D12T

Manufacturer: Lee Industries
Model: Trimix Turboshear 600D12T
Type: Triple Motion Jacketed Mixing Kettle / Homogenizer
Condition: Used
Serial Number: B7488A2

Description

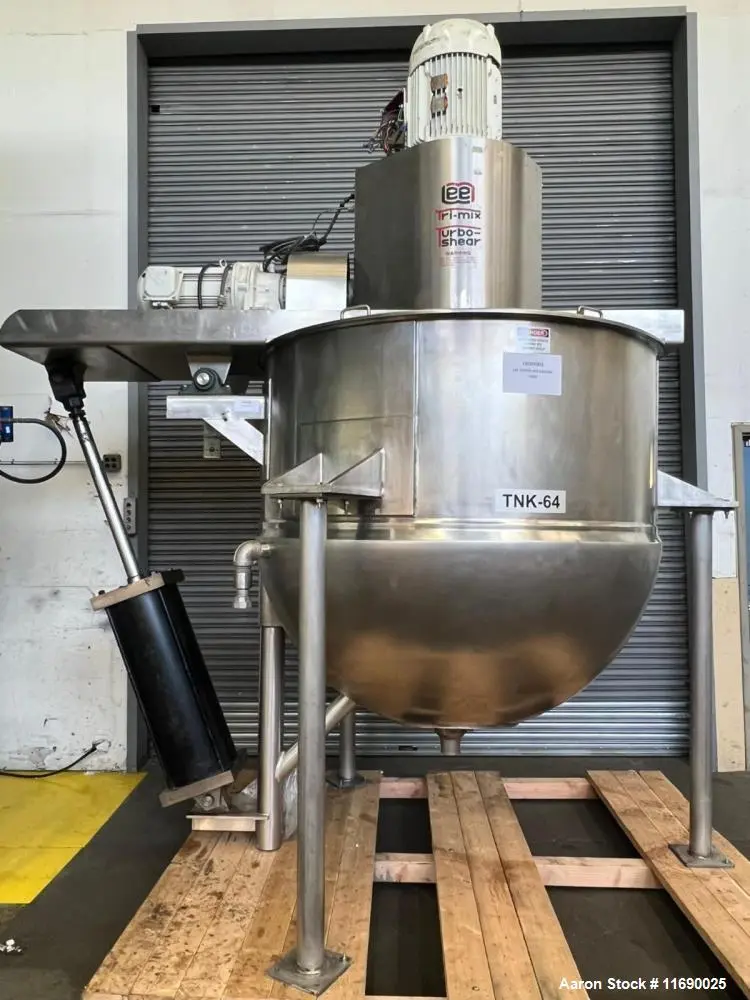

Used Lee Trimix Turboshear 600 Gallon Jacketed Mixing Kettle, designed for high-performance mixing, emulsification, and homogenization in demanding food, pharmaceutical, cosmetic, and chemical applications.

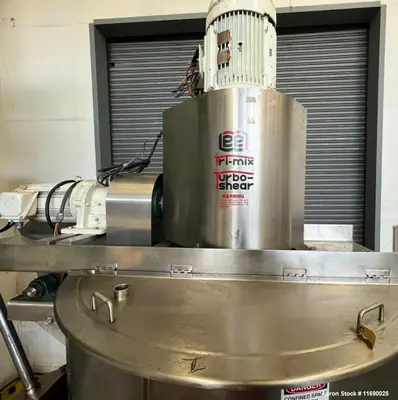

This unit features triple motion mixing technology, including counter-rotating anchor scraper agitation and a high-speed homogenizer, delivering superior product consistency and efficient heat transfer. The anchor scraper system, driven by a 15 HP motor, continuously sweeps the vessel walls, while the two-speed homogenizer (40/20 HP) provides high shear mixing for emulsions and fine particle dispersion.
Constructed with 316 stainless steel contact parts, this kettle is suitable for sanitary and corrosive applications. The vessel is jacketed for up to 90 PSI at 332°F, enabling precise heating and cooling for temperature-sensitive processes.
Additional features include a center bottom outlet with 3" Lee flush mount ball valve and a tilt-out bridge, allowing easy access for maintenance and cleaning. The unit is equipped with a control panel featuring push-button operator controls for straightforward operation.

Specifications

Manufacturer: Lee Industries

Model: Trimix Turboshear 600D12T

Machine Type: Jacketed Mixing Kettle / Homogenizer

Capacity: Approx. 600 gallons

Construction: 316 Stainless Steel (product contact)

Condition: Used

Mixing System (Triple Motion)

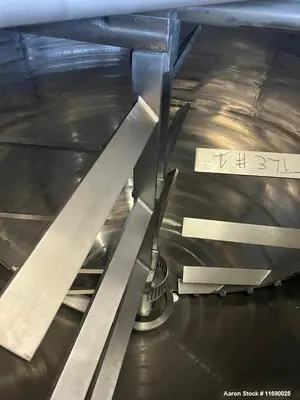

Counter-rotating anchor scraper agitation
High-speed homogenizer (Turboshear)
Designed for high shear and uniform mixing

Drive System

Anchor Agitator Motor: 15 HP

3 Phase / 60 Hz / 230–460 V

Homogenizer Motor: 40/20 HP (2-speed)

3 Phase / 60 Hz / 460 V

Jacket System

Pressure Rating: 90 PSI

Temperature Rating: Up to 332°F
Suitable for heating and cooling operations

Discharge & Features

3" center bottom outlet
Lee flush mount ball valve
Tilt-out bridge for access

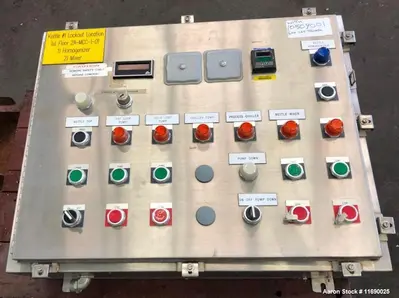

Control panel with push-button controls

Applications

Food and sauce processing
Dairy and cream production
Cosmetic and lotion manufacturing
Pharmaceutical emulsions
Chemical blending
Nutraceutical processing
High-viscosity product mixing
Heated batch processing
Emulsion and dispersion systems
Industrial mixing operations

What might this be used for

Mixing and homogenizing viscous products
Creating stable emulsions
Heating and cooling batch processes
Blending ingredients uniformly
Reducing particle size with high shear
Preventing product buildup with scraper agitation
Processing creams, sauces, and gels
Supporting batch production systems
Improving product consistency
Handling temperature-sensitive formulations

Products this machine would be used for

Sauces and dressings
Creams and lotions
Dairy products
Syrups and pastes
Cosmetic formulations
Pharmaceutical creams
Nutraceutical gels
Adhesives
Chemical emulsions
Specialty food products
