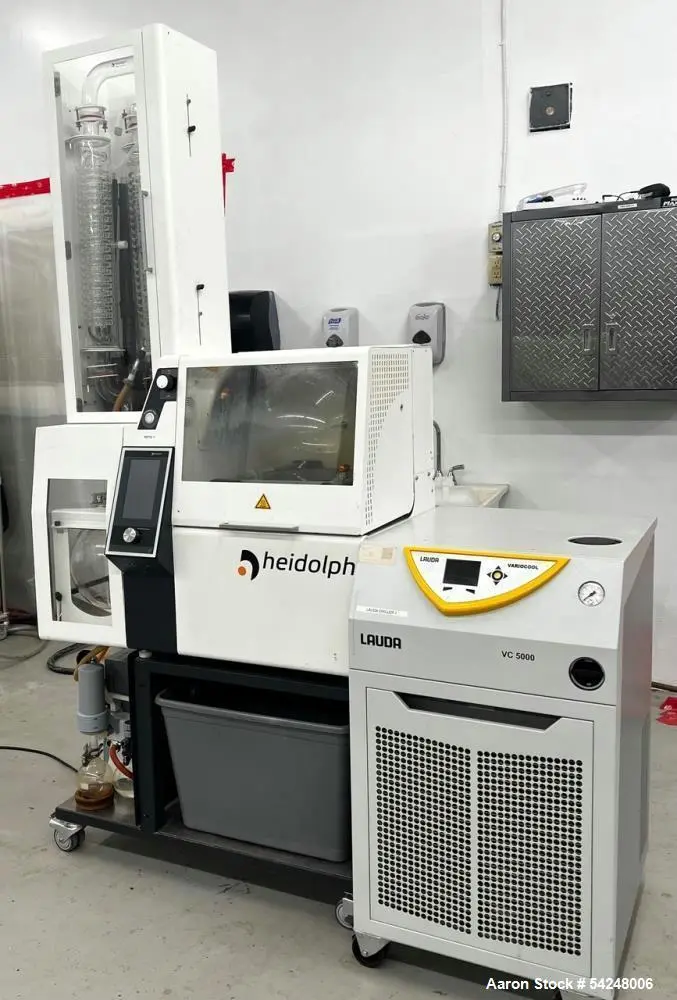

Used Heidolph 20L Hei-Vap Industrial S Rotary Evaporator System with Integrated Lauda Chiller for Efficient Large-Scale Solvent Recovery

Manufacturer: Heidolph Instruments GmbH
Chiller Manufacturer: Lauda

Product Description
The Heidolph Hei-Vap Industrial S 20L Rotary Evaporator is a robust, industrial-scale solvent recovery system designed for high-volume evaporation processes. This used unit features a 20-liter evaporating flask and A1C glassware configuration, making it ideal for large batch processing. Engineered for precision and efficiency, it offers a powerful 4,000 W heating capacity and a wide temperature range of 20–180°C for controlled evaporation.
The system includes automated height adjustment with a fast 45 mm/s lift speed and 180 mm vertical travel, enhancing operational safety and convenience. With a rotation speed range of 6–160 rpm, the Hei-Vap Industrial S ensures optimal thin-film formation for efficient solvent removal. Paired with a Lauda VC 5000 chiller utilizing R-404A refrigerant, this setup delivers reliable condensation performance in demanding industrial environments.

Specifications

Manufacturer: Heidolph Instruments GmbH

Model: Hei-Vap Industrial S

Condition: Used

Evaporating Flask Capacity: 20 Liters

Glassware Type: A1C configuration

Heating Capacity: 4,000 W

Heating Bath Temperature Range: 20°C to 180°C

Rotation Speed Range: 6 – 160 rpm

Height Adjustment Speed: 45 mm/s

Height Adjustment Travel: 180 mm

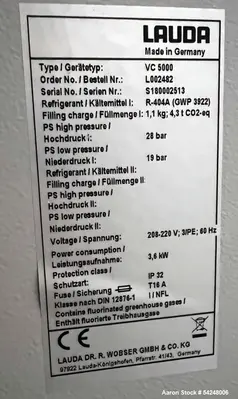

Included Chiller: Lauda VC 5000

Refrigerant Type: R-404A

Electrical Requirements: 3 Phase / 60 Hz / 208–220V

System Type: Industrial rotary evaporator (rotovap)

Applications

Solvent recovery and recycling
Large-scale evaporation processes
Chemical processing and distillation
Botanical extraction post-processing
Pharmaceutical production workflows
Concentration of liquid solutions
Industrial laboratory evaporation
Thin film evaporation processes
Pilot plant and production scale labs
Temperature-sensitive compound processing

What Products Would This Be Used For

Botanical extracts
Essential oils
Ethanol-based extracts
Chemical concentrates
Pharmaceutical intermediates
Cannabis and hemp extracts
Flavor and fragrance concentrates
Solvent-reduced solutions
Distilled compounds
Processed liquid concentrates
