Used ExtraktLAB E-140 CO2 Extraction System – 422 LBS/Day Supercritical Botanical Extractor

Manufacturer: ExtraktLAB
Model: E-140
Type: Supercritical CO2 Extraction System
Condition: Used

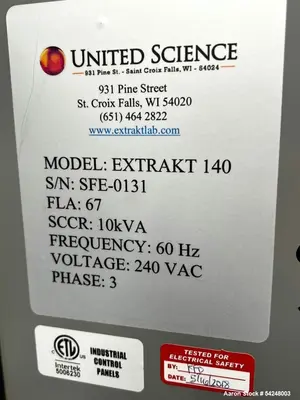

Serial Number: SFE-0131

Description

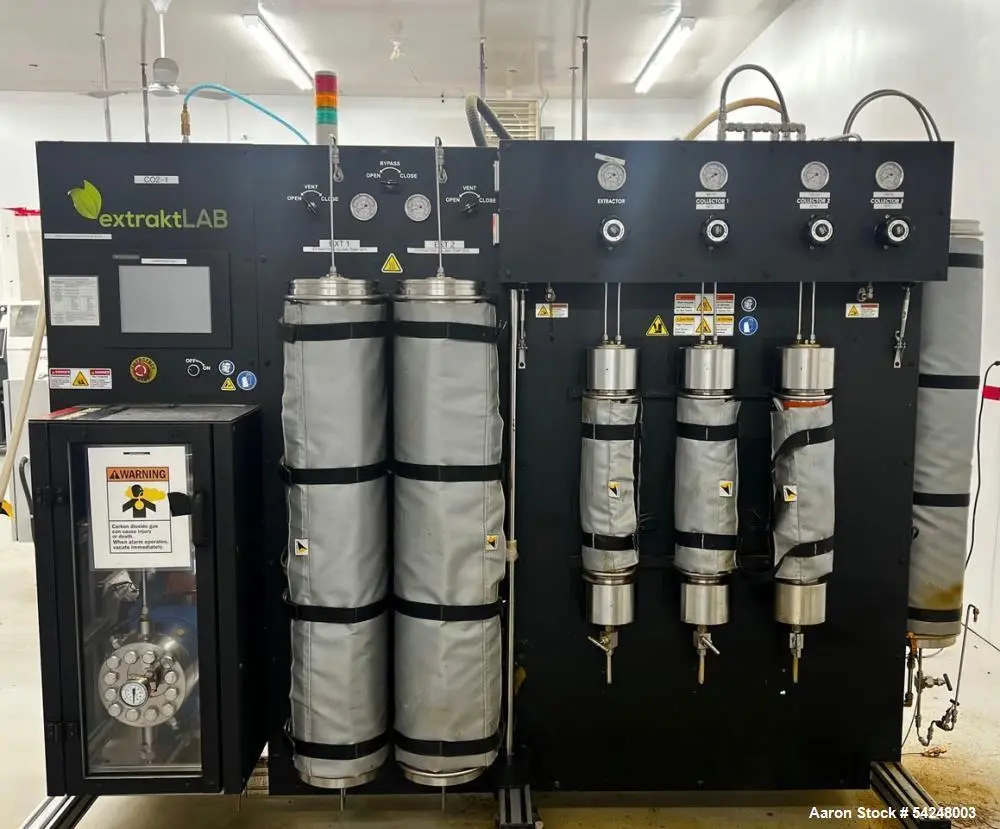

Used ExtraktLAB E-140 Supercritical CO2 Extractor, engineered for high-throughput botanical and oil extraction using advanced supercritical CO2 technology. With a processing capacity of up to 422 lbs (192 kg) per day, this system is ideal for commercial-scale extraction operations.
Operating at pressures up to 5,000 PSI, the E-140 delivers efficient and precise extraction of oils, active compounds, and botanical materials. The system features dual 20L extraction vessels and three 2.5L collection vessels, allowing for continuous processing and optimized yield.
A 20L CO2 recycler vessel is included to improve operational efficiency by reducing CO2 consumption. The system is controlled through an HMI interface, enabling operators to monitor and adjust process parameters with ease.
With a compact 24 square foot footprint, this unit is designed for efficient facility integration while maintaining high production capacity.

Specifications

Manufacturer: ExtraktLAB

Model: E-140

Machine Type: Supercritical CO2 Extractor

Condition: Used

Serial Number: SFE-0131

Performance

Throughput: Up to 422 lbs/day (192 kg/day)

Max Operating Pressure: 5,000 PSI

Extraction System

(2) 20L extraction cylinders
(3) 2.5L collection cylinders
20L CO2 recycler vessel

Controls

HMI operator interface
Automated process control

Electrical

Power: 3 Phase / 60 Hz / 208–240 V

FLA: 67 amps

Physical Details

Footprint: Approx. 24 sq ft

Applications

Botanical extraction
Essential oil production
Hemp and cannabis extraction
Nutraceutical processing
Pharmaceutical extraction
Flavor and fragrance production
Herbal extraction
Food ingredient extraction
Natural product processing
Industrial extraction

What might this be used for

Extracting oils from plant biomass
Producing high-purity botanical extracts
Processing hemp or plant-based materials
Recovering valuable compounds
Creating concentrates and extracts
Supporting commercial extraction operations
Improving yield and efficiency
Operating closed-loop CO2 systems
Reducing solvent usage
Producing consistent extraction results

Products this machine would be used for

Botanical oils
Essential oils
Hemp extracts
Plant-based concentrates
Nutraceutical compounds
Herbal extracts
Flavor extracts
Fragrance oils
Specialty extracts
Natural compounds
