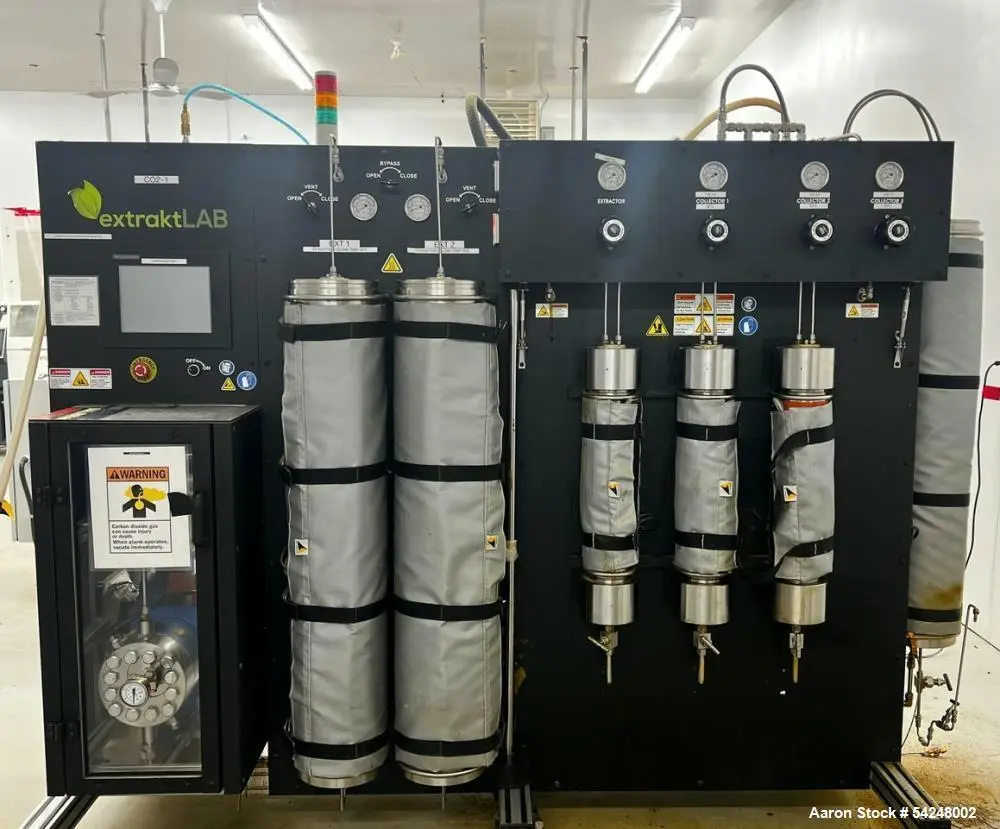

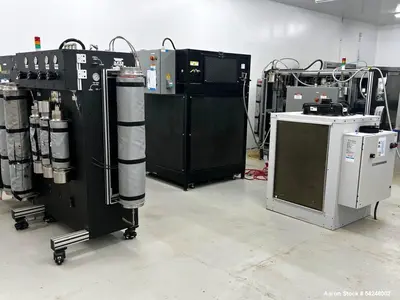

Used ExtraktLAB E-140 Supercritical CO2 Extractor – 422 LBS/Day High-Pressure Extraction System

Manufacturer: ExtraktLAB
Model: E-140
Type: Supercritical CO2 Extraction System
Condition: Used

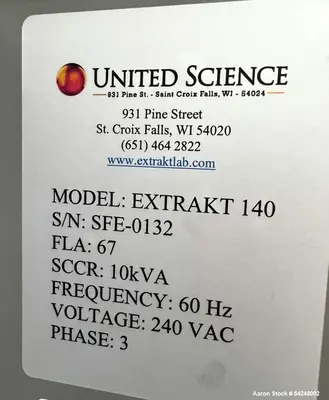

Serial Number: SFE-0132

Description
Used ExtraktLAB E-140 Supercritical CO2 Extractor, designed for high-efficiency botanical extraction and oil separation using advanced supercritical CO2 technology. This system is capable of processing up to 422 lbs (192 kg) of biomass per day, making it ideal for commercial-scale extraction operations.
Operating at pressures up to 5,000 PSI, the E-140 ensures efficient extraction of oils, compounds, and active ingredients. The system includes dual 20L extraction vessels and three 2.5L collection vessels, allowing for continuous operation and high throughput.
Also included is a 20L CO2 recycler vessel, improving efficiency by reducing CO2 consumption. The system is controlled via an HMI interface, providing precise control over pressure, temperature, and process parameters.
This unit comes complete with an ExtraktLAB cart and tank cage, offering mobility and safe storage for CO2 tanks within a compact 24 square foot footprint.

Specifications

Manufacturer: ExtraktLAB

Model: E-140

Machine Type: Supercritical CO2 Extractor

Condition: Used

Serial Number: SFE-0132

Performance

Throughput: Up to 422 lbs/day (192 kg/day)

Max Operating Pressure: 5,000 PSI

Extraction System

(2) 20L extraction cylinders
(3) 2.5L collection cylinders
20L CO2 recycler vessel

Controls

HMI operator interface
Automated process control

Electrical

Power: 3 Phase / 60 Hz / 208–240 V

FLA: 67 amps

Physical Details

Footprint: Approx. 24 sq ft
Includes ExtraktLAB cart and tank cage

Applications

Botanical extraction
Essential oil production
Hemp and cannabis extraction
Nutraceutical processing
Pharmaceutical extraction
Food ingredient extraction
Flavor and fragrance production
Herbal extraction
Natural product processing
Industrial extraction applications

What might this be used for

Extracting oils and active compounds from biomass
Producing high-purity botanical extracts
Processing plant-based materials
Recovering valuable compounds
Creating concentrates and extracts
Supporting commercial extraction operations
Improving yield and efficiency
Operating closed-loop CO2 systems
Reducing solvent usage
Producing consistent extraction results

Products this machine would be used for

Botanical oils
Essential oils
Hemp extracts
Cannabis extracts
Nutraceutical compounds
Herbal extracts
Flavor extracts
Fragrance oils
Plant-based concentrates
Specialty extracts
