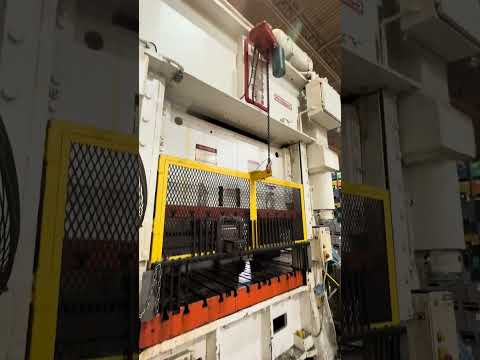

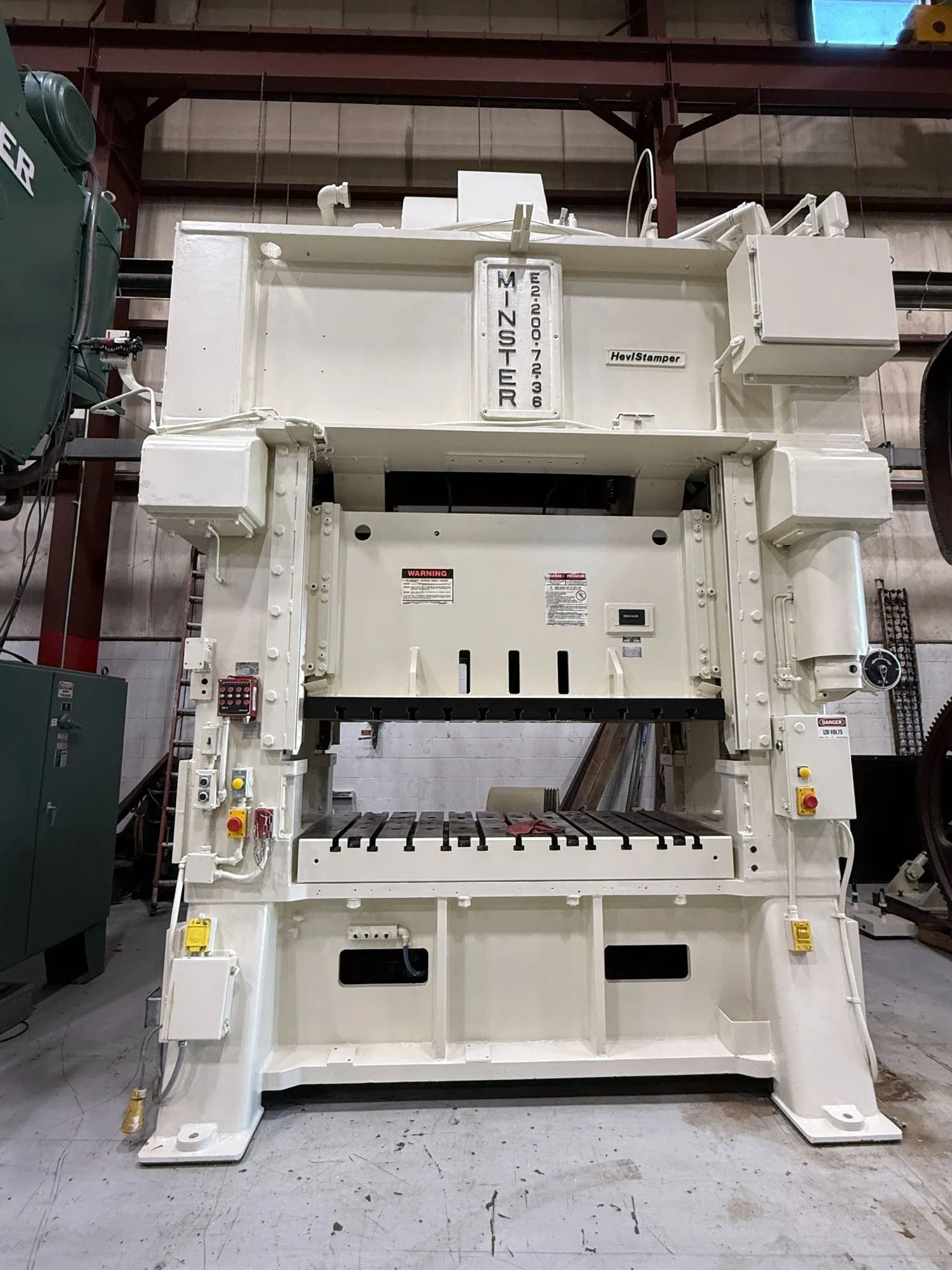

Used 200 Ton Minster HeviStamper, Model E2-200. Straight side mechanical stamping press with a 6" stroke, 19.5" shut height, and 72"x36" bed area. Operates at 60-120 SPM, ideal for diverse stamping needs.
| Tonnage | 200 T | 181.437 t |
| Stroke | 6" | 152.4 mm |
| Shut Height | 26.5" | 673.1 mm |
| Bed area (Left to right) | 72" | 1,828.8 mm |
| Bed area (Front to back) | 36" | 914.4 mm |
| SPM min. | 60 strokes/min. | 60 strokes/min. |
| SPM max. | 120 strokes/min. | 120 strokes/min. |
| Adjustment | 6" | 152.4 mm |
Capacity: 200 US Tons
Model Number: E2-200
Bed Area: 72” x 36”
Slide Area: 72” x 36”
Stroke: 6”
Adjustment: 6”
Shut Height: 26 1/2” SDAU
Bolster Plate Thickness: 7”
Strokes per Minute: 60 - 120
Overall Height: 14’5” floor to the top of flywheel
Footprint Dimensions: 107 ½” LR x 57” FB
Floor Standing
Air Clutch and Brake
Air Counterbalances
8 Point Gibbing
Recirculating Lube System
T-Slotted Ram and Bolster
T-Slots 6" Centers- Standard 1" T-Slots
Electrical Control Cabinet
Variable Speed Motor
Light Curtains
Wintriss Smart Pac 2 Mounted on Control Console
WPC Clutch and Break Control
Wintriss DSI 2 Die Protection
Palm Button Stand
Vibration Isolation Levelers
Motorized Ram Adjustment
Main Motor Fwd./Reverse
Main Motor: 30 HP @ 1800 RPM
