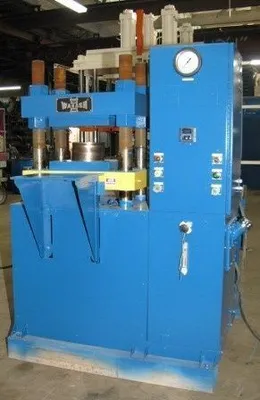

USED WABASH 100-1515

100 Ton Wabash, Model 100-1515, 15" x 15" steel plates, 7" stroke, 5.5" - 15.5" Daylight

Wabash MODEL 100-1515-SM.

SET UP WITH 15” X 15” X 1.25” STEEL PLATES EACH WITH 1” THICK INSULATION UNDERNEATH (NO HEATED PLATENS OR TEMP CONTROL).
MAX CLEARANCE BETWEEN THE POSTS IS 18.5” L TO R X 9” F TO B – REDUCED BY APPROX 1.5” DUE TO NUTS UNDER CROWN*.
OVERALL L TO R IS 28”.
CLAMP CYLINDER IS 10” BORE WITH 7” MAX STROKE.
DAYLIGHT IS ADJUSTABLE FROM APPROX 5.5” TO 15.5” WITH THE PLATES AND INSULATION INSTALLED; 10.5” TO 20.5” WITHOUT.
FULLY GUIDED WITH 4” BUSHINGS ON 3” DIAMETER POSTS.
OPERATOR HEIGHT IS APPROX 40.5” WITH THE PLATE.
SELF-CONTAINED RELAY CONTROL SYSTEM:
WIRED FOR 480/60/3
PALM BUTTONS
ADJUSTABLE LIMIT SWITCHES
TIMER (MINUTES); AUTO/MANUAL/OPEN
“CLAMP SEAL” LAMP
9 FLA; ETC…
SELF-CONTAINED HYDRAULIC SYSTEM:
3 HP MOTOR (230/460 V; 1800 RPM)
RACINE AND VICKERS PUMPS
WATER TYPE HEAT EXCHANGER
25 GALLON RESERVOIR
ADJUSTABLE PRESSURE; ETC…
LEXAN GUARDS ON SIDES AND REAR.
OPTIONAL 15” X 15” TABLE ON FRONT.
OVERALL DIMENSIONS APPROX 56” X 60” (INCLUDING TABLE) X 70” TALL.
APPROX 7,500 POUNDS.
ELECTRICAL PRINT; HYDRAULIC PRINT; OEM BILL OF MATERIAL.

This machine is being sold as-is where-is
All machinery specifications must be independently verified by buyer.
FOB Michigan Shipping Point
