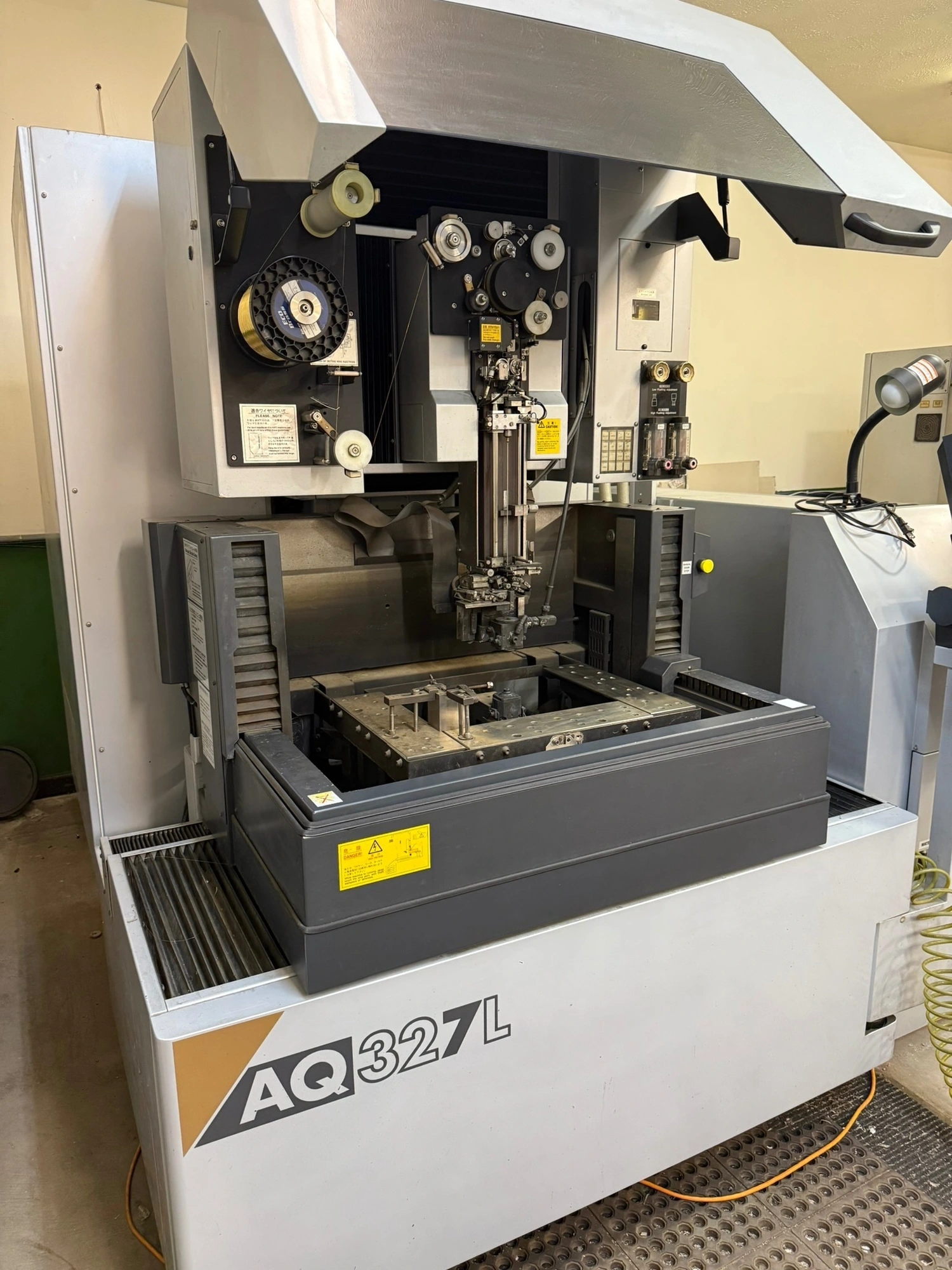

USED 2008 SODICK AQ327L

Wire EDM in used condition. Features CNC Control LP1W, dielectric filtration, automatic temperature control, USB/LAN, and more. Specs: X/Y/Z travel 14.5”x10.6”x9.8”, max workpiece weight 770 lbs. Power: 200/220 VAC, 13 kVA.

X/Y/Z Axes Table Travel 14.5” x 10.6” x 9.8”
Work Tank Inside Dimensions 34” x 25.3”
Maximum Work Piece Weight 770 lbs.
Taper Angle +25 @ 3.9”
Floor Layout (W x D x H) 83.6” x 86.6” x 83.4”
Max Machining Current 40 Amperes
Power Requirements 200 / 220 VAC +/- 10%, 50/60 Hz
3 Phase - 13 kVA
Air Requirement 80 / 100 PSI

CNC Control LP1W
Dielectric Filtration System Complete
Automatic Temperature Control Unit Standard
Communication USB / LAN
Submersible Flushing Standard
Automatic Wire Threading Standard
