| Swing | 30.31" | 769.87 mm |
| Machining Length | 29.9" | 759.46 mm |
| # Axis | 2 | 2 |
| Chuck Size | 12" | 304.8 mm |
| Power | 35 hp | 26.1 kW |
| Max RPM | 2,000 RPM | 2,000 RPM |
| Turning Dia | 21.65" | 549.91 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Takisawa Turn-i Fanuc CNC Control) | CNC (Takisawa Turn-i Fanuc CNC Control) |
| Dimensions | 157″ X 82″ X 85″ High Approx. | 157″ X 82″ X 85″ High Approx. |
| Weight | 19,840 lbs. Approx. | 19,840 lbs. Approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

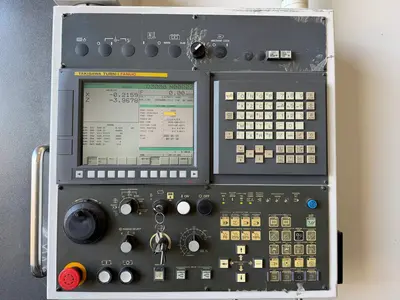

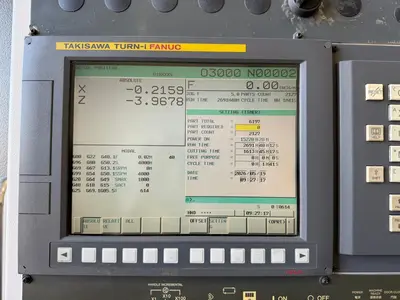

Takisawa Turn-i Fanuc CNC Control
PCMCIA Card Interface

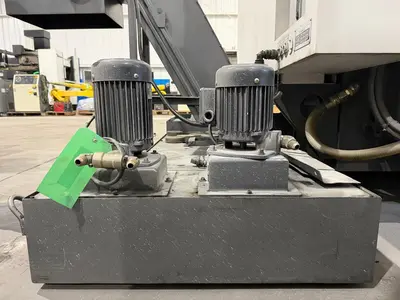

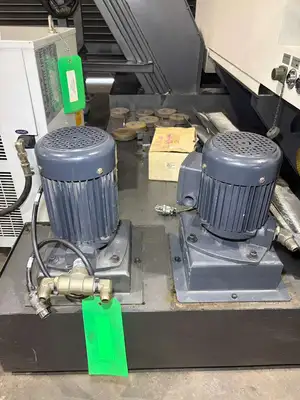

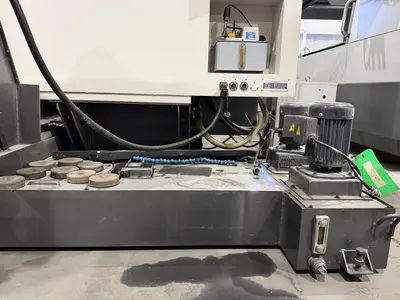

Coolant Tank
Capacity:
Max Turning Diameter: 21.65″
Max Turning Length: 29.90″
Max Swing Over Bed: 30.31″
Max Swing Over Saddle: 25.19″
Spindle Bore: 5.0″
Travels:
X-Axis Travel: 11.41″
Z-Axis Travel: 31.49″
X-Axis Rapid Travese Rate: 630 IPM
Z-Axis Rapid Travese Rate: 787 IPM
Spindle:
Spindle Nose: A2-11
Spindle Bore: 5.0″
Spindle Speed: 2000 RPM
Spindle Motor: 35 HP
Turret:
Capacity: 10 Stations
Turning Tool Size: 1.26″
Boring Tool Diameter: 1.96″
Tailstock:
Tailstock Travel: 31.49″
Tailstock Taper: MT-5
Tailstock Spindle Diameter: 7.08″
Tailstock Spindle Travel: 5.90″
General:
Power Source: 220v / 50/60 Hz / 3-Phase
Overall Dimensions: 157″ X 82″ X 85″ High Approx.
Weight: 19,840 lbs. Approx.
12″ 3-Jaw Hydraulic Chuck (Capable 15″ Chuck)
5.0″ Big Bore Spindle
10 Station Automatic Turret
Tailstock

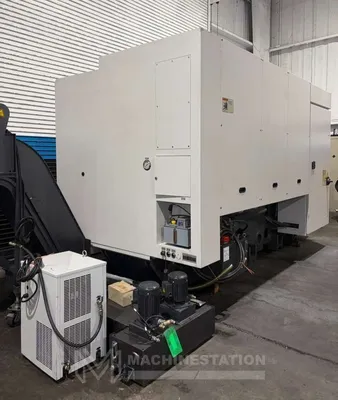

Spindle Chiller Unit
Chip conveyor
Foot Switch
Leveling Pads
Books & Manuals
