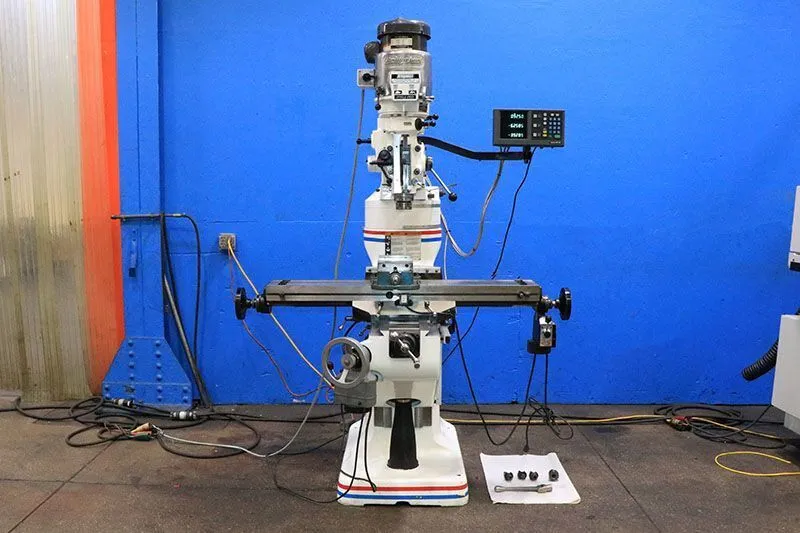

USED 2000 BRIDGEPORT SERIES 1

Bridgeport Series I Vertical Milling Machine, 2000. Equipped with AcuRite digital readout, servo power feeds, and Bijur lubrication. Features 9"x48" table, variable speed 60-4,200 RPM, and a 2HP spindle motor.

TABLE SIZE .............................. 9" X 48"
NUMBER OF T-SLOTS ....................... 3
LONGITUDINAL TABLE TRAVEL ............... 36"
CROSS TRAVEL ............................ 12"
QUILL TRAVEL ............................ 5"
KNEE TRAVEL ............................. 16"
RAM TRAVEL .............................. 12"
MAX/MIN DISTANCE, SPINDLE NOSE TO TABLE . 18-1/2" / 2-1/2"
MAX/MIN DISTANCE, CENTERLINE OF SPINDLE.
TP FACE OF COLUMN ................... 18-3/4" / 6-3/4"
HEAD TILT, LEFT & RIGHT ................. 90 DEGREES
HEAD TILT, FRONT & REAR ................. 45 DEGREES
INFINITELY VARIABLE SPEED RANGE ......... 60-4,200 RPM
SPINDLE TAPER ........................... #30 QUICK CHANGE
MAX COLLET CAPACITY ..................... 3/4"
QUILL TRAVEL ............................ 5"
QUILL FEEDS ........................ 0.0015", 0.003", 0.006"
APPROXIMATE WEIGHT ...................... 2,000 LBS

ACURITE THREE AXIS DIGITAL READOUT
FOR LONGITUDINAL, CROSS TABLE & KNEE TRAVLES
MITUTOYO DIGITAL READOUT FOR QUILL TRAVEL
SERVO POWER FEED FOR LONGITUDINAL TRAVEL
SERVO POWER FEED FOR VERTICAL KNEE TRAVEL
CHROME WAYS
4" RISER BLOCK
6" KURT MODEL: D60 ANGLOCK VISE
BIJUR AUTOMATIC LUBRICATION SYSTEM
BRIDGEPORT SERIES I MILLING HEAD S/N: J313109
2 HORSE POWER SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

CONDITION: **** SUPERB ****
