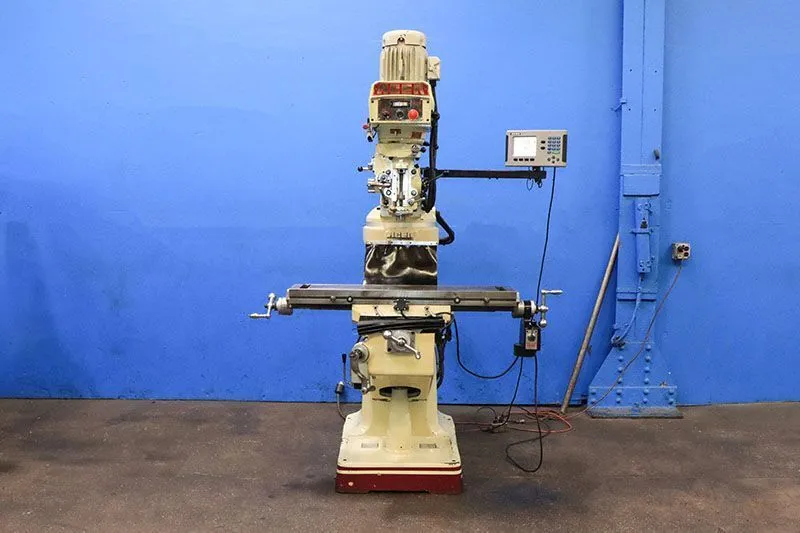

ACER EVS-3VS Vertical Milling Machine, 2003. Features a 9" x 42" table, 3-axis digital readout, servo power feed, AC spindle drive, and 3 HP motor. Perfect for precise operations. Located in NJ, inspect under power. 79"x74"x90", 2,400 lbs.
| Table-W | 9" | 228.6 mm |
| Table-L | 42" | 1,066.8 mm |
| Travel-Long | 28" | 711.2 mm |
| Travel-Cross | 12" | 304.8 mm |
| Power | 3 hp | 2.2 kW |
| RPM | 4,500 RPM | 4,500 RPM |
| Taper | R-8 | R-8 |
| Dimensions | 79" x 74" x 90"H | 79" x 74" x 90"H |
| Weight | 2,400 LBS | 2,400 LBS |
TABLE WORKING SURFACE ......................... 9" X 42"
NUMBER OF T-SLOTS (WIDTH) ..................... 3 (5/8")
RANGE: LONGITUDINAL, MANUAL (X) ............... 28"
CROSS (Y) ........................ 12"
VERTICAL, KNEE ................... 16"
QUILL (Z) ........................ 5"
RAM TRAVEL .................................... 20"
HEAD TILT, LEFT AND RIGHT ..................... 90 DEGREES
HEAD TILT, FRONT TO REAR, EACH WAY ............ 45 DEGREES
TURRET ROTATION ............................... 360 DEGREES
(3) POWER QUILL FEEDS ............ .0015, .003, .006 I.P.R.
QUILL DIAMETER ................................ 3-3/8"
INFINITELY VARIABLE SPINDLE SPEEDS ............ 60 - 4,500 RPM
SPINDLE TAPER ................................. R-8
MAXIMUM COLLET CAPACITY ....................... 3/4"
APPRROXIMATE DIMENSIONS .................. 79" x 74" x 90"H
APPROXIMATE WEIGHT ............................ 2,400 LBS.
AC FREQUENCY INVERTER SPINDLE DRIVE
ACU-RITE TWO-AXIS DIGITAL READOUT
SERVO POWER FEED FOR LONGITUDINAL TABLE TRAVEL
HARDENED AND GROUND DOVETAIL WAYS FOR X & Y AXES
MEEHANITE CASTING
ONE-SHOT LUBRICATION SYSTEM
3 HORSE POWER SPINDLE DRIVE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
