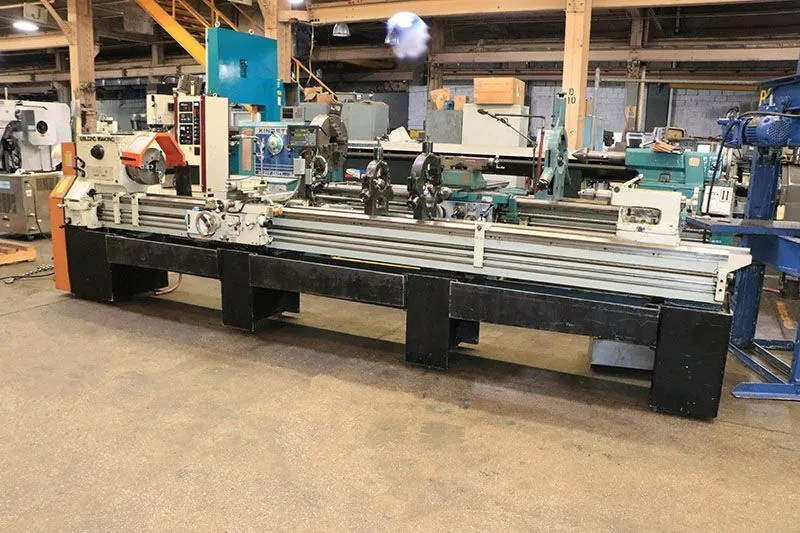

USED 1992 LEBLOND MAKINO REGAL SERVO-SHIFT

19" x 150" LEBLOND MAKINO REGAL SERVO-SHIFT lathe from 1992. Features 19-1/4" swing over bed, D1-8" camlock spindle nose, and 10 HP motor. Equipped with digital readout, taper turning attachment, and more for precise operations.

SWING OVER BED ...................... 19-1/4"
SWING OVER CROSS SLIDE .............. 12-1/4"
DISTANCE BETWEEN CENTERS ............ 150"
SPINDLE NOSE ........................ D1-8" CAMLOCK
HOLE THRU SPINDLE ................... 3-1/16"
WIDTH OF BED ........................ 14-3/8"
SPINDLE SPEED RANGE (12) ............ 40 - 1600 RPM
LONGITUDINAL FEED RANGE (48) ........ .0018" - .104" IPR
CROSS FEEDS HALF THE VALUES OF LONGITUDINAL
THREADING RANGE ENGLISH (48) ........ 2 - 112 TPI
THREADING RANGE METRIC (40) ......... 0.25 - 12 mm
TAILSTOCK SPINDLE TRAVEL ............ 7"
TAILSTOCK SPINDLE TAPER ............. #4 MT
APPROX WEIGHT ....................... 6,500 LBS
APPROX DIMENSIONS ................... 214"L x 50"W x 51"H

- REPLACEABLE HARDENED BED WAYS
- INCH/METRIC THREADING
- TAPER TURNING ATTACHMENT
- NEWALL TOPAZ TWO AXIS DIGITAL READOUT
- 12" 3-JAW CUSHMAN CHUCK
- (2) ROLLER TYPE STEADY RESTS
- THREAD DIAL
- MICROMETER CARRIAGE STOP
- COOLANT SYSTEM WITH REMOVABLE CHIP PANS
- 10 HORSE POWER MAIN MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
