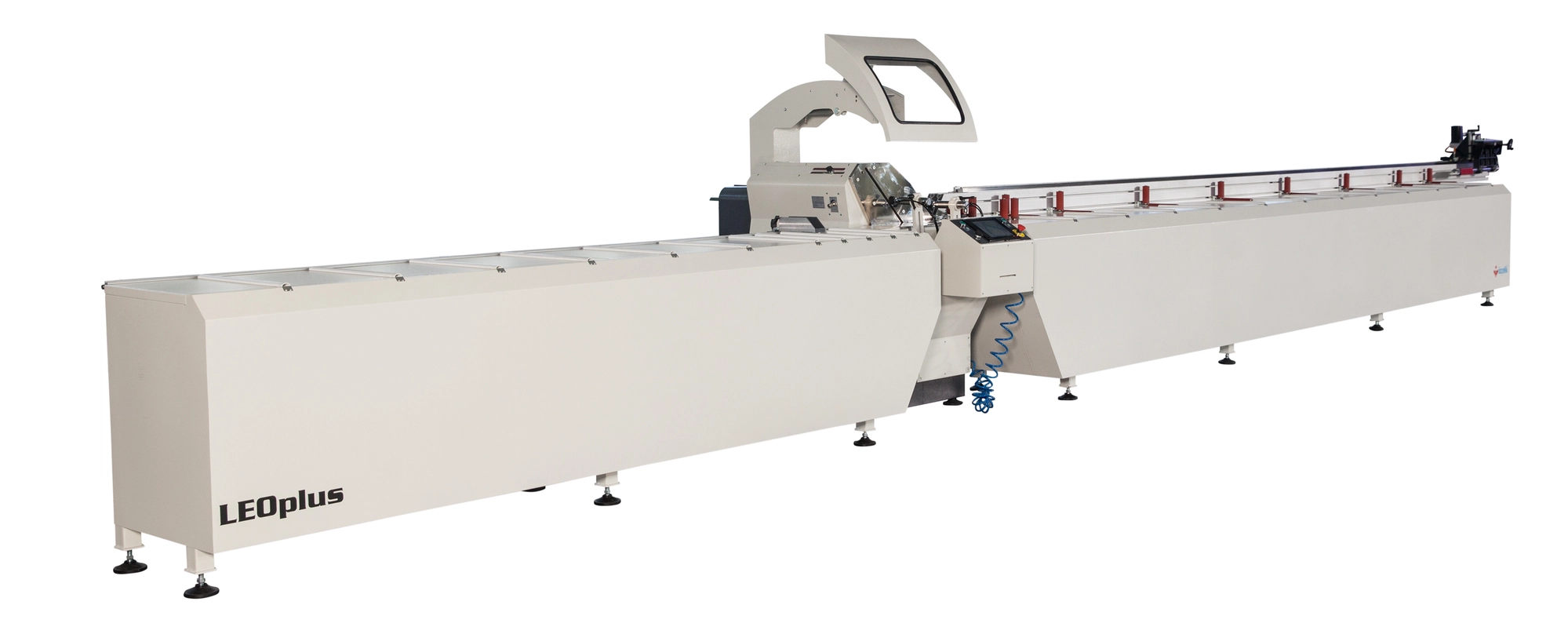

FEATURES
Used for cutting processes of aluminum and PVC profiles.
Hydro-Pneumatic cutting
Servo controlled rotation axis
Automatic positioning at all degrees between -22.5° and +45° with servo motion system

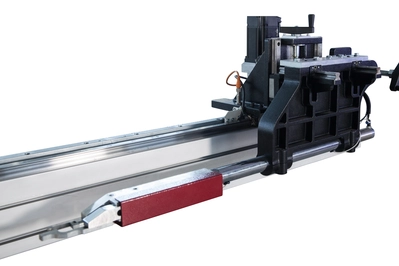

Pneumatic holder robot with servo axis control and manual adjustment feature for accurate positioning of profiles
Industrial PC with Windows based touchscreen and easy to use practical interface
Remote access
Data transfer over remote network connection, Ethernet and USB
Batch processing and precision cutting
Secure cutting by the cover equipped with a safety sensor
Process programming and large memory
Double hand control application
Adjustable saw blade travel speed
Ability to control saw blade travel distance
Ability to perform cutting automatically from the list or manually
Automatic horizontal clamps
90° and angular slicing
Automatic size calculation for mold cutting
Output conveyor with manual gauge
Resume cutting feature (emergency stops, blackouts, etc.) provides cutting advice by making a full scan in cutting list and detecting uncut pieces.
Ability to send bar code information of different profile batches by profile list input without using a cutting optimization program and ability to choose profile from the list in batch cutting
Ability to use full length of loaded profile (Excluding angle and cutting waste)
Standard Equipment
Output conveyor with manual gauge
22" saw blade (1 pcs)
Cooling system
Optional Equipment
Barcode printer
Dust vacuuming system
Profile height measurement
Digital adjustment of saw blade travel distance
Vertical clamp
Servo controlled vice gripper
