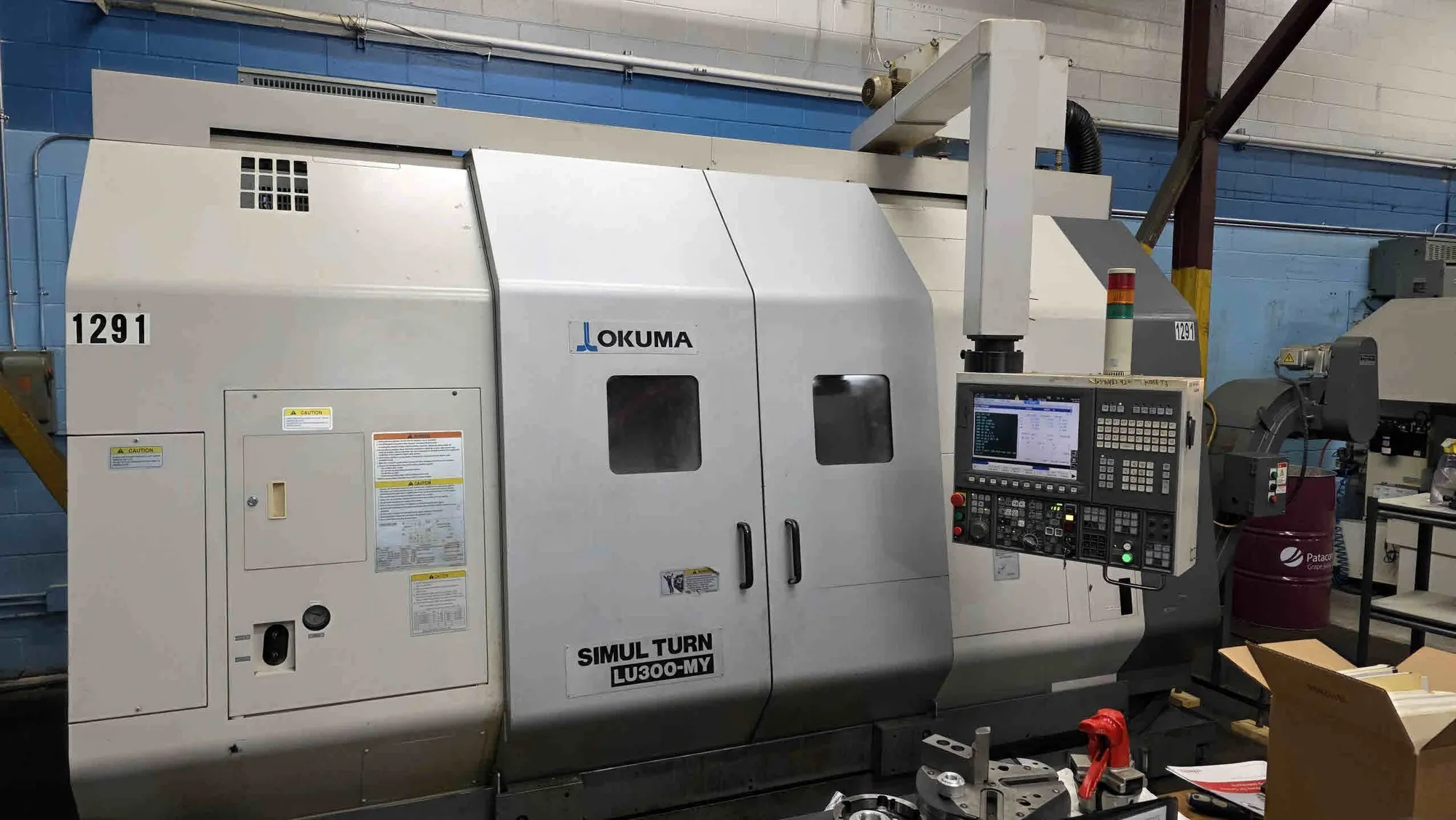

USED OKUMA Simul Turn LU300-MY
Overview
Description
Machine is in Excellent Condition & Ready For Inspection.
Specifications
| # Axis | 6 | 6 |
|---|---|---|
| Swing | 20.87" | 530.1 mm |
| Machining Length | 41.33" | 1,049.8 mm |
| Bar Capacity | 3.15" | 80.01 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 3,800 RPM | 3,800 RPM |
| Turning Dia | 13.39" | 340.11 mm |
| Tailstock | 'Yes' | 'Yes' |
| Control | CNC (OSP-P200LA) | CNC (OSP-P200LA) |
| Dimensions | 197"L x 96"W x 101"H | 197"L x 96"W x 101"H |
| Weight | 20,000 Lbs | 20,000 Lbs |
Specifications:
Model - LU300-MY
Year - 05/2013
Swing Over Bed - 20.87”
Swing Over Carriage - 16.14”
Max Turning Diameter - 13.39”
Max Work Piece Length - 41.33”
Cross Slide Travel X Axis - 11.03”
Longitudinal Travel Z Axis - 44.83”
Y Axis Travel - (+)2.76” to (-)1.97”
C Axis Indexing - 360°
Spindle Bore - 3.54”
Bar Capacity - 3.15”
ATC - 12
Spindle Speeds (Infinity Variable) - 38 to 3800 RPM
Live Milling Tool Speeds - 45 to 4500 RPM
Control - Okuma
Main Motor - 30/20 HP
Live Tool Milling Motor - 9.3/4.4 HP
Electrics - 220V/480V/3PH/60HZ
Made In - Japan
Approximate Weight - 20,000 LBS
Approximate Overall Dimension - 197”L x 96”W x 101”H
Equipped With:
Okuma OSP-P200LA 6 Axis CNC Control

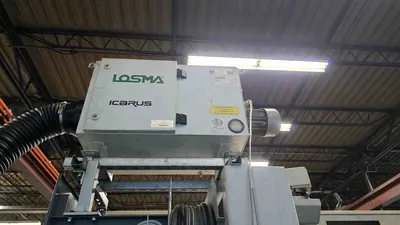

Losma Icarus Mist Collector/Air Purification Unit
Live Tooling With Y Axis

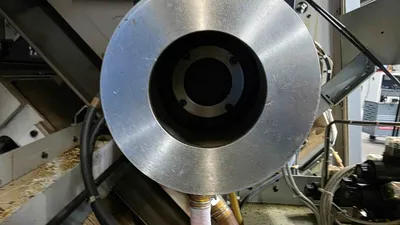

Hydraulic Collet Chuck

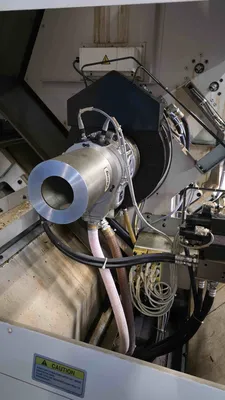

Hydraulic Steady Rest
Hydraulic Tailstock

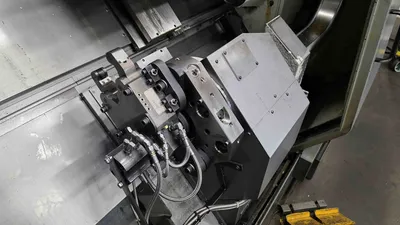

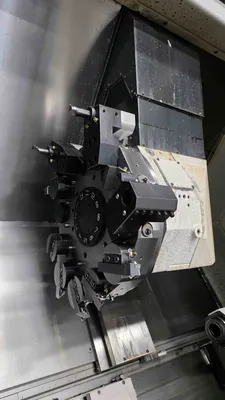

12 Position Turret
Coolant System

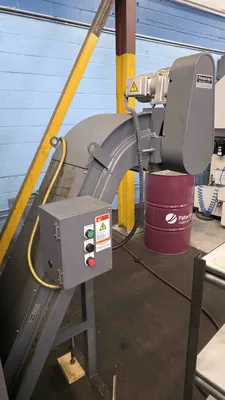

Chip Conveyor
Foot Pedals
Work Light
Fully Enclosed
Manual Books
