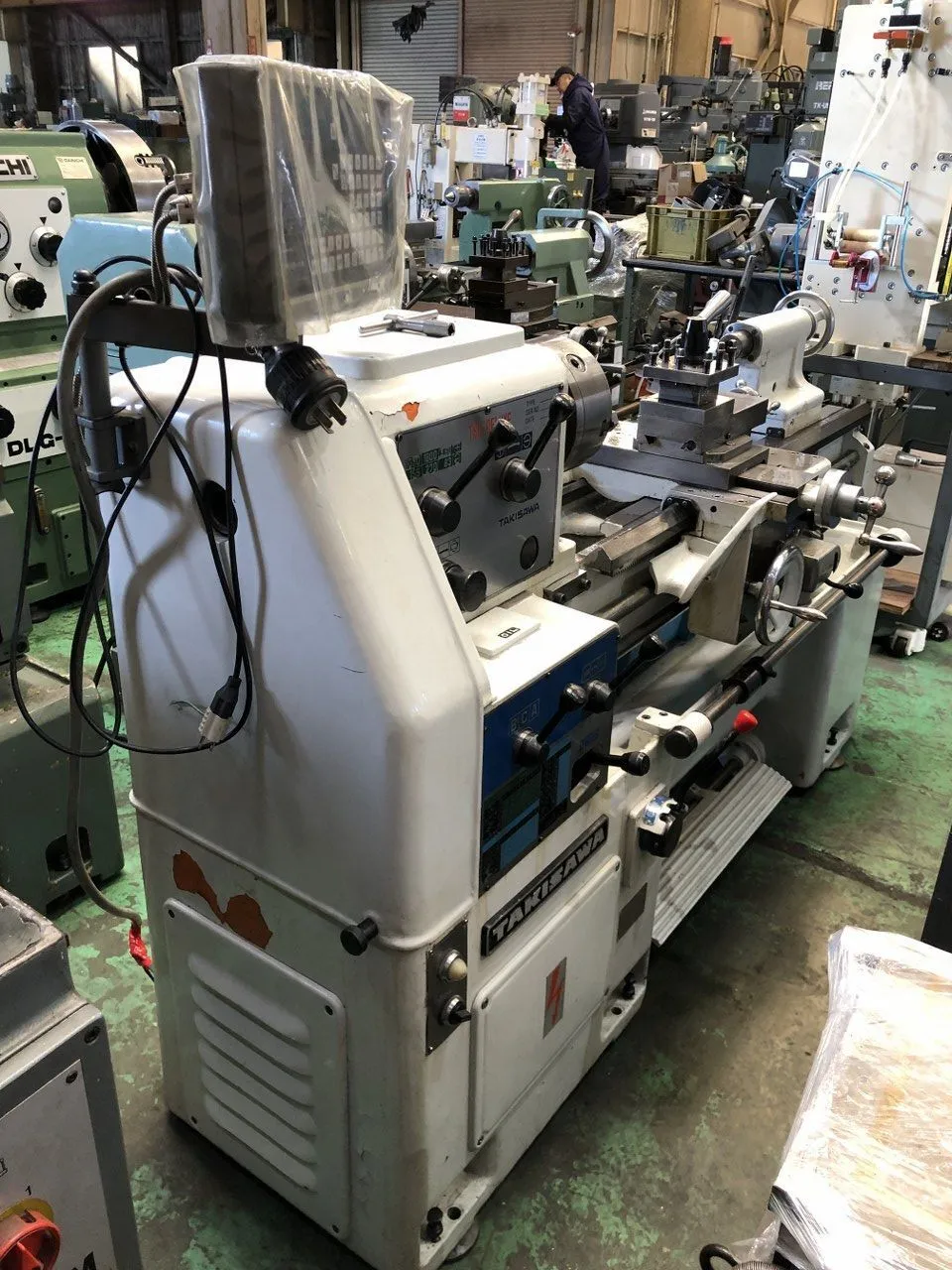

Takisawa is a well known Japanese toolroom lathe. and as they say they don't make them like this anymore.
We recently imported this machine from Japan for the client who prefers a well made older machine over a new Chinese made machine.
| Swing | 14.17" | 359.92 mm |
| Swing Over Cross Slide | 8.27" | 210.06 mm |
| Centers | 31.5" | 800.1 mm |
| Spindle Bore | 1.38" | 35.052 mm |
| Power | 5 hp | 3.7 kW |
| RPM | 1,800 RPM | 1,800 RPM |
Swing Over Bed mm 360
Swing Over Cross Slide mm 210
Turning Length mm 800
Spindle Speed Range kW
83～1800 [OP. 70～1500, 92～2000]
Number of Speed Changes 6
Spindle Motor kW 2.2 [OP. 3.7]
Range of Metric Thread Type/mm 24 / 0.5～14
Range of Inch Threads Type/TPI 31 / 2～56
Longitudinal Feeds, Number Type 36
Longitudinal Feeds, Range mm/rev. 0.041～2.22
Cross Feeds mm/rev. 1/2 of Longitudinal Feeds
Machine Height mm 1101
Floor Space Required (Depth) mm 725
Floor Space Required (Width) kmm 1872
Machine Weight kg 1100
