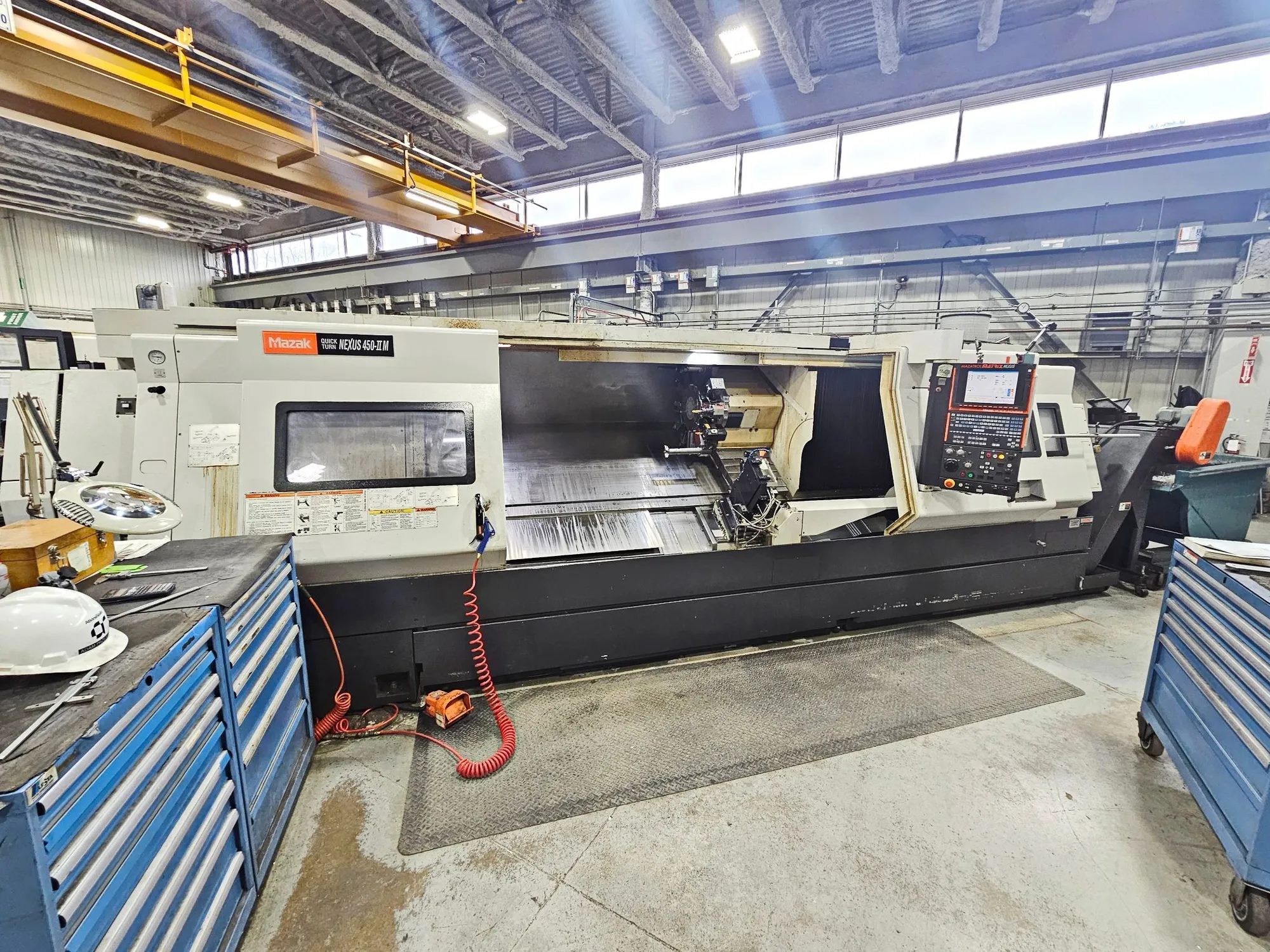

USED 2007 MAZAK QUICK TURN NEXUS 450-II M-3000U
Overview
Description
2007 Quick Turn Nexus 450 II M 3000u CNC Lathe, 18" Kitagawa Power Chuck, Live Tooling, Hydraulic Programmable Tailstock, Long Bed, Big Bore, Hydraulic Steady Rest, Oil Mist Collector, Chip Conveyor, Assorted Live Tooling And Static Tool Holders
Specifications
| Swing | 33.3" | 845.82 mm |
|---|---|---|
| Swing Over Carriage | 22.8" | 579.12 mm |
| Max Turning Dia | 22.8" | 579.12 mm |
| # Axis | 2 | 2 |
| Chuck Size | 18" | 457.2 mm |
| Spindle Bore | 6.53" | 16.6 cm |
| Power | 40 hp | 29.8 kW |
| Power (Live Tooling) | 10 hp | 7.5 kW |
| Max RPM | 2,000 RPM | 2,000 RPM |
| Max RPM (Live Tooling) | 4,000 RPM | 4,000 RPM |
| Spindle Nose | A2-15 | A2-15 |
| X-Axis Travel | 13.39" | 340.11 mm |
| Z-Axis Travel | 124.8" | 3,169.9 mm |
| Tailstock | Yes | Yes |
| Tailstock Travel | 116.1" | 2,948.9 mm |
| Tailstock Taper | MT#5 | MT#5 |
| Live Tooling | Yes | Yes |
| Sub Spindle | No | No |
| Rapid Traverse (X/Z) | 1,181 / 944 in/min. | 1,181 / 944 in/min. |
| Turret Capacity | 12 | 12 |
| Control | CNC (MAZATROL MATRIX NEXUS) | CNC (MAZATROL MATRIX NEXUS) |
| Dimensions | 280" X 94" X 83" | 280" X 94" X 83" |
| Weight | 33,951 lb | 33,951 lb |
Equipped With
18" Kitagawa power chuck
Live tooling (4,000 rpm)
Hydraulic programmable tailstock
LNS hydraulic steady rest
Mazatrol mill-turn capability w/ synchronous tapping
Filtermist FX6002 oil mist collector
Chip conveyor
Standard tooling package (Not all tools in photo are included)
