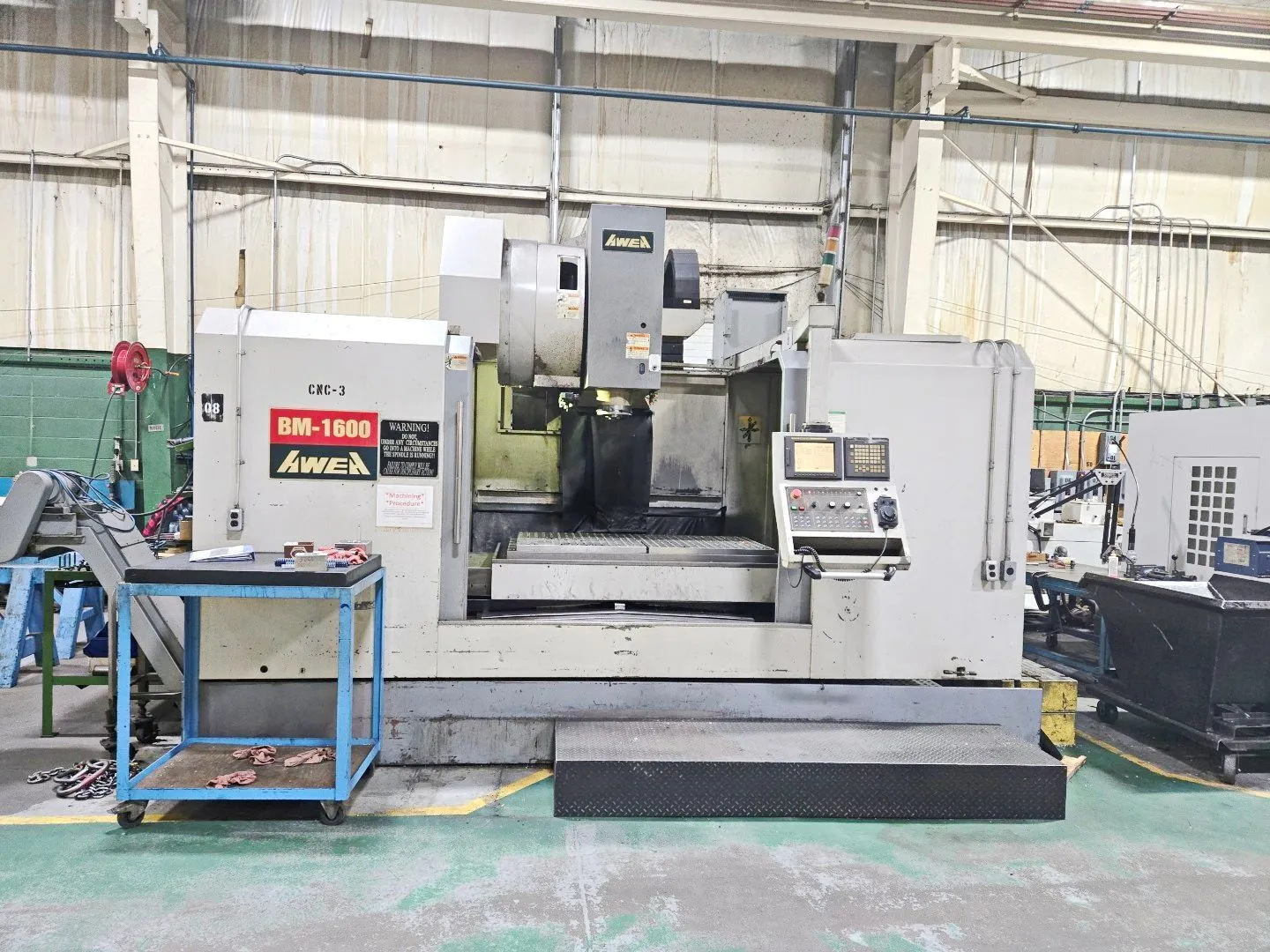

2005 Awea BM-1600 Vertical CNC Machining Center, TSC, 24-Tool Automatic Tool Changer, Chip Conveyor, Spindle Oil Chiller, Rigid Tapping, Spindle Orientation
| X-Axis | 63" | 1,600.2 mm |
| Y-Axis | 31.5" | 800.1 mm |
| Z-Axis | 31.5" | 800.1 mm |
| Power | 35 hp | 26.1 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 24 | 24 |
| Taper | CAT-50 | CAT-50 |
| Table-W | 31.5" | 800.1 mm |
| Table-L | 67" | 1,701.8 mm |
| # Axis | 3 | 3 |
| Max Table Load | 4,409 lb | 1,999.9 kg |
| Table Top To Floor | 35.4" | 899.16 mm |
| Rapids (X/Y/Z) | 787 / 787 / 708 in/min. | 787 / 787 / 708 in/min. |
| Control | CNC (Fanuc 18i-MB) | CNC (Fanuc 18i-MB) |
| Dimensions | 174" X 118" X 102" | 174" X 118" X 102" |
| Weight | 16,094 lb | 16,094 lb |
Through spindle coolant
24-tool atc
Chip conveyor
Spindle oil chiller
Rigid tapping
Spindle orientation
Hardened & ground box ways
