NEW MAGGI PRESTIGE 21
Overview
Description

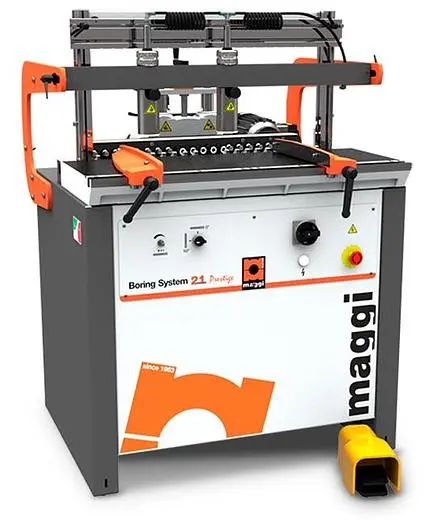

Maggi Prestige 21 Construction and Line Boring Machine, 2HP, 3 Phase, Digital readout, 2.5" Max
The Maggi System 21 Prestige Boring Machine provides a 21 spindle 32 mm universal drilling solution, with horizontal and vertical boring capabilities and pneumatic tilting of the boring unit with locking points from 0 to 90 degrees for quick set-up at any angle:
Accurate positioning of the boring unit to the table with digital readout.
3-Phase Single Phase also available.
0 to 2.5" adjustable drilling depth with patented spiral setting device.
(2) patented quick release material clamps with auto-setting to firmly hold material to table
Powerful 2 HP motor
34" x 13" cast iron table.
Cast iron side fences with ruler and magnifying glass.
Mirror imaging device to ensure quick and accurate set-up of the side fences.
120" line boring fence with (2) stops

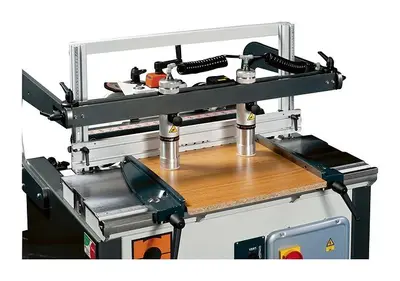

Foot actuated pneumatic clamps and drill cycle.

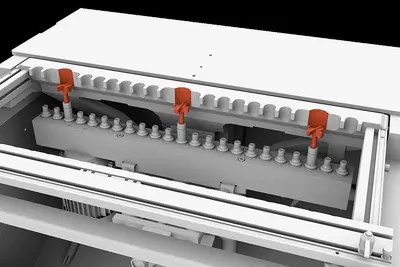

Uses 10 Left Hand (red/orange) and 11 Right Hand (black) boring bits
Includes: Magnetic starter with overload protection and (21) quick change chucks.
Dust Outlet: 3"; Net weight: 605 lbs; Dimensions: 40.5" x 40.5" x 50" Tall;
Crated Dimensions: 44" x 38" x 42" Tall; Crated Weight: 640 lbs
Made in Italy.
