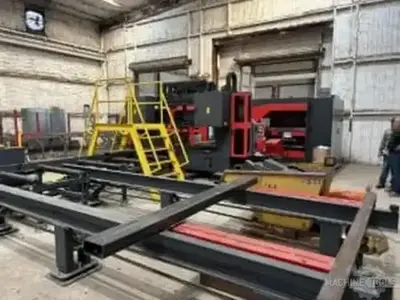

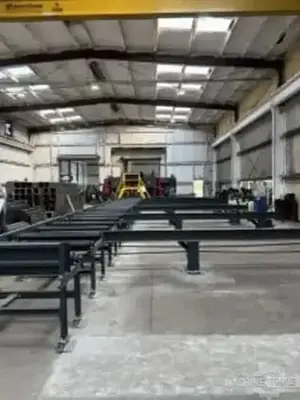

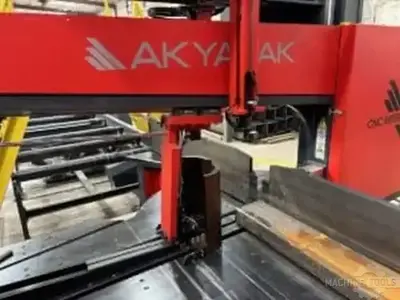

USED 2025 AKYAPAK 3 ADM 1200/AST 1300

CNC Beam Drill

Request a Quote
Add to Cart
Min/Max Beam Size: 8" x 3.15" / 48" x 20"
Number of Drill Heads: 3 (4 Station)
Automatic Tool Changer: 3"
Drill Diameter: 3/8" - 1-1/2"
Drilling Thickness: 0.2" - 3.94"
Spindle Power: 50 HP
Spindle Speed: 3,000 RPM (Stepless)
Vertical Spindle Strokes (X, Y, Z): 57", 20", 36"
Horizontal Spindle Strokes (X, Y, Z): 20", 21", 28"

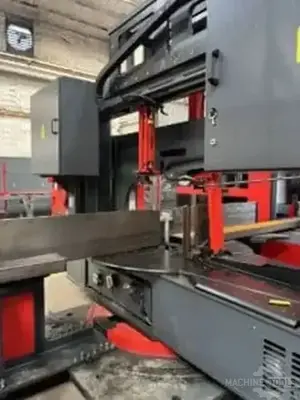

Miter Bandsaw Cutting Capacity: 3.15" - 51.5"
Cutting Angle: 60°/60°
Blade Thickness: 67 x 1.6mm (2.64" x 16ga)
Blade Speed: 65.6 - 377.3 ft/min
Total Saw Power: 24 HP
Chip Removal: Chip Conveyor
Capabilities: Drilling, Milling, Tapping, Countersinking, Layout Marking
Material: Beam, Channel, Tube, Angle, Plate
3 ADM Drilling Units with 3 Automatic Tool Changer: 4th Side Layout Marking

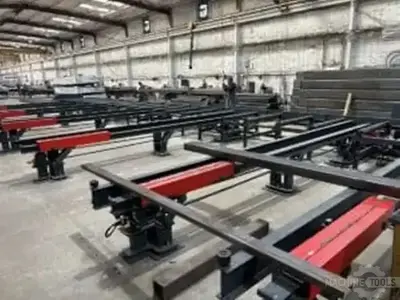

60' Infeed with Transfers: 60' Outfeed with Transfers

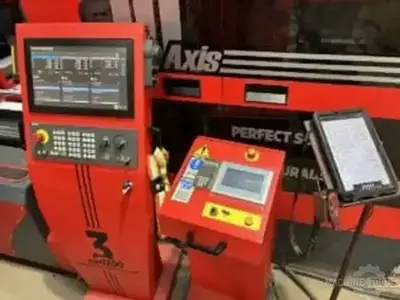

AKYAPAK AST Controller Software: Automatic Blade Tensioning System
Automatic Tool and Material Measurement: Bandsaw Integration
BT40 Tool Holder: Chip Brush for Blade

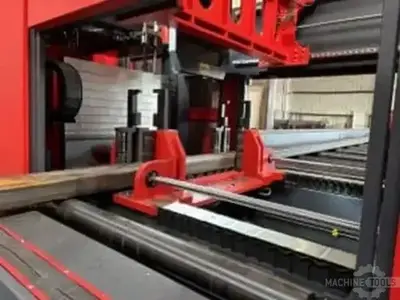

Clamping Vice: Feeding Arm
High Speed Scribing Tools: Lantek Flex 3D Steel Work SD Plus Software
M10 - M24 Thread Tapping: Magnetic Material Discharge System
Material Clamping: Part Marking
Upper Pressure Cylinders for Batch Cutting
