NEW 2022 RAPID INDUSTRIES RPB-08-12-14

Design Specifications:

Manufacturer: GAT / RTT / Springer Industrial
Working Dimensions with Conveyor: 3’-0” W x 10’-0” H x 14’ D
Maximum Product with Conveyor: 2’-0” W x 8’-0” H x 12’-0” L
Note: A wider part may be ran if conveyor is modified or carts are used. A 4’ wide part may be processed with the system as is with carts. If booths are widened a 7’ wide part may be processed on carts.
Utilities: Electric @ 480-V / 3-Ph, Gas = Natural @ 16.5 W.C, City Water – 1” @ 40 PSI
Year: 2022 / 2023
Condition: Excellent, operational through 2026
Location: Wisconsin

Equipment Specifications:

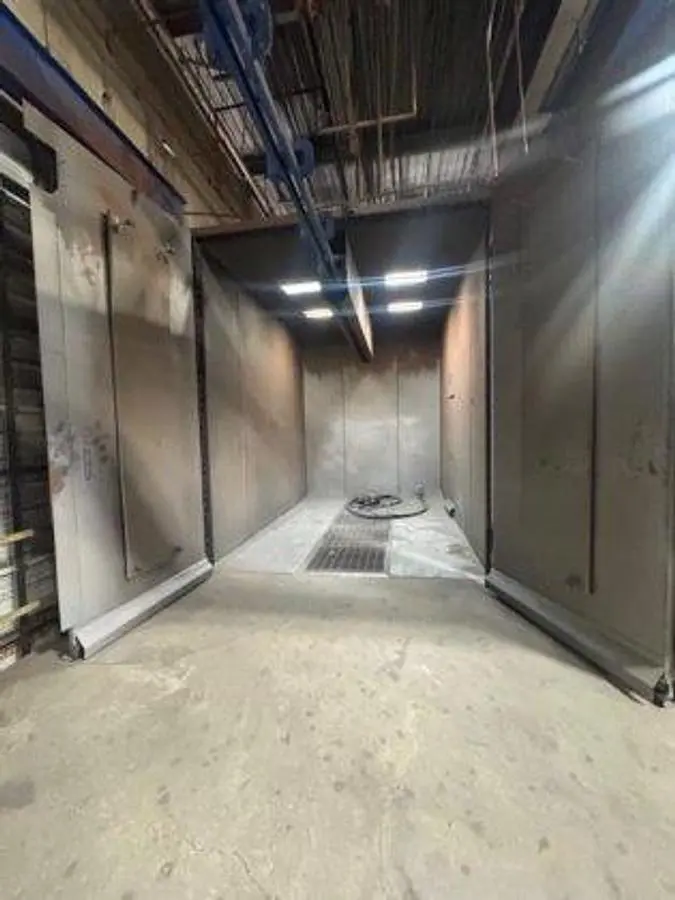

Abrasive Shot Blast Room & Blast Equipment:

Manufacturer: Springer Industrial
Outside Dims/ Footprint: 17’-0” W x 17’-4” H x 16’-0” L, Pit Required for Elevator
Working Dimensions: 10’-0” W x 12’-0” H x 14’ D
Construction: Booth – Steel & Aluminum, ¼” Steel Plate Floor
(4)15,000 Lm LED Lights
Dust Collector – 6,500 cfm @ 50 fpm

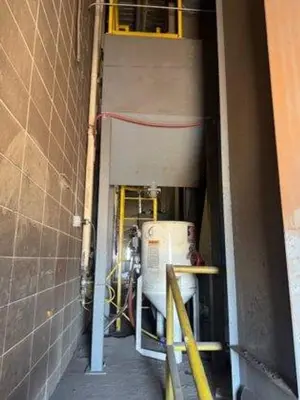

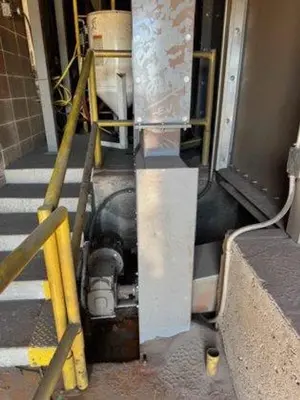

Elevator / Separator / Storage Hopper /Cross Auger Floor Reclaim System, Blast Pot, Operator Equipment, Grating and All related equipment provided.
Man Door
Conveyor Slot for Conveyor Rail
System Control Panel 480 V, 3-Ph, 50 Amp Feed

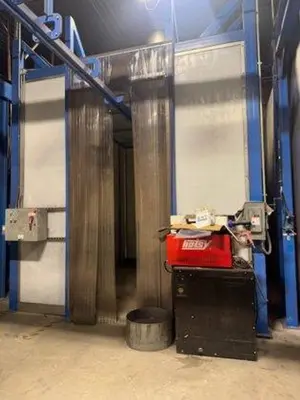

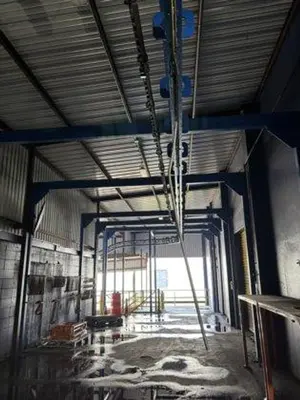

Wash Booth:

Manufacturer: GAT
Outside Dimensions: 12’ W x 13’-0” H x 16’-0” L
Working Dimensions: 5’-0” W x 10’-0” H x 16’ D
Construction: Stainless Steel Frame with Poly Wall/Roof
(4) Vapor Rated 48” LED Lights
Exhaust Fan. 30” Tubeaxial, 8,519 cfm, 1HP
Conveyor Slot for Conveyor Rail

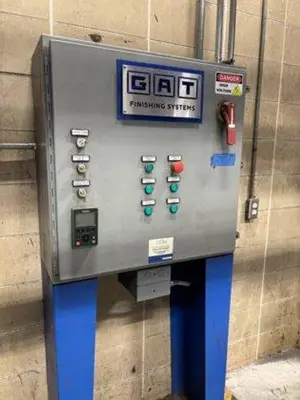

System Control Panel 480 V, 3-Ph, 20 Amp Feed
945N Hotsy HWE Hot Water Pressure Washer, very little use
Steam heat to drain design

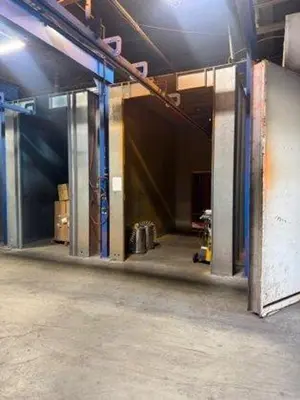

Batch Ovens (2 Included):

Manufacturer: GAT
Outside Dimensions: 10’-10” W x 13’-3” H x 16’L, 20’ L with Burner box
Working Dimensions: 8’-0” W x 10’-0” H x 14’-0” D
Design Temperature: 450 Degrees F
Designed Throughput: 3,000 lbs/hr
Rear-Mount Burner Box (10 HP, 9,932 cfm) & Integral Exhaust Fan (1,156 cfm)
Side Mount Duct
Conveyor Slots for Conveyor Rail
6” Thick Insulated Oven Panels for Walls and Roof
Eclipse Burner with Dungs Gas Train
Gas: Natural or Propane, 1.2 Mbtu’s Hr Rated Capacity
System Control Panel, 480 V, 3-Ph, 30 Amp Feed

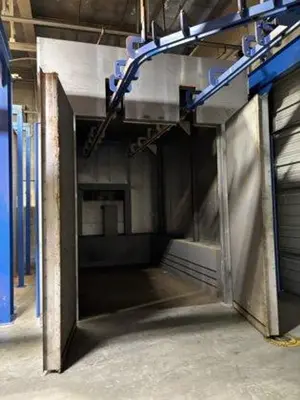

Powder Booth Systems (2 Included):

Manufacturer: RTT
Model: RPB-08-12-14
Outside Dimensions: 8’-4” W x 12’-2” H x 14’-4” L, 20’ L with Fan Package
Working Dimensions: 5’-0” Wide x 10’-0” High x 14’ Deep
Type: Rear-draft, Cartridge, Non-Reclaim booth
Steel Canopy
(3) 48” LED Lights
5,000 CFM, Fan Packages, Cartridge Type with Pulse Down
Conveyor Slots for Conveyor Rail
System Control Panel, 480 V, 3-Ph, 30 Amp Feed
ITW Gema Powder Guns and Hoppers

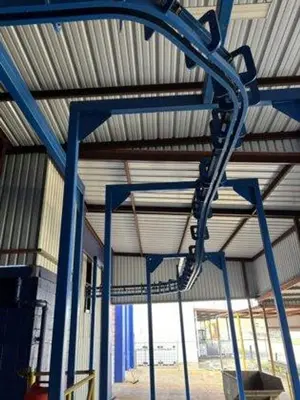

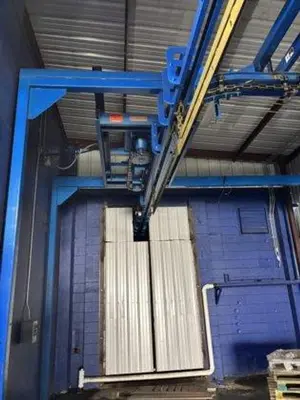

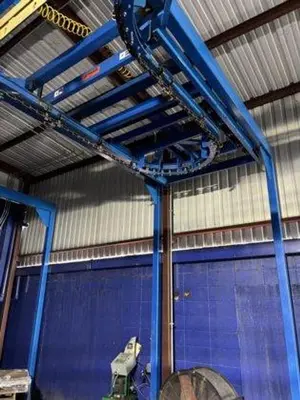

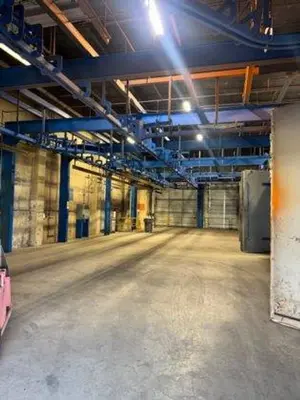

Conveyor Systems – 1 Powered and 1 Manual

Manufacturer: Rapid Industries
Type (Powered): 3x3x3 Power & Free
20 Carriers / Loadbar Sets with a 3,000 lb part capacity
All Components to include Track, Turns, Drive, Take-Up, Oiler, Etc included.
Heavy-Duty Structure Supports
