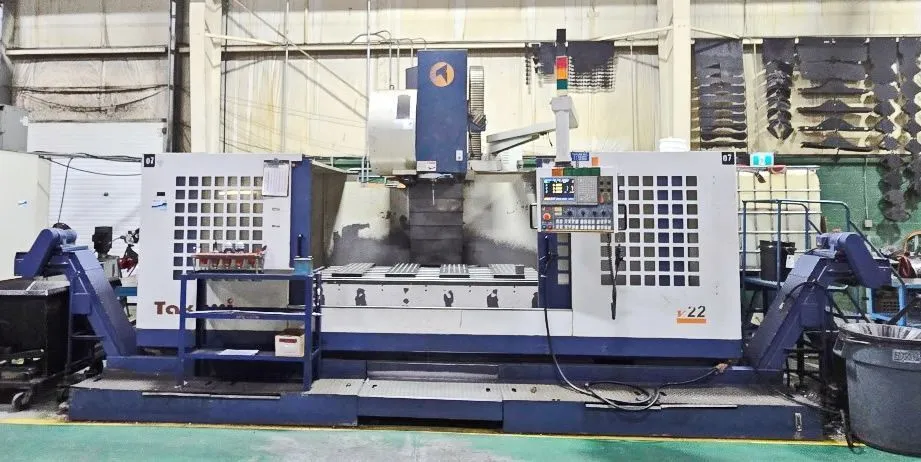

2004 Takumi V22 Vertical CNC Machining Center, Through Spindle Coolant, Side-Mount Tool Changer, BT-50 Gear-Driven Spindle, Dual Chip Conveyors, Spindle Cooler, Spindle Air Blast
| X-Axis | 86.6" | 2,199.6 mm |
| Y-Axis | 35.4" | 899.16 mm |
| Z-Axis | 29.5" | 749.3 mm |
| Power | 35 hp | 26.1 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 24 | 24 |
| Taper | BT-50 | BT-50 |
| Table-W | 40.4" | 1,026.2 mm |
| Table-L | 86.6" | 2,199.6 mm |
| # Axis | 3 | 3 |
| Max Table Load | 6,613 lb | 2,999.6 kg |
| Distance Spindle Nose to Table | 37.4" | 949.96 mm |
| Rapids (X/Y/Z) | 472 in/min. | 472 in/min. |
| Made In | Taiwan | Taiwan |
| Control | CNC (Mitsubishi M70) | CNC (Mitsubishi M70) |
| Dimensions | 200" X 156" X 138" | 200" X 156" X 138" |
| Weight | 43,431 lb | 43,431 lb |
Through spindle coolant
Side-mount tool changer
BT-50 gear-driven spindle (6000 rpm)
Dual chip conveyors
Spindle cooler
Spindle air blast
Ethernet
