NEW HYD-MECH S-20NG

Equipped With

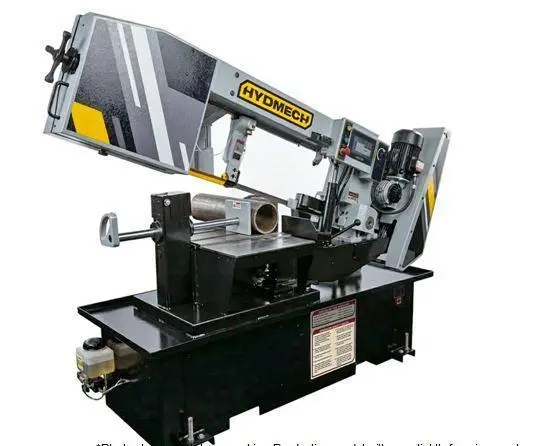

NEW HYD-MECH MODEL S-20NG MANUAL HORIZONTAL BAND SAW
S-20NG MANUAL MITER BAND SAW
Precision. Versatility. Value.
The HYDMECH S-20NG is a manual miter band saw engineered for accuracy, versatility, and ease of use in job shops, fabrication facilities, and production environments. A capable entry-level solution that delivers full professional-grade performance at a great price.

The S-20NG features HYDMECH’s exclusive 7" HMI touchscreen with digital angle display and a standard mist lubrication system offering unique advantages found on no competitor’s saw in this class.


Performance Highlights
•      Industry-exclusive 7" touch screen with digital angle display
•      Compact footprint at only 91" W × 33" L taking up less floor space
•      Mist lubrication system uses up to 90% less coolant than flood systems resulting in a cleaner shop, lower cost, and greener operation
•      Precision manual blade tension allows for simple, consistent tensioning for optimal blade life every time
•      VFD variable blade speed for cutting steel, aluminum, stainless, and more

Eco-Smart Mist Lubrication System

Every HYDMECH S-20NG ships standard with a precision air-mist lubrication system designed for clean, efficient cutting without the mess and cost of flood coolant. Unlike flood systems that pump gallons of fluid per hour, the mist system delivers a fine, targeted spray directly on the band saw blade.
•      Up to 90% less coolant consumption versus flood systems
•      Cleaner shop floor with no coolant puddles, no slip hazards
•      Reduced environmental footprint with less waste to dispose of
•      Lower operating costs with coolant supply that lasts significantly longer
•      Faster end-of-shift cleanup
Mist lubrication is controlled via solenoid activation from the HMI touchscreen. Reservoir: 64 oz (1893 mL) with low-level detection. Shop air required: 60–100 PSI

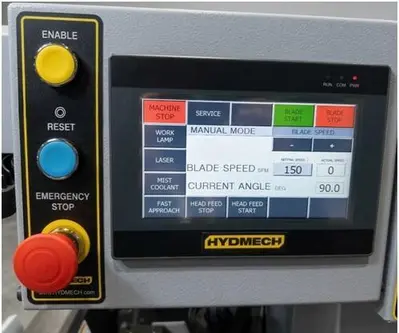

The HYDMECH S-20NG introduces an industry-exclusive 7" (178 mm) HMI touchscreen that displays the miter angle digitally in real time. No other band saw in this class offers this. Operators of any experience level can confidently dial in precise miter angles at the touch of a button, eliminating analog gauges, protractors, and costly setup errors.
The touchscreen puts full machine control at the operator's fingertips:
•      Real-time digital miter angle readout
•      Blade speed display and VFD control
•      Mist lubrication on/off activation
•      Machine status and operating diagnostics

Manual Blade Tension System

Proper blade tension is the single most important factor in cut quality and blade life. The HYDMECH S-20NG's manual tension system is designed for straightforward, repeatable tensioning. Operators can set correct tension quickly and confidently, without over- or under-tensioning.
•      Extends blade life as correctly tensioned blades run cooler and straighter
•      Improves cut quality by helping to eliminate blade deviation and deflection
Capacity — 90° Rectangular
13" H x 18" W
355 mm x 457 mm
Capacity — 90° Round
13"
330 mm
Capacity — 45° Rectangular
13" x 10.9"
355 mm x 277 mm
Capacity — 45° Round
12"
305 mm
Capacity — 30° Rectangular
13" x 7.3"
355 mm x 185 mm
Capacity — 30° Round
8"
203 mm
Blade Size
1" x 14’ 10"
25.4 mm x 4521 mm
Blade Speed
45–375 SFM VFD
14–114 m/min
Blade Drive
3 HP
2.2 kW
Blade Wheel Diameter
17¾"
451 mm
Vises
Manual Full Stroke: Brake Cam Lock
Head Lift
Manual
Feed System
Variable Rate: Gravity Driven
Guide Arm
Manual Positioned
Machine Voltage
480V
208V, 240V, 575V with optional transformer
Machine Weight
1,715 lbs.
778 kg
Table Height
33"
838 mm
Machine Dimensions
91" x 33" x 61"
2311 mm x 838 mm x 1549 mm
Standard Features
Easy swing, heavy-duty cast iron saw head (swings 90°–30°)
3 HP true direct blade drive — no belts or pulleys
VFD variable blade speed — 45–375 SFM
Manual full-stroke vise with brake cam lock
Gravity-fed variable rate down-feed
Manual blade tension
Carbide blade guide inserts
Manual positioned guide arm
Cast iron band wheels
Mist lubrication system (solenoid activation, 64 oz reservoir with low level detection — shop air required 60–100 PSI)
7" HMI touchscreen with digital angle display
Laser light
Work light
Replaceable blade brush
Robust steel base
Safety door interlocks
Blade breakage switch
Built in material in-feed rollers and out-feed table
Optional Features
·         Material work stop
·         Power transformers
·         Idler conveyors
