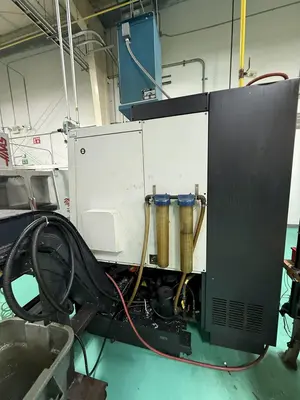

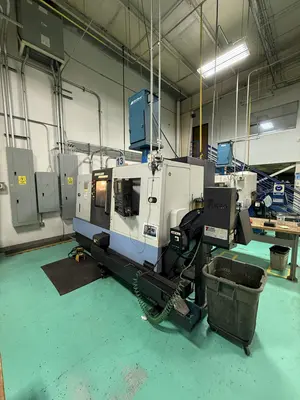

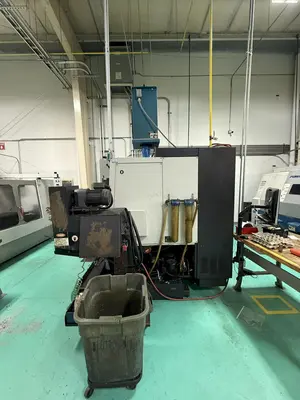

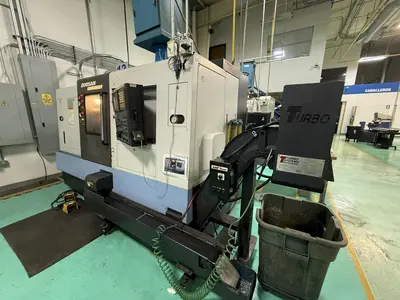

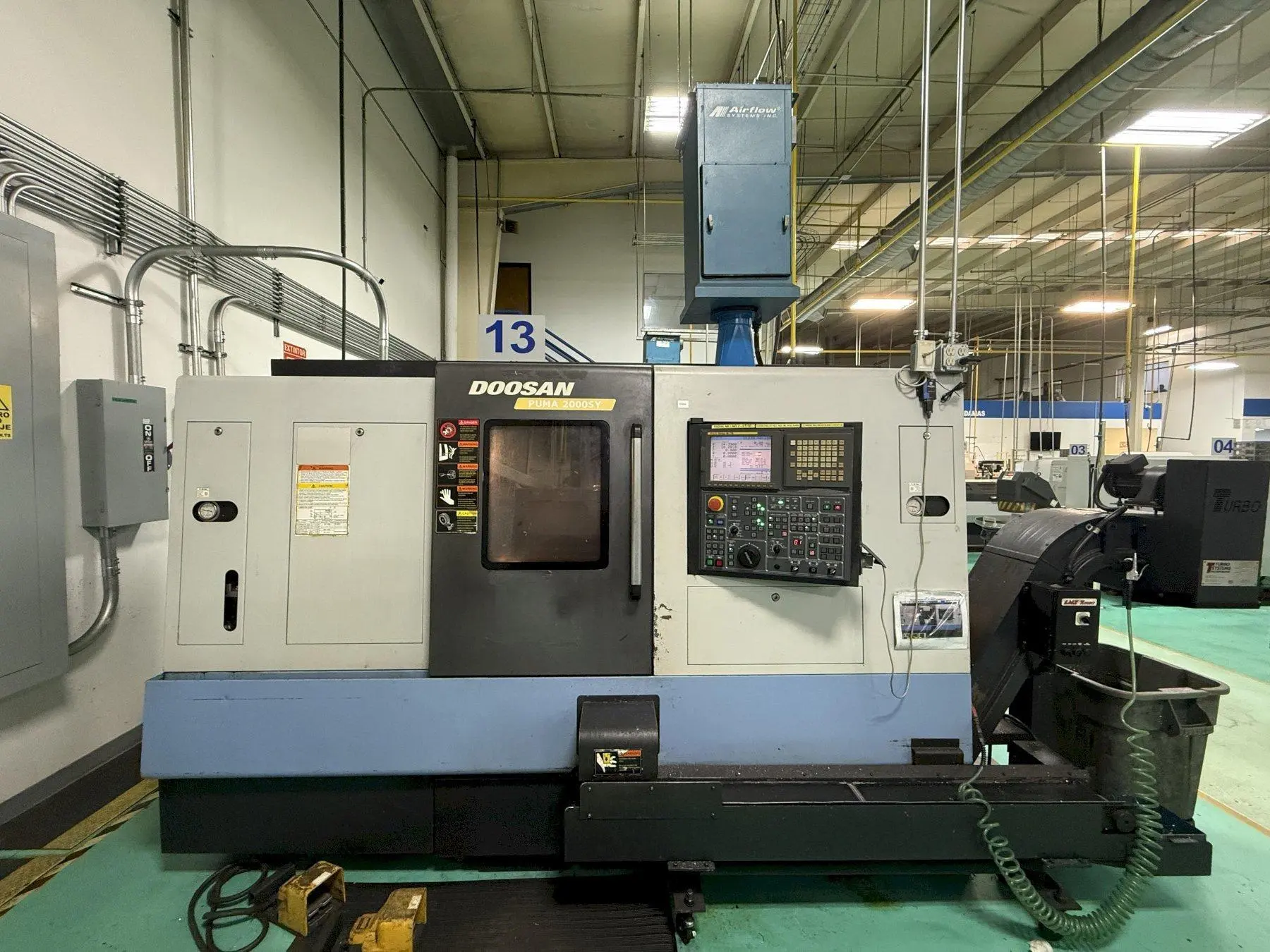

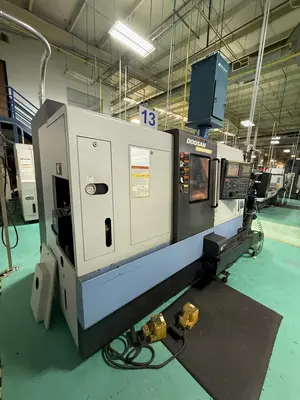

USED 2008 DOOSAN PUMA 2000SY

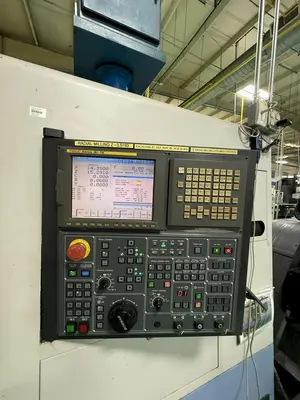

Fanuc Series 18i-TB CNC Control

Y Axis

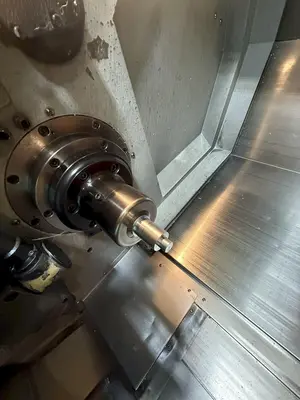

Sub Spindle

Live Tooling

Tool Presetter

Parts Catcher

Chip Conveyor
The Doosan Puma 2000SY is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.

CNC Control: yes
Control Type: Fanuc 18i-TB
# Axis: 5
Swing: 23.6"
Turning Diameter: 13"
Center Distance: 20.1"
Bar Capacity: 3"
X Axis Travel: 9.8"
Y Axis Travel: 3.9"
Z Axis Travel: 22.8"
B Axis Travel (Sub Spindle): 22.8"
C Axis Index: 0.001°
Rapid Traverse (X/Y/Z): 790/295/945 ipm
Spindle Speed: 4,500 rpm
Main Motor: 20 hp
Tailstock: no
Y Axis: yes
Live Tooling: yes
Live Tooling Speed: 5,000 rpm
Live Tooling Motor: 7.5 hp
Sub Spindle: yes
Sub Spindle Speed: 5,000 rpm
Turret Capacity: 12
Machine Weight: 11,909 pounds

- Fanuc 18i-TB CNC Control
- Live Tooling
- Y Axis
- Sub Spindle
- Tool Presetter
- Parts Catcher
- Parts Conveyor
- Chip Conveyor
- Coolant Tank & Pump
