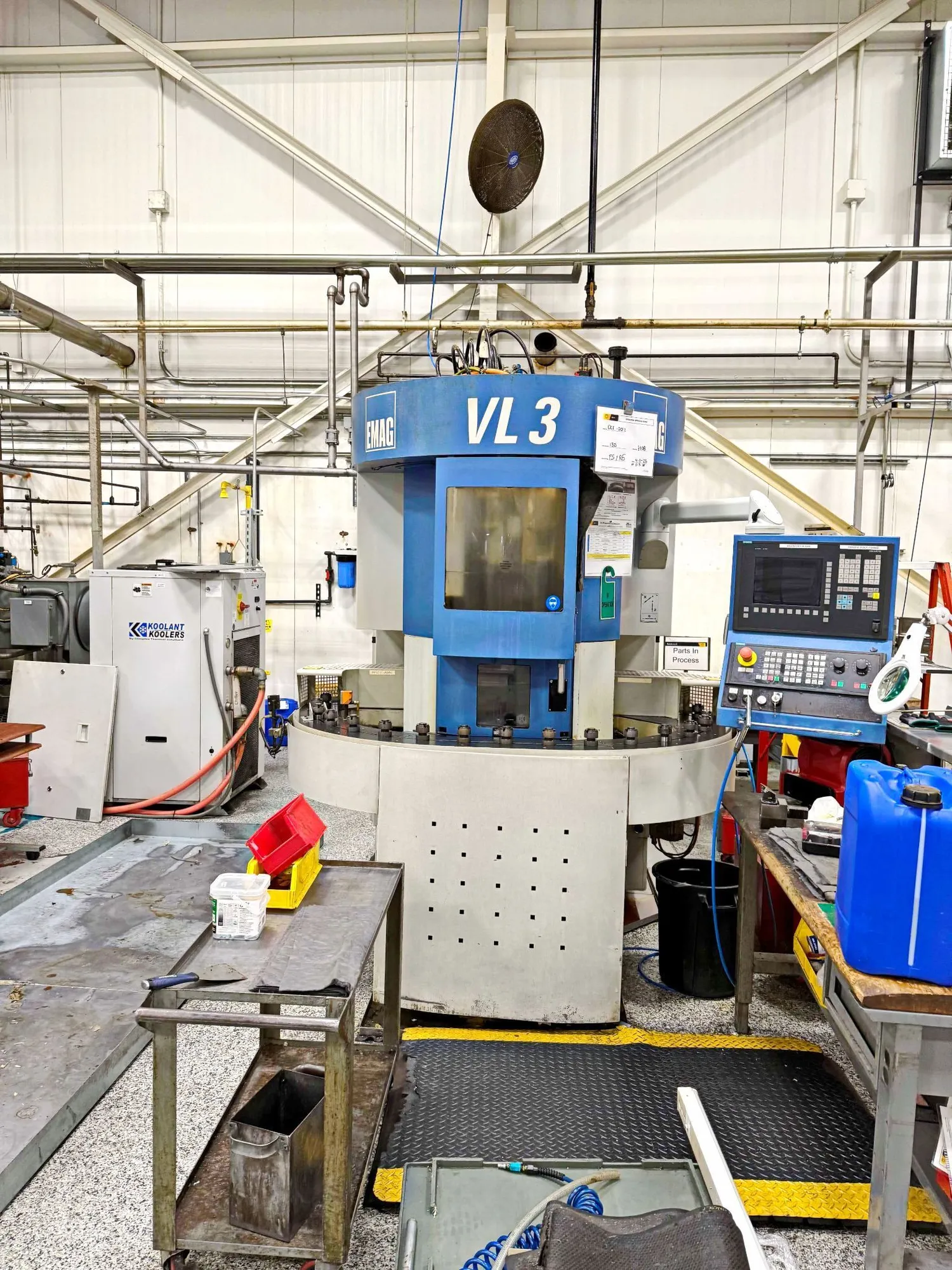

2013 Emag VL 3 Vertical Pick-Up CNC Lathe, Pick-Up Spindle Automatic Loading System, Integrated Part Conveyor System, Hydraulic Power Chuck, Vertical Spindle Configuration, Chip Conveyor
| Swing | 8.27" | 210.06 mm |
| # Axis | 2 | 2 |
| Chuck Size | 6.3" | 160.02 mm |
| Power | 32 hp | 23.9 kW |
| Max RPM | 7,500 RPM | 7,500 RPM |
| X-Axis Travel | 15.75" | 400.05 mm |
| Z-Axis Travel | 7.87" | 199.9 mm |
| Tailstock | No | No |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Rapid Traverse (X/Z) | 2,362 / 1,181 in/min. | 2,362 / 1,181 in/min. |
| Turret Capacity | 12 | 12 |
| Control | CNC (Siemens Sinumerik 840D) | CNC (Siemens Sinumerik 840D) |
| Dimensions | 96.45" X 74.8" X 90.55" | 96.45" X 74.8" X 90.55" |
| Weight | 12,125 lb | 12,125 lb |
Pick-up spindle automatic loading system
Integrated part conveyor system
Hydraulic power chuck
Vertical spindle configuration
Centralized lubrication system
Coolant system w/ filtration
Chip conveyor
