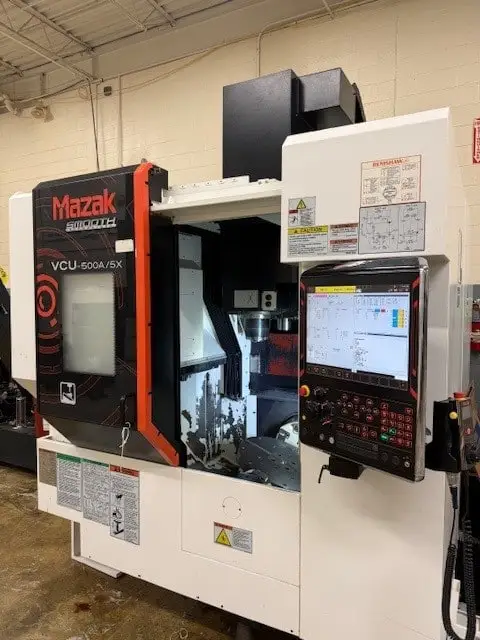

Mazak VCU-500/5X 5-Axis – 2016

Mazak VCU500/5X 5-Axis CNC Mill

Specifications
Table Size 19.68″ x 19.68″
X Axis Travel 19.88″
Y Axis Travel 19.88″
Z Axis Travel 20.07″
B Axis Travel +95 to -45 degrees
C Axis Positioning +/- 360 degrees
Main Spindle RPM 12,000 RPM
Rapid Traverse Rate X 945 IPM
Rapid Traverse Rate Y 945 IPM
Rapid Traverse Rate Z 945 IPM
Number of Tool Stations 30
Spindle Taper CAT 40
Main Spindle HP 15/25 HP

Mazatrol Smooth X
5-Axis Trunnion Rotary Table
5-Axis Machining Package
Manual Pulse Generator
Work Setting Error Compensation
EIA Dynamic Compensation
Workpiece Air Blast
213 PSI Hi-Pressure Coolant Thru Spindle
RMP600 Probe
Jorgensen ECO-Filter Hinge Chip Conveyor
