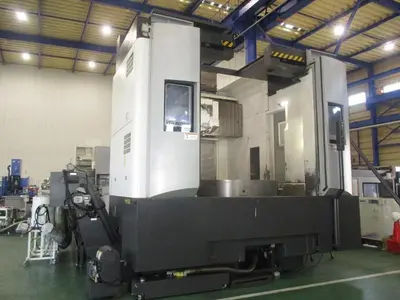

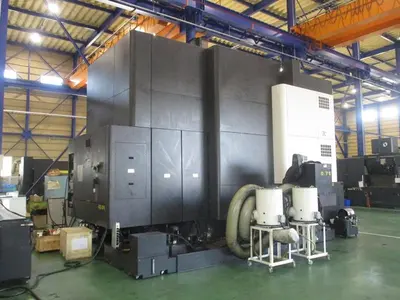

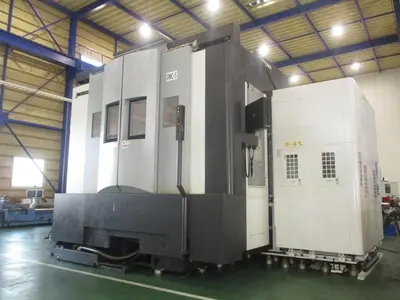

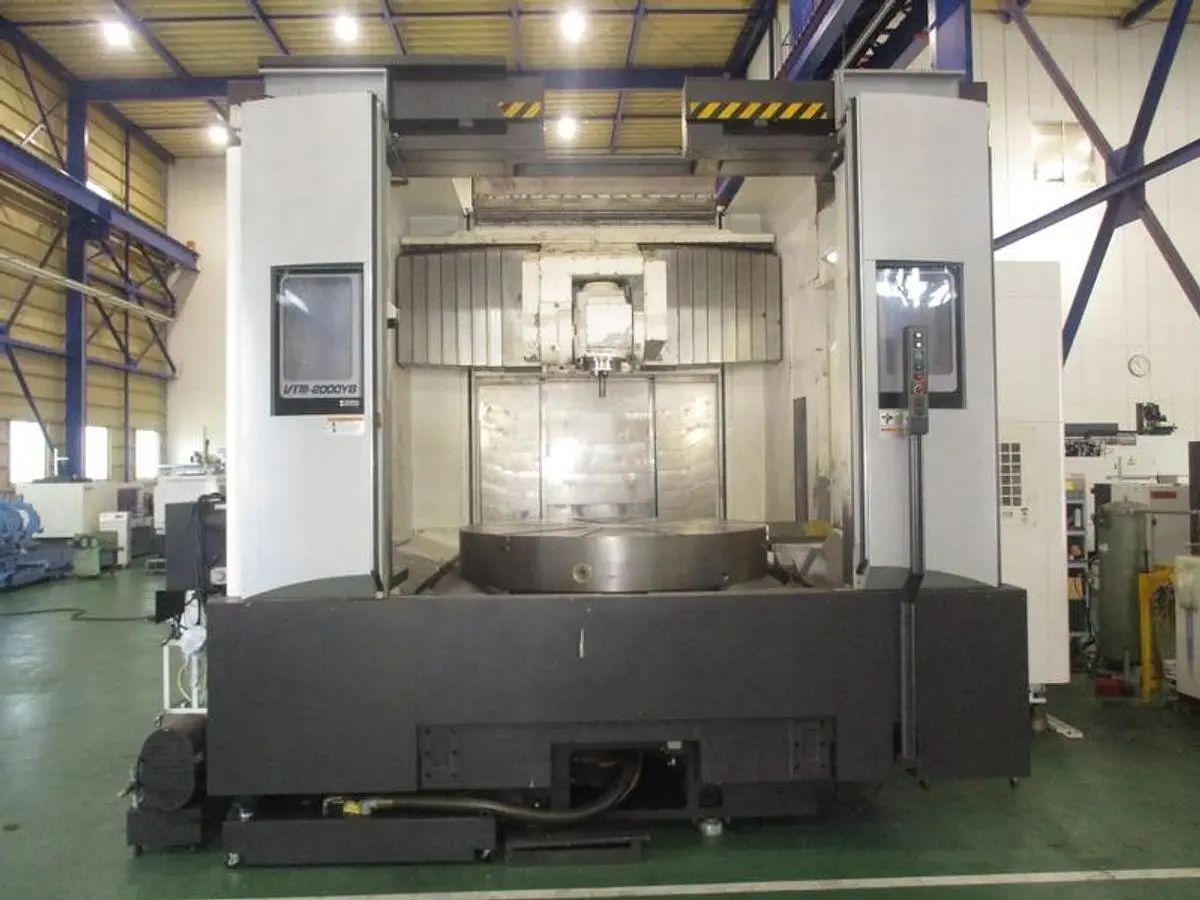

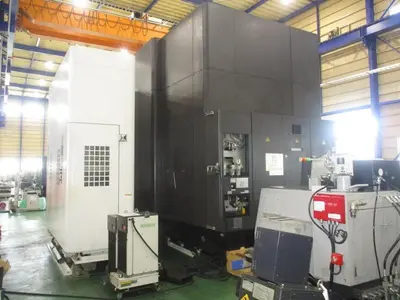

USED 2015 OKUMA VTM-200YB

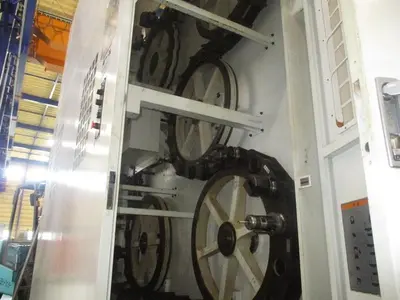

OSP-P300S-H CNC Control60 Position Automatic Tool Changer - BT 50 Max tool diameter 290mm Max tool length 500mm

Manufacturer: Okuma
Model: VTM 200YB
Year: 2015
Condition: Used
Stock Number: 5654338
Table diameter: 2,000 mm
Swing: 2,400 mm
Max machining diameter: 2,000 mm
Turning height: 1,400 mm
Table capacity: 10,000 kg
Table turn speed (Stepless x automatic 2-step): 4 - 200 rpm
Live spindle speed: 40 - 10,000 rpm
Live spindle torque (3 min/30 min/Continuous): 505 / 300 / 205 Nm
Spindle diameter: 90 mm
X axis travel: 1,600 mm
Z axis travel: 1,400 mm
Y axis travel: 1,600 mm (-800 ~ +800)
C axis control angle: 360° (0.001°)
B axis indexing angle: -30 ~ 120° (0.001°) (NC B-Axis)
Table turning motor (30 min/continuous): 30 / 22 kW
Rotary tool spindle motor (3 min/30 min/continuous): 37 / 30 / 22 kW
Table torque (20 min./continuous): 8,415 / 5,610 Nm
Spindle through-hole diameter / bearing inner diameter: 110 / 200 mm
Machine height: 4,967 mm
Required floor space: 5,970 x 6,973 mm
Machine weight: 43,000 kg
