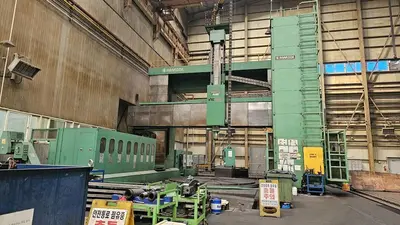

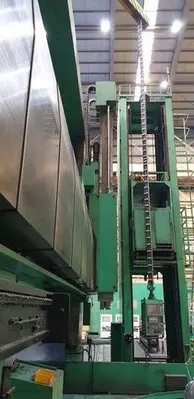

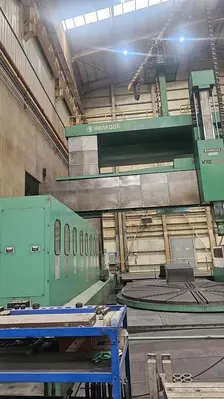

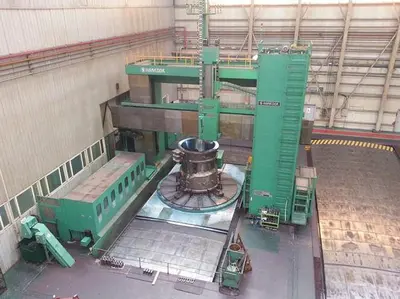

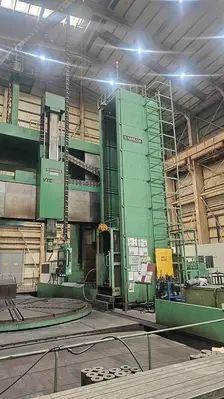

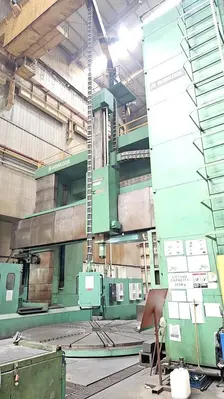

USED 2010 HANKOOK VTC-5060Y
Overview

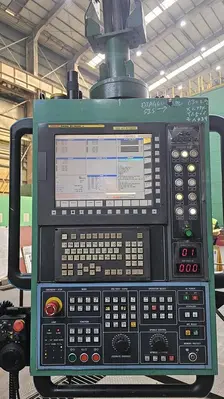

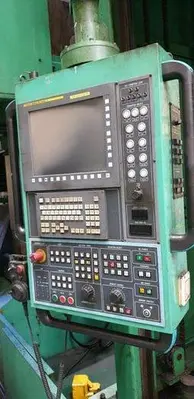

Fanuc 31i A CNC System
M.P.G Handle
Live Spindle
Table C Axis
Table speed for turning (2 step) 1 - 50 rpm
Crossrail Protection Steel Covers

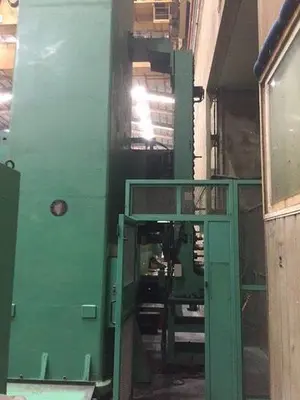

Column Protection Steel Covers
4-Jaw Independent Manual Chuck Jaws

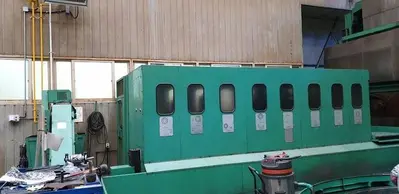

Hydraulic Power Unit
Hinge Type Chip Conveyor
Automatic NC Power off

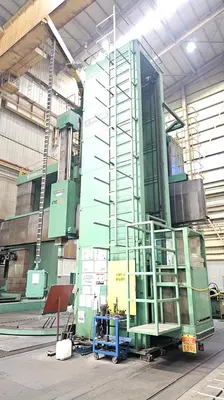

Operator Platform

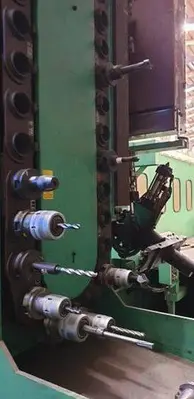

Automatic Tool Changer (A.T.C)

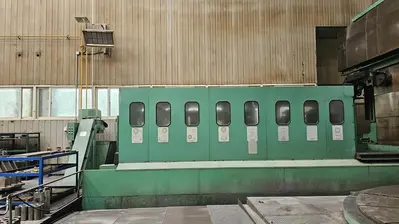

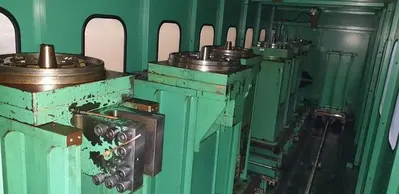

Automatic Attachment Changer (A.A.C.)

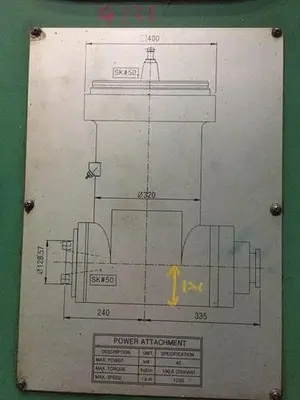

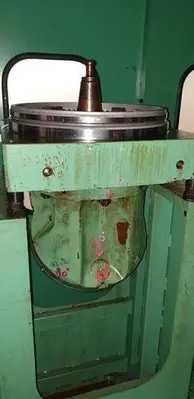

Power Attachment

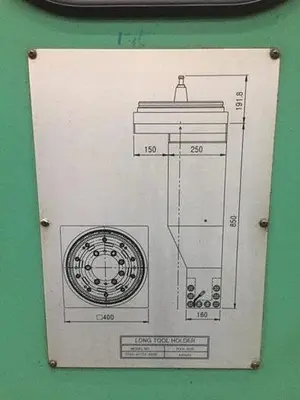

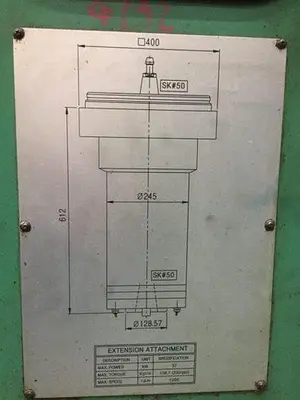

Extension Attachment
Universal Attachment

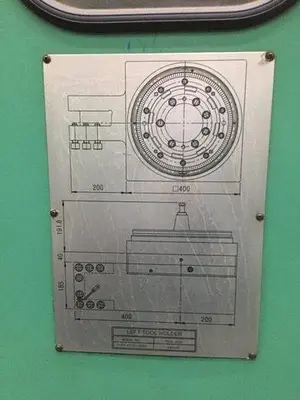

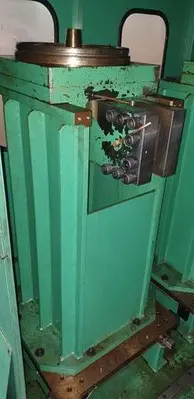

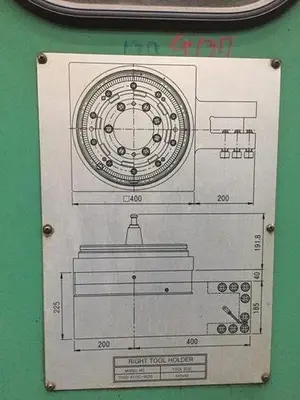

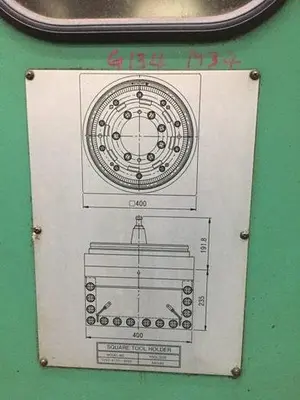

4 Turning Tool Holders
Linear Scale For X & Z-axis
External Coolant System
Through Spindle Coolant (T.S.C)
Specs
Manufacturer: Hankook
Model: VTC 5060Y
Year: 2010
Condition: Used
Stock Number: 10675

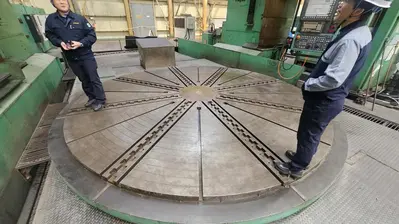

Table diameter: 5,000 mm
Swing: 6,000 mm
Turning height: 4,500 mm
Table capacity: 100 Ton
Live spindle speed: 3,000 rpm
Table travel: 5,000 mm
Table turn speed: 50 rpm
Z axis travel: 2,500 mm
X axis travel: 8,405 mm
Distance between columns: 6,920 mm
Distance between telescopic cover: 6,310 mm
Ram size: 400 x 400 mm
Table speed for indexing (c axis): 0.333 rpm
Table indexing control (c axis): 0.001 Degree
Milling spindle taper: ISO 50
Tool shank size: 40 x 40 mm
Rapid feed of ram head - x axis: 8,000 mm/min
Rapid feed of ram head - z axis: 6,000 mm/min
Rapid feed of ram head - y axis: 6,000 mm/min
Feed rate of ram head (x,y,z axes): 1 - 3,000 mm/min
Vertical travel of cross rail: 3,000 mm
Main motor power for table drive, dc: 154 kW
Live milling spindle speed, ac: 37/45 kW

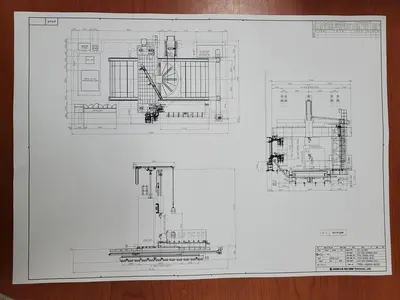

Machine layout: 14,000 x 22,600 mm
Height from floor level to top of machine: 11,232 mm
Machine weight, approx.: 230 Ton
