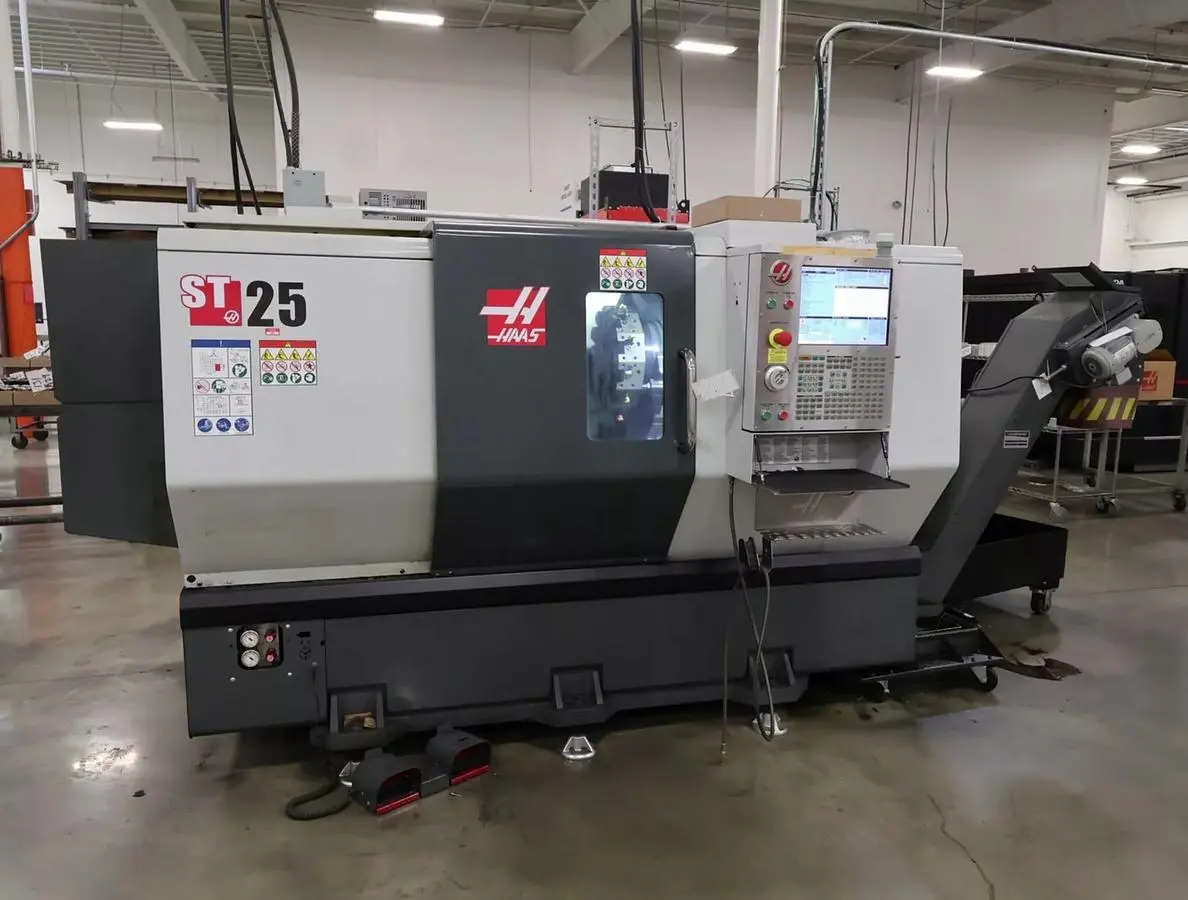

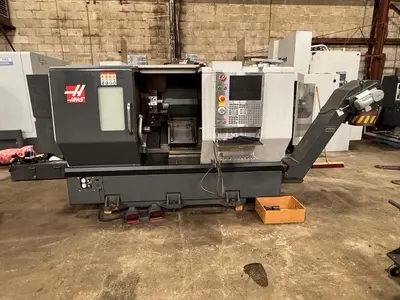

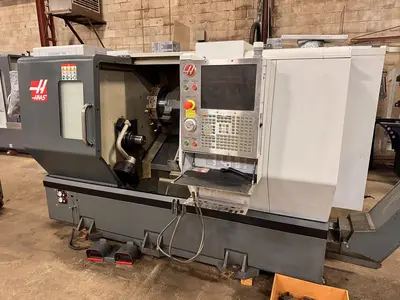

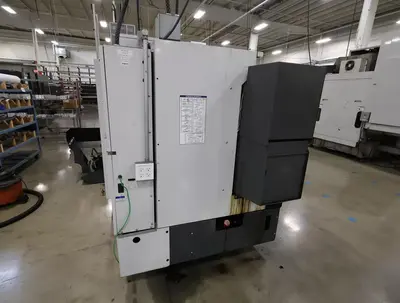

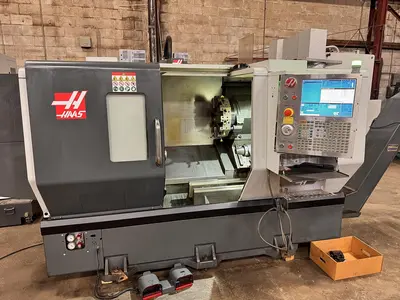

USED 2017 HAAS ST-25

Max. Part Swing: 21"
Max. Cutting Diameter: 11.75"
Max. Cutting Length: 22.5"
Bar Capacity: 3"
Travels - X-axis: 8.4"
Travels - Z-axis: 22.5"
Rapid Feedrate on X: 945 ipm
Rapid Feedrate on Z: 945 ipm
Max. Thrust X: 4100 lbf
Max. Thrust Z: 5100 lbf
Spindle Nose: A2-6
Max. Rating: 30 Hp
Max. Speed: 3,400 rpm
Max. Torque: 300.0 ft-lbf @ 500 rpm
Spindle Bore: 3.5"
No. of Tools: 12 station
Boring Bar Rear Clearance (from back of turret ): 4"
Coolant capacity: 55 Gal.
Approx. Weight: 9,000 lbs.

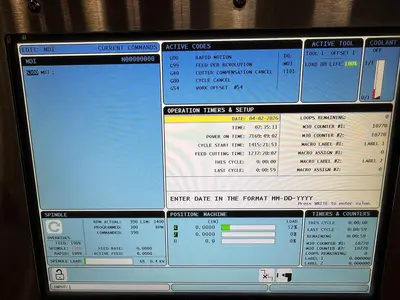

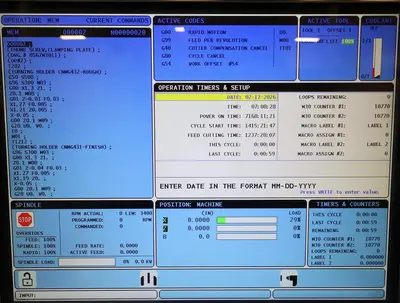

FEED CUTTING TIME: 1,237 HRS.

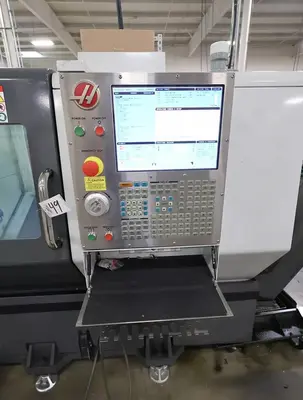

HAAS CNC CONTROL

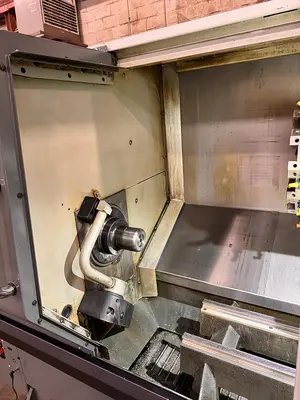

COLLET CHUCK
RIGID TAPPING
TOOL PRESETTER
12 STN TURRET
HYDRAULIC TAILSTOCK

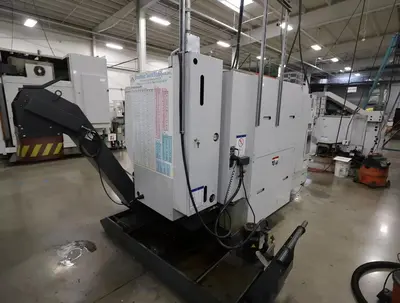

CHIP CONVEYOR
