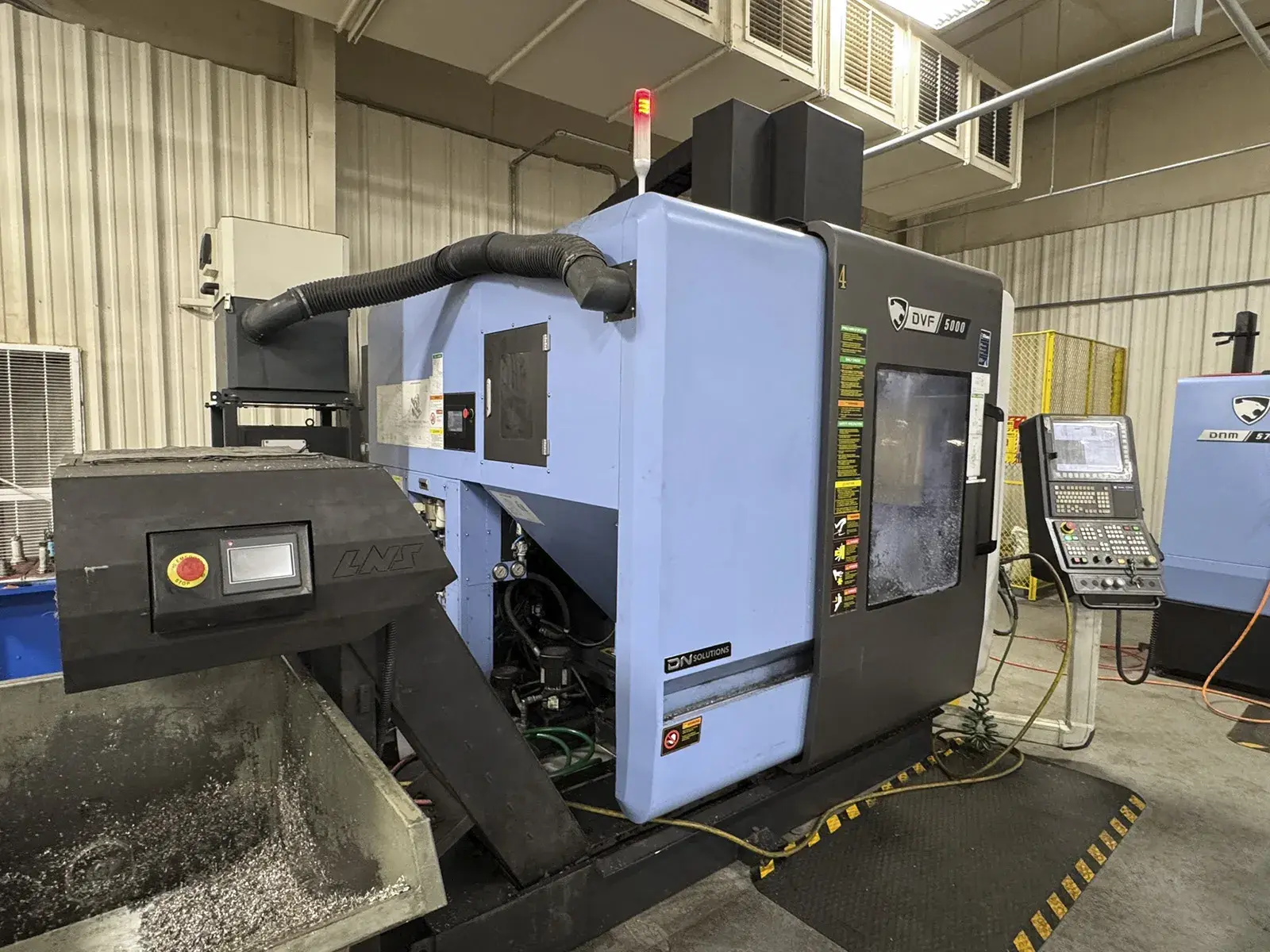

USED 2022 Doosan DVF 5000

Maximize precision and efficiency with this Doosan DVF 5000 5-axis machining center (2022) featuring Fanuc 31i Series B5 control. Designed for high-mix, low-volume production, it excels at complex multi-angle machining for aerospace, medical, automotive, and mold applications. Achieve one-hit machining to reduce setups, improve accuracy, and boost productivity on intricate parts.

Table Diameter: 19.7 in
Max Workpiece Diameter: ≈ 25.6 in
Max Workpiece Height: ≈ 15.7 in
Max Table Load: 440 lb
Main Spindle Horse Power: 30hp
Main Spindle Speeds: 18,000 RPM
Main Spindle Taper: CAT 40 Big Plus
X - Axis Travel: 25.6"
Y - Axis Travel: 17.7"
Z - Axis Travel: 15.7"
B - Axis Travel: -30 to +110
C axis: 360,000 degree
Rapid Traverse Rate - X: 1,574 in/min.
Rapid Traverse Rate - Y: 1,574 in/min.
Rapid Traverse Rate - Z: 1,574 in/min.

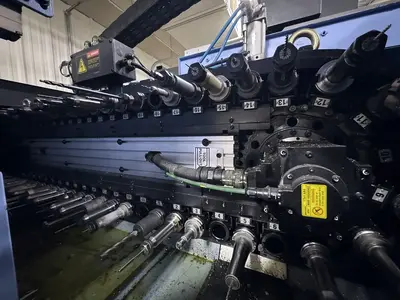

AUTOMATIC TOOL CHANGER: 60
Tool Length: 11.8"
Tool Weight: 17.6 lb
Machine Weight: 16,535 lb

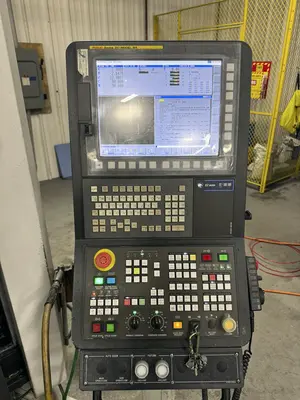

Fanuc 31i Series B5 Control
Full simultaneous 5-axis
18000 Spindle RPM
60 Tool Capacity
Chip Conveyor
Spindle Chiller
1000 PSI Coolant Thru Spindle

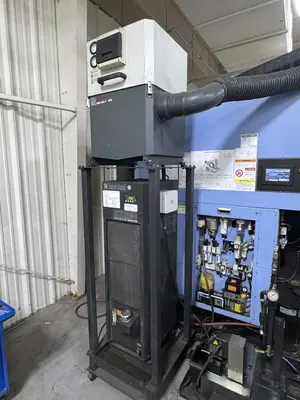

Mist Collector
Renishaw Probe
Tool Presetter
