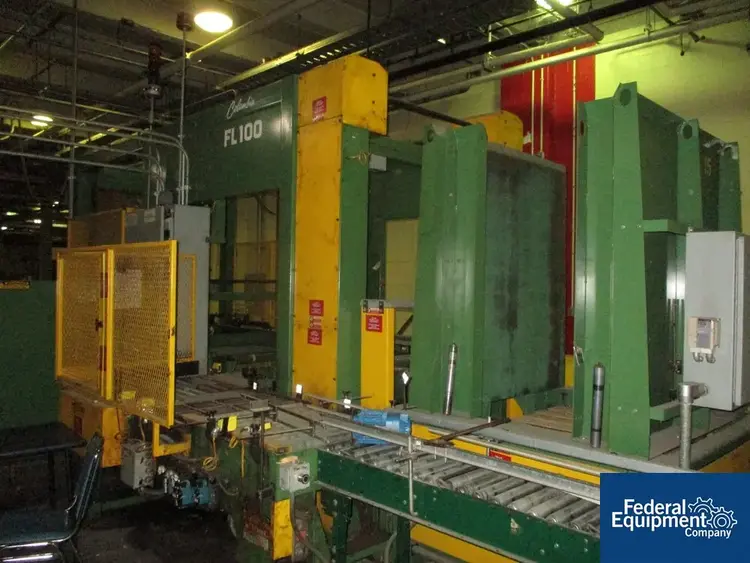

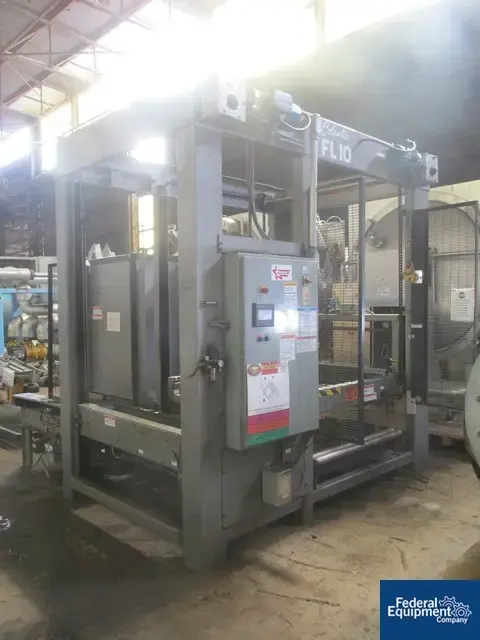

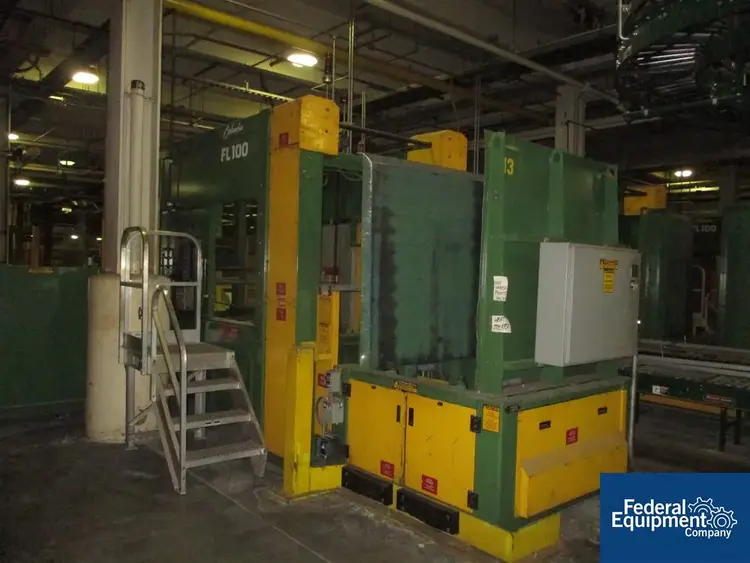

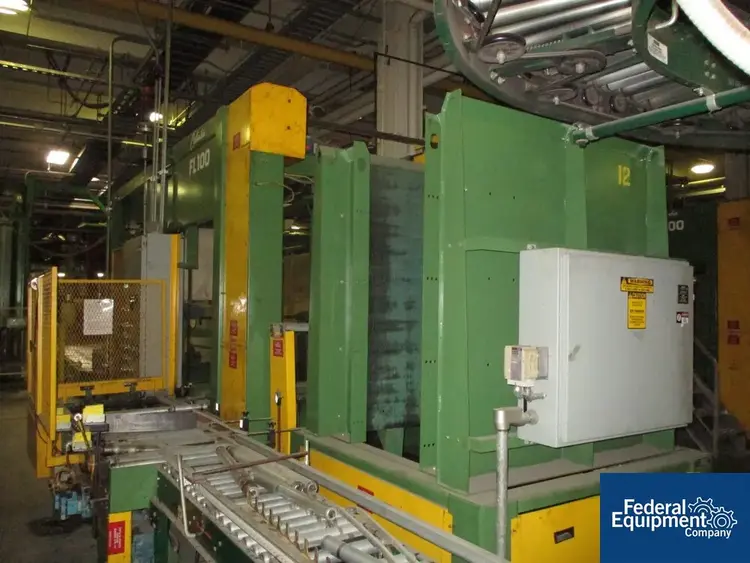

USED COLUMBIA FL-100

🏭 Manufacturer Information

Manufacturer: Columbia Machine, Inc.

Model: FL100

Type: Low-Level Full Case Palletizer

Control System: Allen-Bradley PLC

Safety Features: Full guarding around operational sections

📄 Description

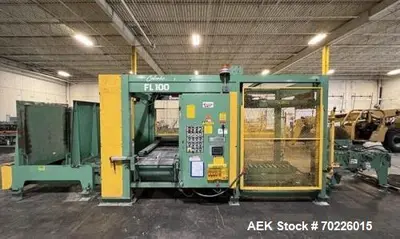

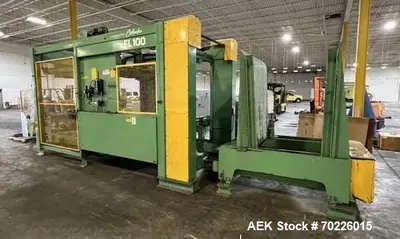

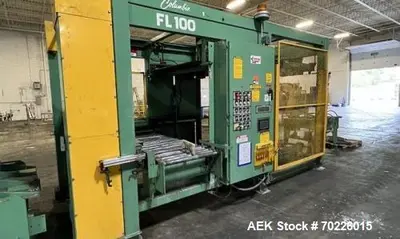

The Used Columbia Model FL100 is a low-level full case palletizer engineered for high-reliability case stacking in packaging, food, beverage, and industrial goods environments. This robust system is rated to handle up to 12 cases per minute, depending on material type and layout configuration. Designed for mid-to-high throughput palletizing, it features a powered roller case infeed conveyor, layer orientation and forming system, pusher bar, and discharge conveyor for efficient end-of-line automation.

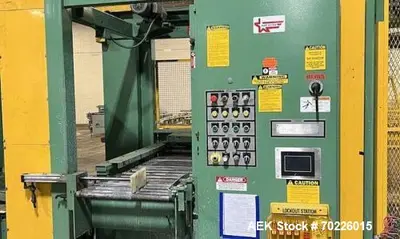

With a case size range of up to 22" L x 16" W x 18" H and load capacities of 600 lbs per tier and 3000 lbs per full pallet, the FL100 is built for heavy-duty use. The integrated empty pallet magazine accommodates pallets from 40" x 40" up to 48" x 48", providing flexibility for multiple packaging formats. Controlled by an Allen-Bradley PLC, this unit includes an intuitive operator interface and safety guarding for compliance and ease of use.

⚙️ Specifications

Model: FL100

Type: Low-Level Automatic Case Palletizer

Speed: Up to 12 cases per minute

Max Case Size:

Length: 22"

Width: 16"

Height: 18"

Max Load Capacity:

Per Tier: 600 lbs

Per Load: 3000 lbs

Max Pallet Dimensions: 48" L x 48" W x 65" H (including skid)

Pallet Magazine Capacity: Accepts 40" x 40" to 48" x 48" pallets

System Includes:

Powered roller case infeed conveyor

Case orientation and layer former

Pusher bar pallet loading system

Pallet discharge conveyor

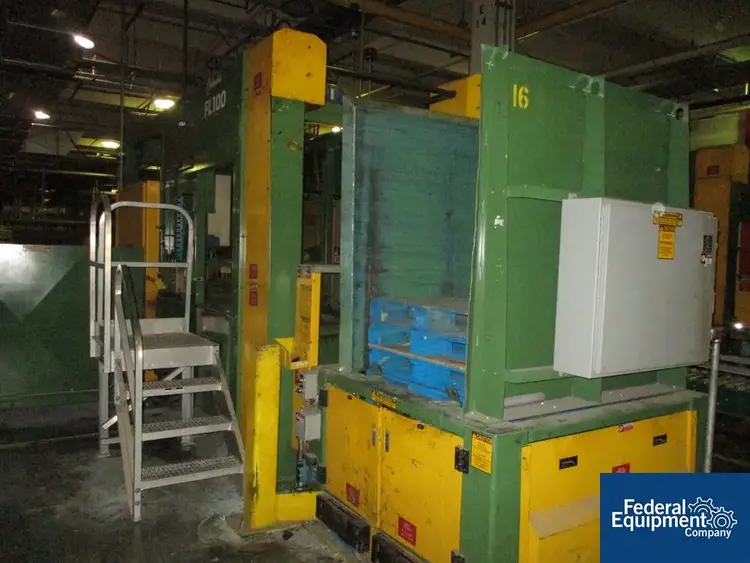

Empty pallet magazine

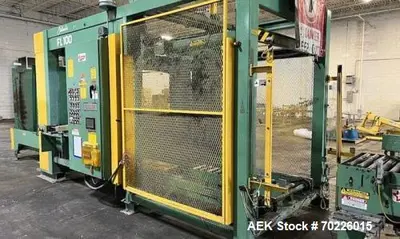

Safety guarding

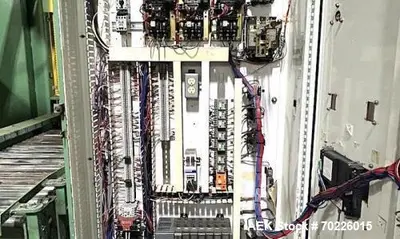

Control Panel: Allen-Bradley PLC

Mounting Type: Floor-mounted

🧴 Typical Applications

Packaged food and beverage cartons

Bottled product cases

Canned goods in corrugated boxes

Consumer packaged goods (CPG)

Industrial chemical or cleaning product cases

Pet care and animal feed packaging

Dairy or frozen product cartons

Health and hygiene cases

Bulk packaging lines

📦 Products This Machine Is Ideal For

Soup cans and beverage cases

Boxed cereals and dry goods

Plastic bottle cartons

Multi-pack shrink-wrapped cases

Corrugated consumer goods

Pet food and care product cartons

Chemical product cases

Retail-ready bulk product boxes

Snack and confectionery cases

Household supply cartons
