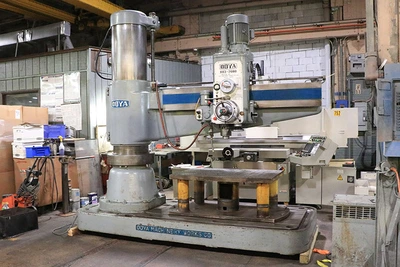

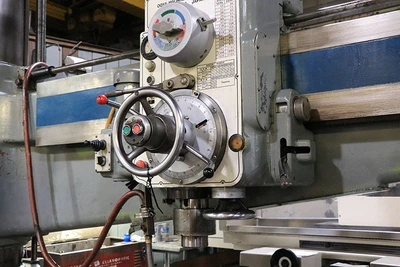

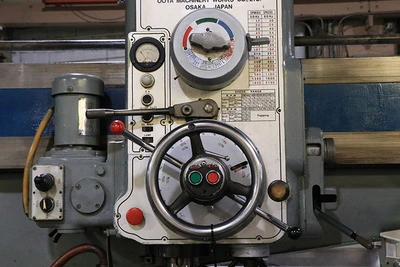

USED Ooya RE3-2000

6.5' Arm Lth 19" Col Dia Ooya RE3-2000 RADIAL DRILL, Power Elevation & Clamping, #5MT,T-Slotted, 10 HP,

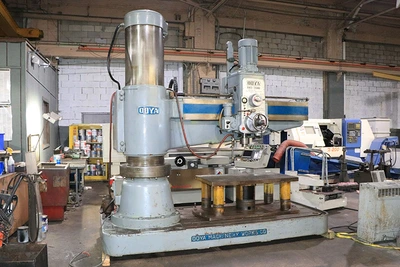

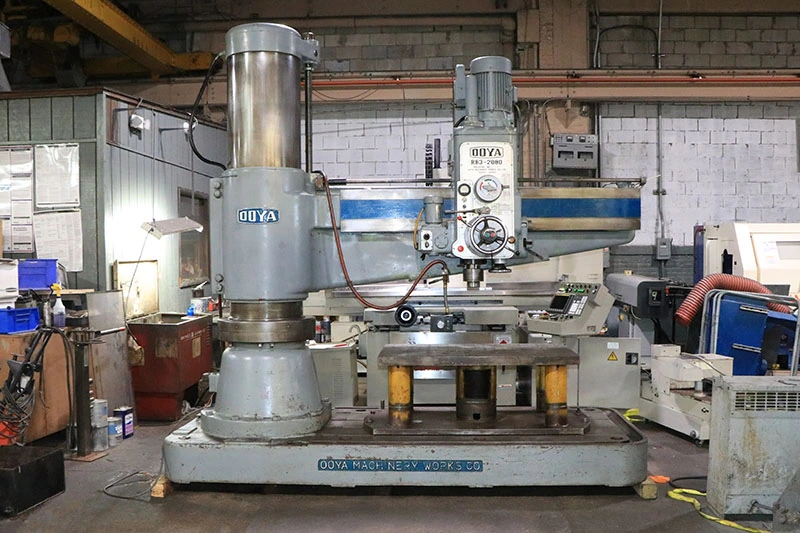

6.5' X 19" OOYA RADIAL DRILL

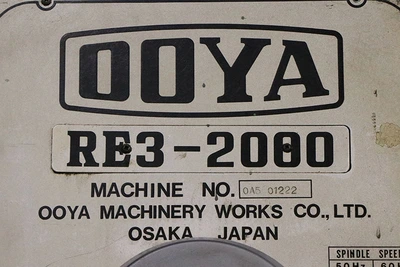

MODEL: RE3-2000,  S/N: OA5 01222

SPECIFICATIONS:

MAXIMUM DISTANCE SPINDLE TO COLUMN.............. 79-1/2"

MINIMUM DISTANCE SPINDLE TO COLUMN.............. 16-1/8"

DIAMETER OF COLUMN.............................. 19-11/16"

DRILL CAPACITY, MILD STEEL:

       DRILLING STEEL........................... 3"

       DRILLING CAST IRON....................... 3-5/8"

       BORING IN STEEL.......................... 7-7/8"

       BORING IN CAST IRON...................... 11"

TRAVERSE OF SPINDLE HEAD ON ARM................. 63-3/8"

VERTICAL TRAVEL OF ARM ......................... 32-1/4"

  MAX. DISTANCE BETWEEN SPINDLE AND BASEPLATE... 66-7/8"

  MIN. DISTANCE BETWEEN SPINDLE AND BASEPLATE... 19"

SPINDLE:

  TRAVERSE OF SPINDLE........................... 15-3/4"

  TAPER IN SPINDLE.............................. #5 MT

  RANGE OF SPINDLE SPEEDS(12)................... 20 - 2180 RPM

  RANGE OF FEEDS(18)............... .0015" - .125" PER REV

APPROXIMATE MACHINE DIMENSIONS .......... 121"L x 49-1/4"W

                                         x 117"H HEAD DOWN

APPROXIMATE MACHINE WEIGHT ..................... 15,000 LBS.

EQUIPPED WITH:

 POWER ELEVATION & CLAMPING OF ARM ON COLUMN

 POWER CLAMPING OF HEAD ON ARM

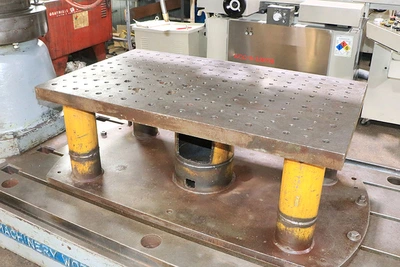

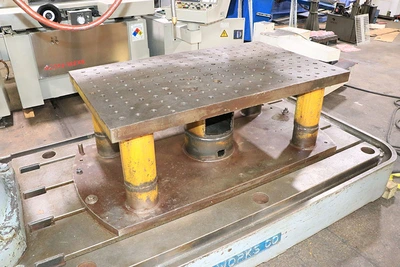

 TABLE

 T-SLOTTED BASE

 COOLANT SYSTEM

 10 HORSE POWER SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call David at 973-497-7570
