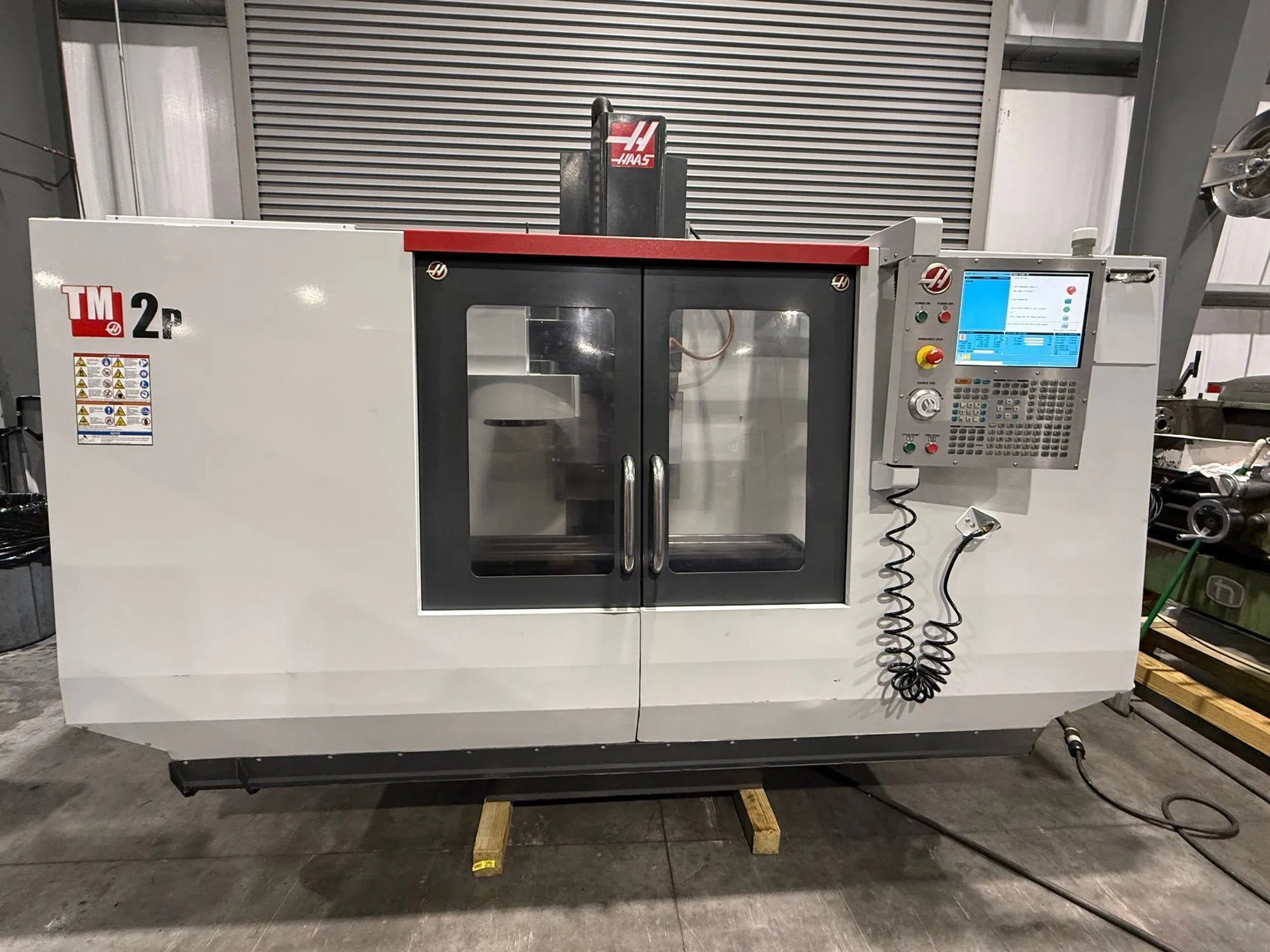

HAAS TM-2P CNC Vertical Machining Center 2012’ USA #8210
| X axis | 40" | 1,016 mm |
| Y axis | 16" | 406.4 mm |
| Z axis | 16" | 406.4 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 10 | 10 |
| Taper | CT or BT 40 | CT or BT 40 |
| Table-W | 10.5" | 266.7 mm |
| Table-L | 57.75" | 1,466.8 mm |
| Dimensions | 121’’ L x 75’’ W x 91’’ H | 121’’ L x 75’’ W x 91’’ H |
| Weight | 5200 Lbs. | 5200 Lbs. |
HAAS TM-2P CNC Vertical Machining Center 2012’ USA #8210
Reference # 8210
Model # TM-2P
Serial # 1099072
Year of manufacture- 10/2012’
Max Spindle speeds- 6000 R.P.M
Spindle taper- Cat-40
Table size- 57.8” x 10.5”
Max table weight- 1000 Lbs. (Evenly distributed)
Number of T slots- (3)
X axis travel- 40”
Y axis travel- 16”
Z axis travel- 16”
Spindle nose to table- 4” min / 20” Max
Max cutting feedrates- 400 I.P.M.
Rapids X,Y,Z- 400 I.P.M.
Tool changer capacity- 10
Tool to tool- 5.7 seconds
Chip to chip- 6.5 seconds
Machine lost its battery and had to had HFO Haas reload to the newest software (Version M18.29B), but lost its hour meter when reloaded
Machine options- DNC, Quick code, Pre-Orient tap, Advanced tool management, Intuitive Programing systems
(4) Leveling pads
Coolant tank (less pump)
7.5 H.P. Spindle motor
220 volt single phase or 240 volt 3 phase
Machine is currently wired for 240 3 phase
Machine weight- 5200 Lbs.
Machine dimensions- 121’’ L x 75’’ W x 91’’ H
Machine location – F.O.B. Sarasota, Florida
