DoALL #2013 20” Vertical Band Saw & Blade welder & Grinder 1993’ #8209
| Throat | 20" | 508 mm |
| Work Height | 13" | 330.2 mm |
| Power | 2 hp | 1.5 kW |
| Blade Width | 1" | 25.4 mm |
| Blade Length | 154" | 3,911.6 mm |
| FPM | 55-5200 | 55-5200 |
| Dimensions | 53” L x 45” W x 80” H | 53” L x 45” W x 80” H |
| Weight | 1500 Lbs. | 1500 Lbs. |

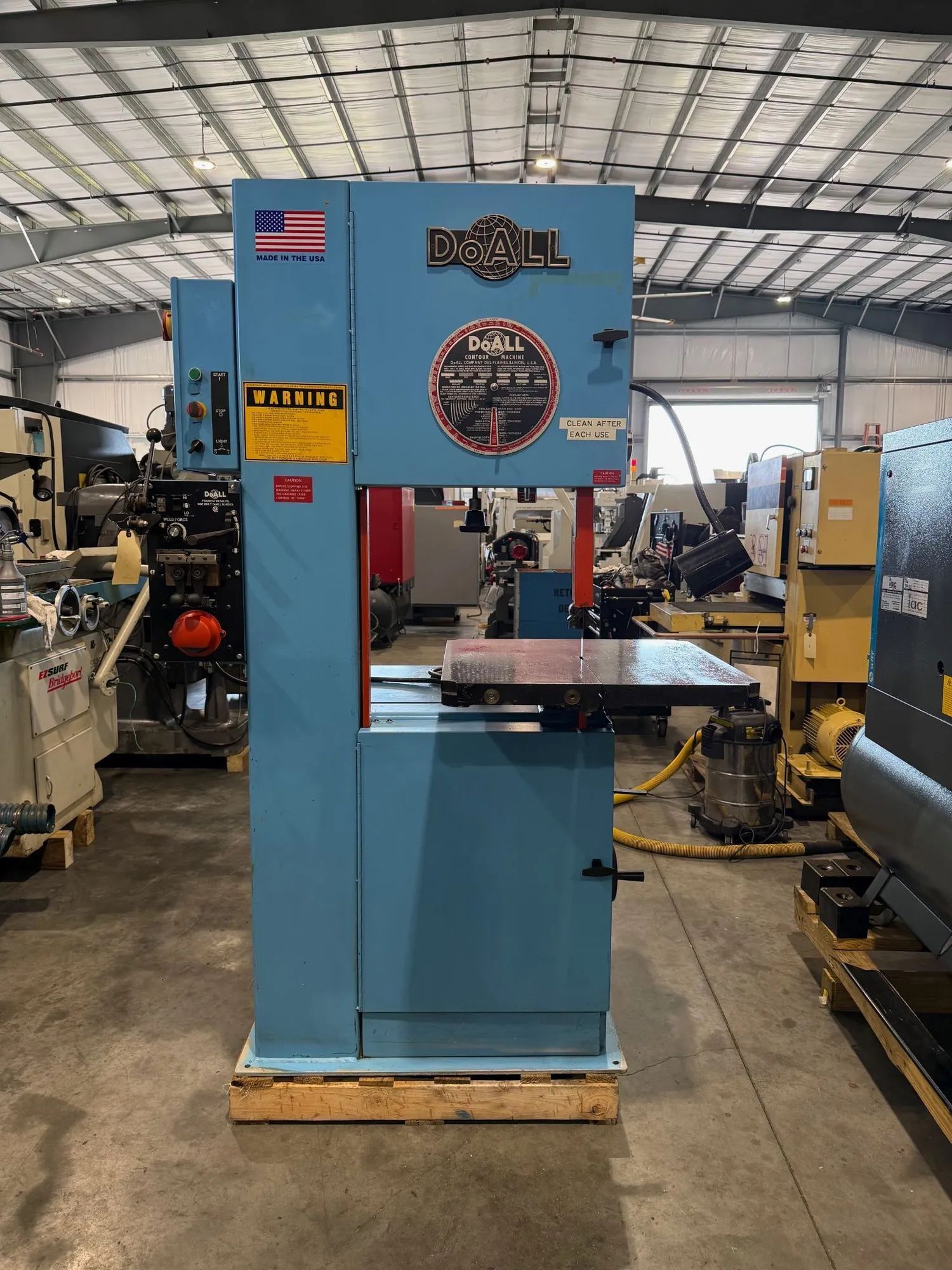

DoALL #2013 20” Vertical Band Saw & Blade welder & Grinder 1993’ #8209
Reference #8209
Model # 2013-V
Serial # 500-93278
Year of Manufacture- 1993
Throat size- 20”
Maximum work height- 13”
Variable band speeds, two ranges- 55 to 300 & 960 to 5,200 F.P.M
Band width, range- 1/16" to 1"
Upper bandwheel adjustment- 3”
Band length- 154"
File length- 153”
Table size- 26" x 26"
Table tilt- 45 degrees right & 10 degrees left
Machine only cut carbon , never cut metal
DoAll Blade Welder & Grinder and Shear
Dual range transmission
Work light
2 H.P. 3/60/230 blade drive motor and electrical controls
Machine is wired for 230 volt operation.
Machine weight- 1,500 Lbs.
Machine dimensions- 53” L x 45” W x 80” H
Machine location- F.O.B. Sarasota, Florida
